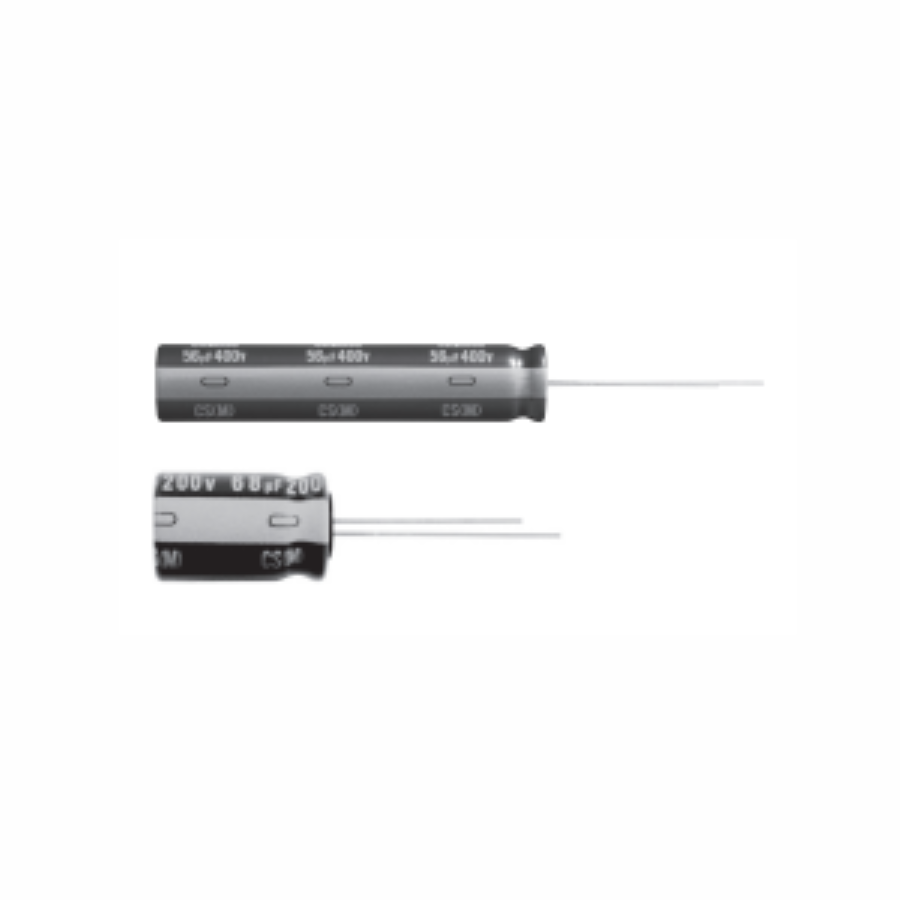

UCS2E820MHD
Manufacturer:
Nichicon
Mfr.Part #:
UCS2E820MHD
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,16.00mm×20.00mm Through Hole 82 µF 20 % 250 V
| Parameter | Value |
|---|---|
| Capacitance | 82 µF |
| Voltage Rating (DC) | 250 V |
| Tolerance | 20 % |
| Life (Hours) | 10000 Hours |
| Ripple Current | 1.38 A |
| Height - Seated (Max) | 21.5 mm |
| Length | 20 mm |
| Termination | Radial |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dissipation Factor | 0.2 % |
| Height | 20 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 7.5 mm |
| Voltage | 250 V |
| Ripple Current (AC) | 1.38 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 100 kHz |
Stock: 229
Distributors
pcbx
pcbxUnit Price$0.96989
Ext.Price$0.96989
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96989 | $0.96989 |
| 10 | $0.80506 | $8.05060 |
| 25 | $0.73786 | $18.44650 |
| 50 | $0.67627 | $33.81350 |
| 100 | $0.61983 | $61.98300 |
| 300 | $0.59690 | $179.07000 |
| 500 | $0.57482 | $287.41000 |
| 1000 | $0.55387 | $553.87000 |
