UCY2C331MHD
Manufacturer:
Nichicon
Mfr.Part #:
UCY2C331MHD
Datasheet:
Description:

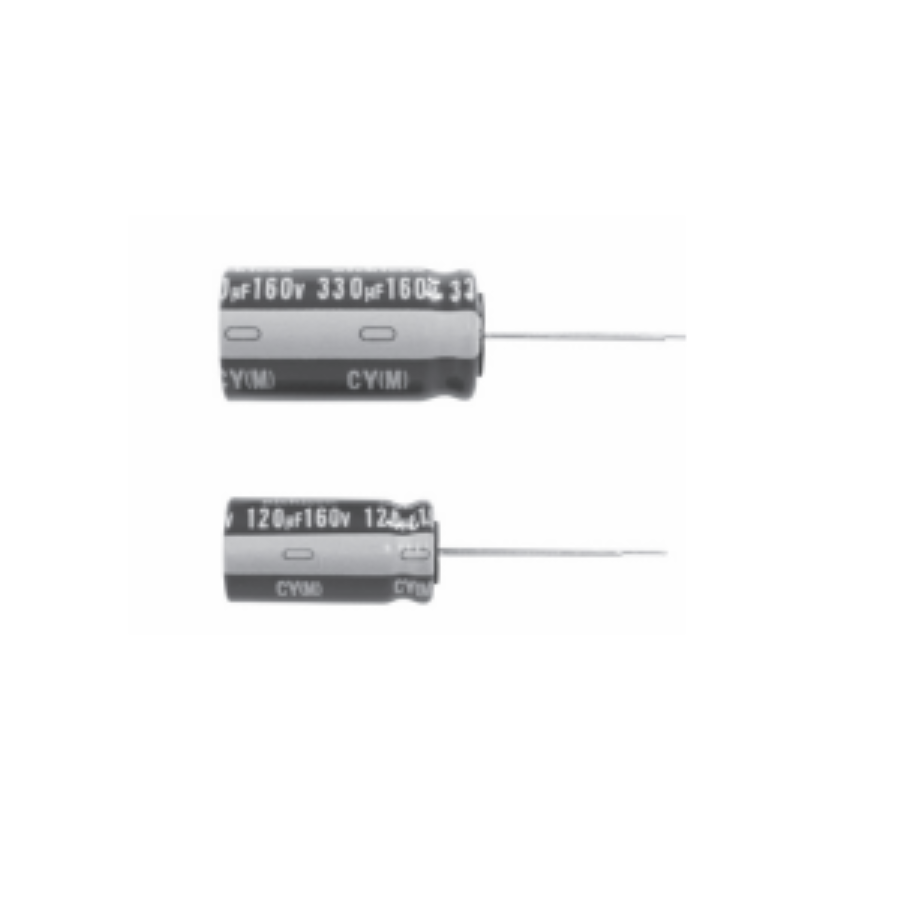

Aluminum Electrolytic Capacitors Radial,16.00mm×31.50mm Through Hole 330 µF 20 % 160 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 160 V |
| Tolerance | 20 % |
| Life (Hours) | 10000 Hours |
| Ripple Current | 1.51 A |
| Height - Seated (Max) | 33 mm |
| Length | 31.5 mm |
| Termination | Radial |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dissipation Factor | 0.2 % |
| Packaging | Bulk |
| Voltage Rating | 160 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 7.493 mm |
| Features | General Purpose |
| Ripple Current (AC) | 1.51 A |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 1.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.02 A @ 100 kHz |
