UHC1V101MPD
Manufacturer:
Nichicon
Mfr.Part #:
UHC1V101MPD
Datasheet:
Description:

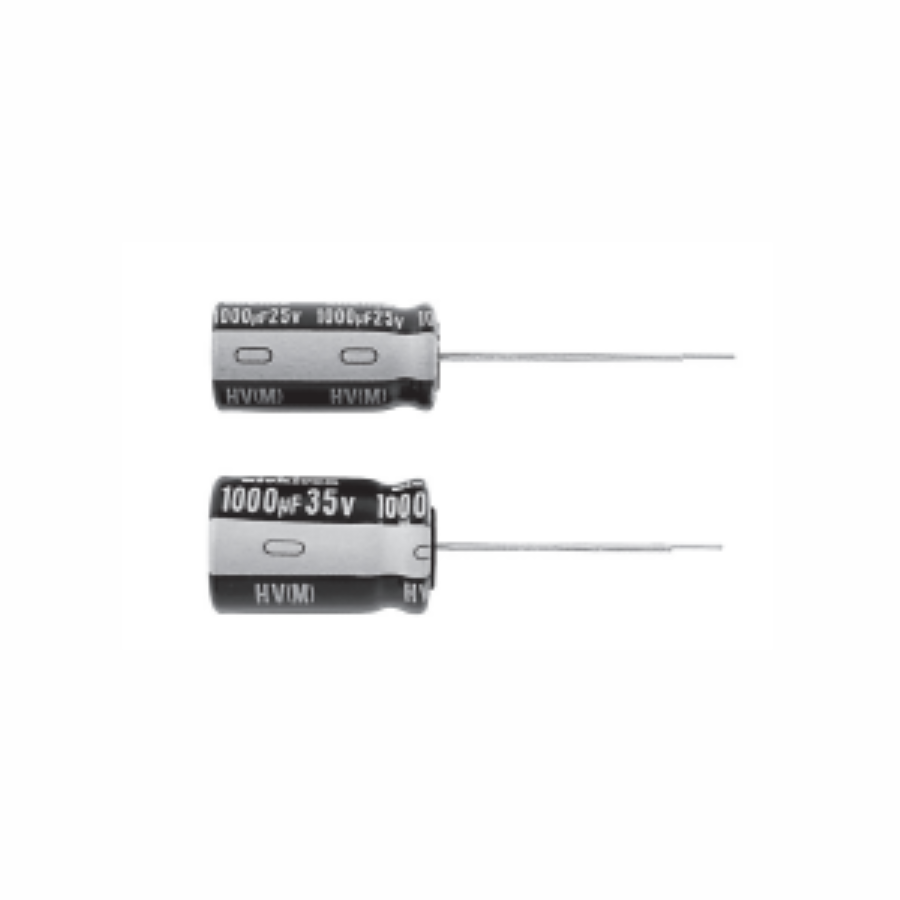

Aluminum Electrolytic Capacitors Radial,8.00mm×11.50mm Through Hole 100 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 910 mA |
| Height - Seated (Max) | 13 mm |
| Length | 11.5 mm |
| Termination | Radial |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 35 µA |
| Dissipation Factor | 0.1 % |
| Height | 11.5 mm |
| Packaging | Bulk |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 3.5 mm |
| Impedance | 48 mΩ |
| Ripple Current @ Low Frequency | 427.7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 100 kHz |
