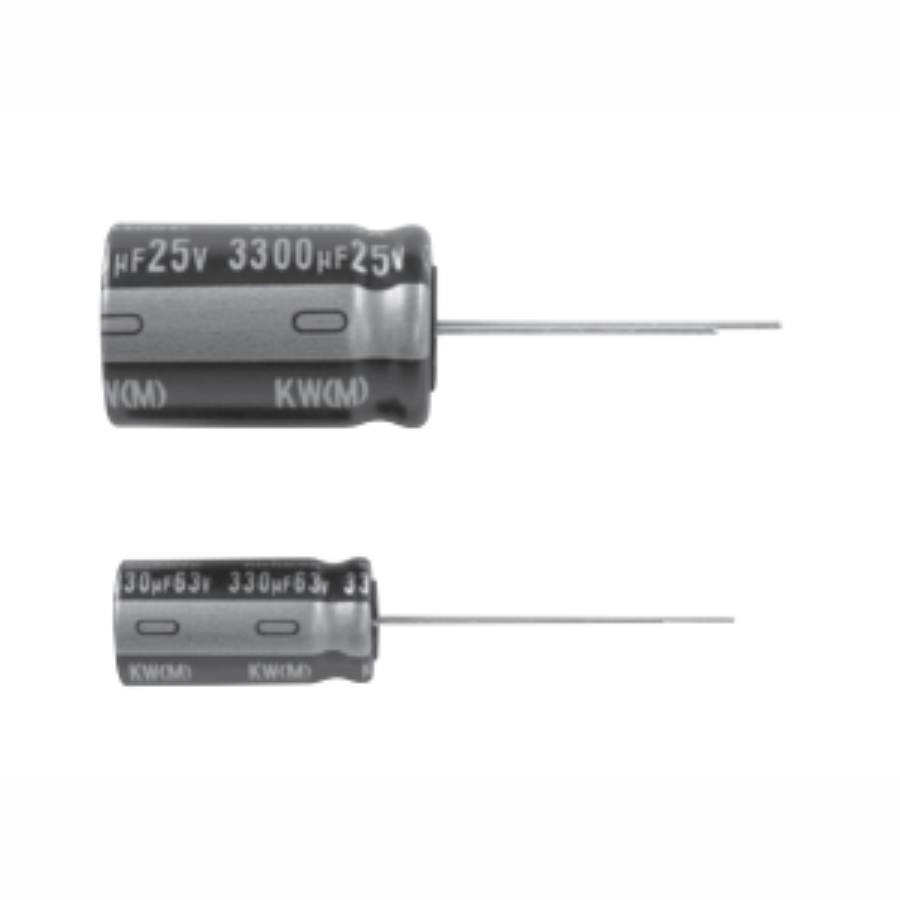

UKW1C471MPD
Manufacturer:
Nichicon
Mfr.Part #:
UKW1C471MPD
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,8.00mm×11.50mm Through Hole 470 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 420 mA |
| Height - Seated (Max) | 11.5 mm |
| Length | 11.5 mm |
| Termination | Radial |
| Diameter | 8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 225.6 µA |
| Dissipation Factor | 0.2 % |
| Height | 11.5 mm |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 3.5052 mm |
| Ripple Current (AC) | 420 mA |
| Lead/Base Style | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
Stock: 219
Distributors
pcbx
pcbxUnit Price$0.22474
Ext.Price$0.22474
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22474 | $0.22474 |
| 10 | $0.20022 | $2.00220 |
| 50 | $0.17837 | $8.91850 |
| 100 | $0.15530 | $15.53000 |
| 500 | $0.13522 | $67.61000 |
| 1000 | $0.12943 | $129.43000 |
| 3000 | $0.12389 | $371.67000 |
| 5000 | $0.11858 | $592.90000 |
