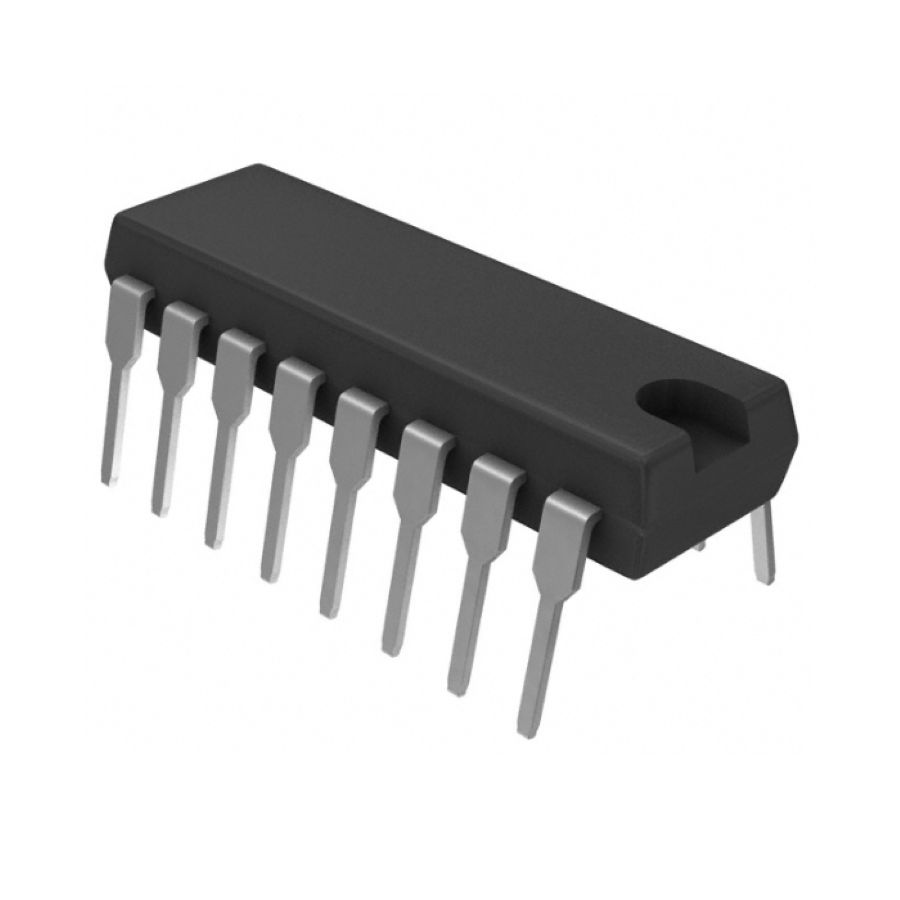

ULN2066B
Manufacturer:
STMicroelectronics
Mfr.Part #:
ULN2066B
Datasheet:
Description:
BJTs PowerDIP-16 Through Hole 4 NPN (Quad) 4.3 W Collector Emitter Voltage (VCEO):50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 20 mm |
| Width | 7.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 16 |
| Height | 5.1 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| Number of Elements | 4 |
| Current Rating | 1.5 A |
| Output Current | 1.5 A |
| Output Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Power Dissipation | 4.3 W |
| Number of Channels | 4 |
| Max Collector Current | 1.75 A |
| Continuous Collector Current | 1.75 A |
| Max Input Voltage | 30 V |
| Collector Emitter Voltage (VCEO) | 50 V |
| Max Output Voltage | 50 V |
| Collector Emitter Saturation Voltage | 1.4 V |
| Max Cutoff Collector Current | 1.75 A |
| Transistor Type | 4 NPN (Quad) |
Stock: 2
Distributors
pcbx
pcbxUnit Price$10.90320
Ext.Price$10.90320
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.90320 | $10.90320 |
| 10 | $9.46022 | $94.60220 |
| 25 | $8.58067 | $214.51675 |
| 50 | $8.24605 | $412.30250 |
| 100 | $7.92442 | $792.44200 |
