ULN2802A
Manufacturer:
STMicroelectronics
Mfr.Part #:
ULN2802A
Datasheet:
Description:

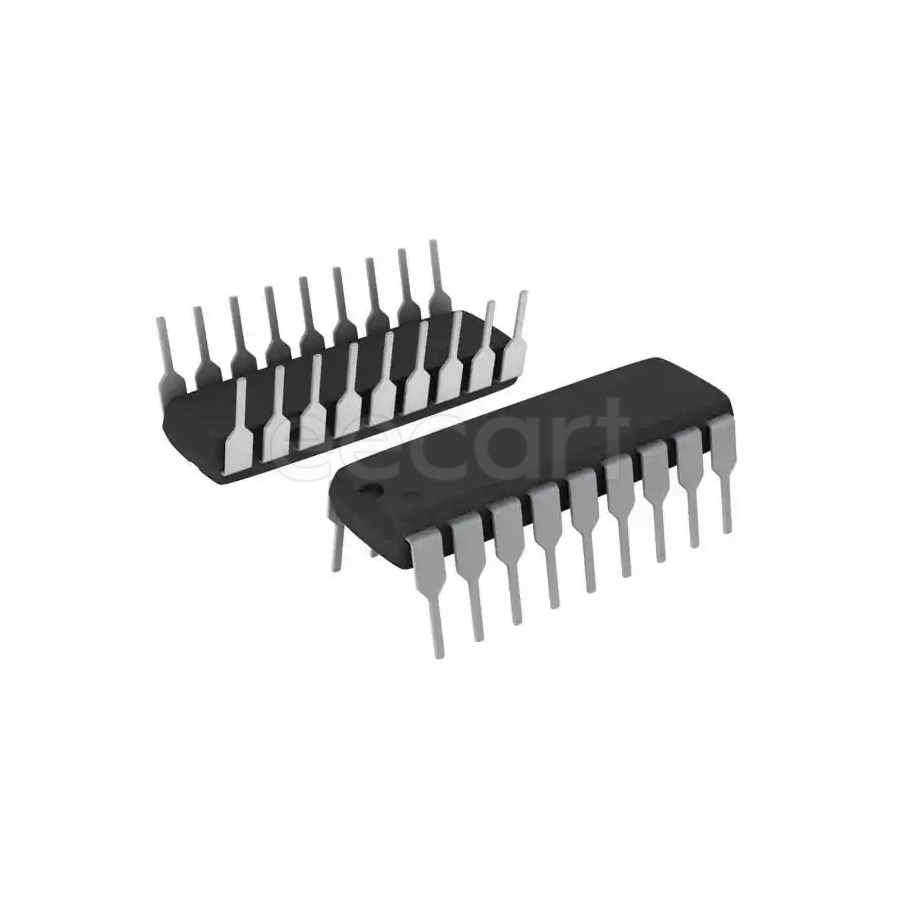

Transistors DIP-18 Through Hole Max Collector Current:500 mA Max Power Dissipation:2.25 W
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 23.24 mm |
| Width | 7.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 18 |
| Height | 3.68 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Weight | 1.270087 g |
| Number of Elements | 8 |
| Current Rating | 500 mA |
| Output Current | 500 mA |
| Output Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 3 months ago) |
| Max Power Dissipation | 2.25 W |
| Number of Channels | 8 |
| Max Collector Current | 500 mA |
| Collector Emitter Breakdown Voltage | 50 V |
| Continuous Collector Current | 500 mA |
| Max Input Voltage | 30 V |
| Collector Emitter Voltage (VCEO) | 50 V |
| Max Output Voltage | 50 V |
| Collector Emitter Saturation Voltage | 1.1 V |
| Schedule B | 8541290080 |
| Packaging | Tube |
