91302-55-067R2M
Manufacturer:
UMAX
Mfr.Part #:
91302-55-067R2M
Datasheet:
Description:

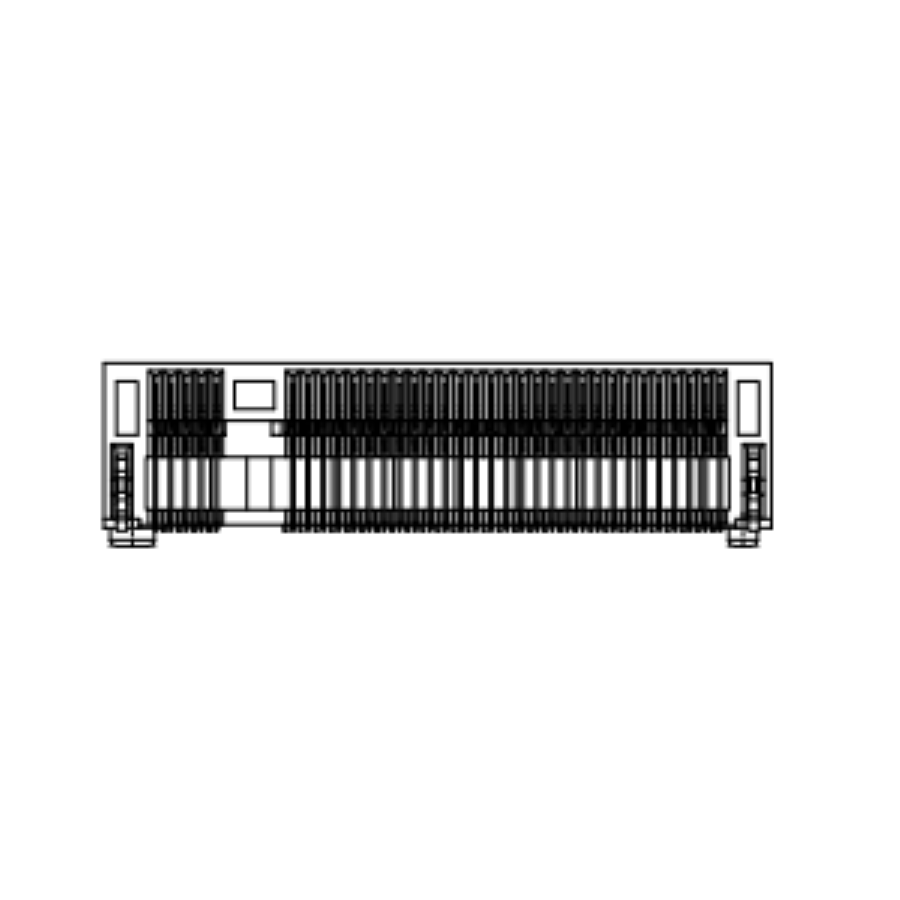

Edgeboard Connectors SMD/SMT Female Right Angle Number of Positions:67
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Gold Flash over Nickel |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 500 µm |
| Gender | Female |
| Contact Type | |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Card Thickness | 800 µm |
| Housing Material | Thermoplastic (TP) |
| Mounting Angle | Right Angle |
| Card Type | M.2 (NGFF) Mini Card |
Stock: 1111
Distributors
pcbx
pcbxUnit Price$0.92995
Ext.Price$0.92995
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92995 | $0.92995 |
| 10 | $0.73920 | $7.39200 |
| 25 | $0.67210 | $16.80250 |
| 50 | $0.61109 | $30.55450 |
| 100 | $0.55562 | $55.56200 |
| 300 | $0.52795 | $158.38500 |
| 500 | $0.50165 | $250.82500 |
| 1000 | $0.47666 | $476.66000 |
