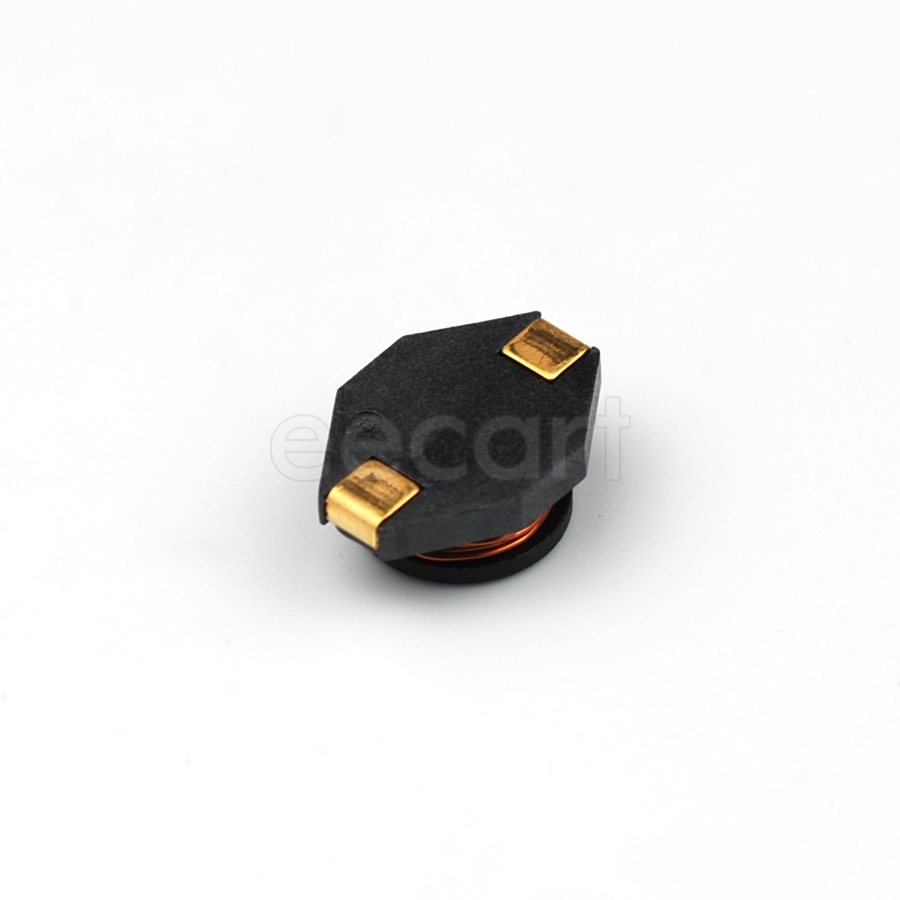

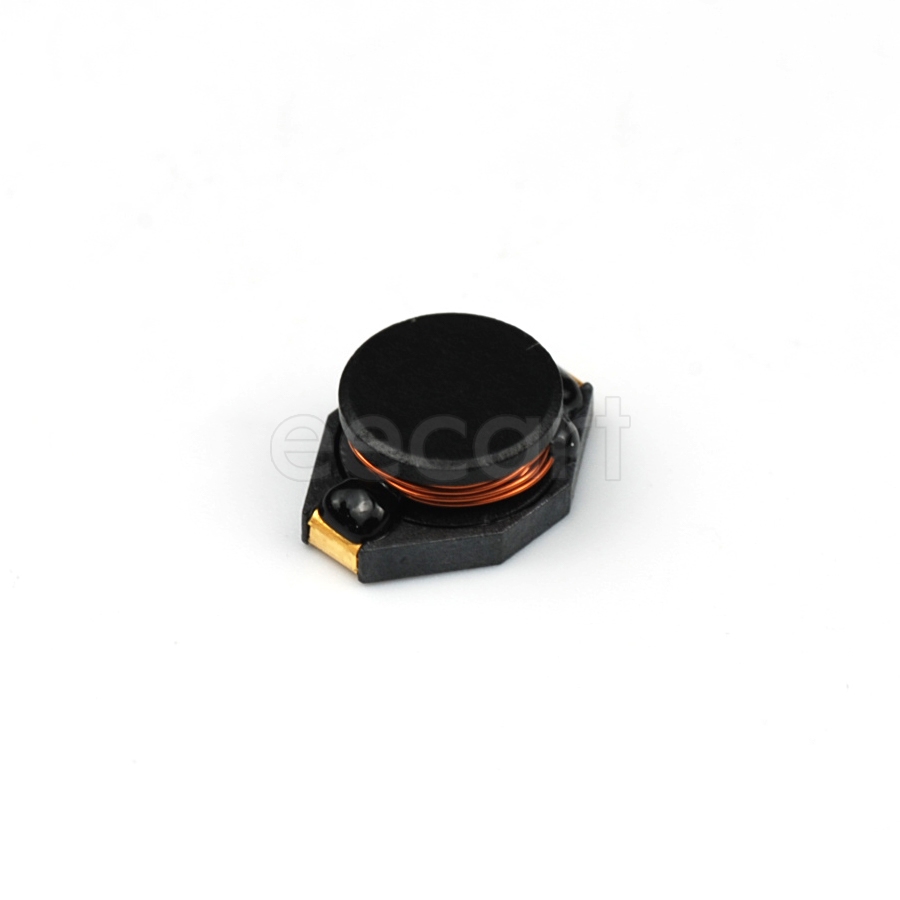

UP2UC-2R2-R
Manufacturer:
Eaton
Mfr.Part #:
UP2UC-2R2-R
Datasheet:
Description:
Fixed Inductors 12.70mmL×9.30mmW×5.21mmH SMD/SMT 2.2 µH 20 % 6.1 A 12 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.21 mm |
| Length | 12.7 mm |
| Width | 9.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 5.21 mm |
| Packaging | Reel |
| Depth | 9.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 1.814369 g |
| Self Resonant Frequency | 80 MHz |
| Type | Wirewound |
| Current | 1.5 A |
| Current Rating | 6.1 A |
| DC Resistance (DCR) | 12 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| Max DC Current | 7 A |
| DC Current | 6.1 A |
| Saturation Current | 1.4 A |
Stock: 371
Distributors
pcbx
pcbxUnit Price$0.87611
Ext.Price$0.87611
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87611 | $0.87611 |
| 10 | $0.72018 | $7.20180 |
| 25 | $0.67467 | $16.86675 |
| 50 | $0.63204 | $31.60200 |
| 100 | $0.59210 | $59.21000 |
| 300 | $0.56231 | $168.69300 |
| 500 | $0.53403 | $267.01500 |
