UPW1J331MHD
Manufacturer:
Nichicon
Mfr.Part #:
UPW1J331MHD
Datasheet:
Description:

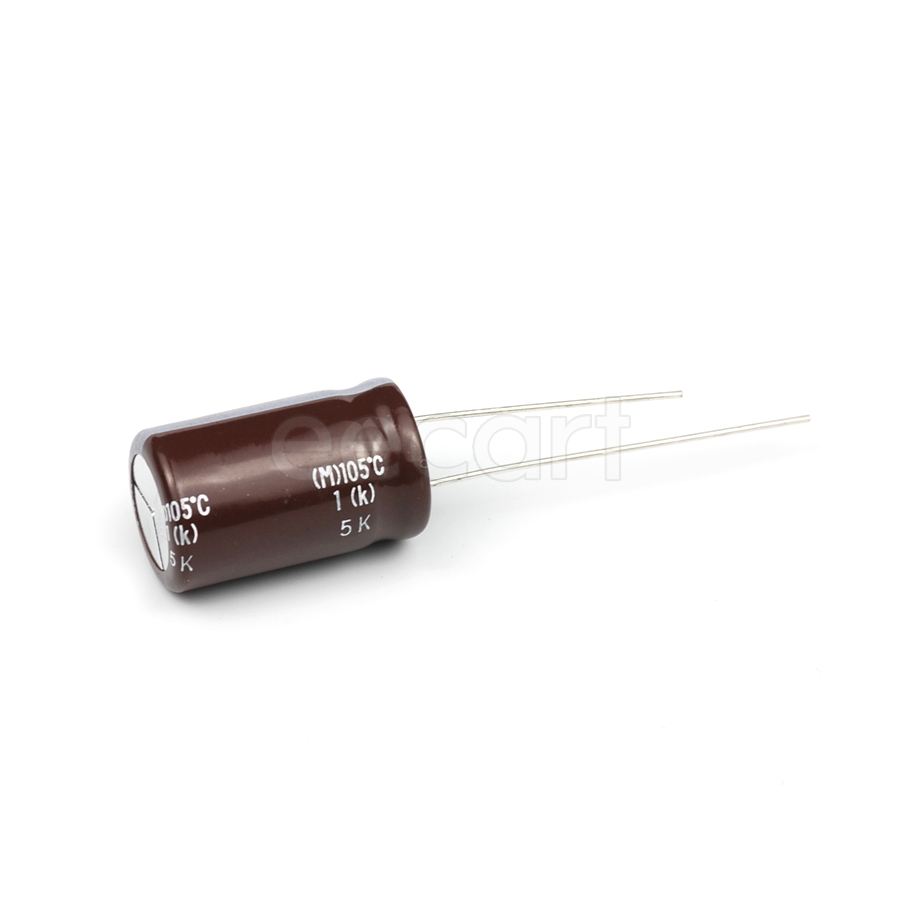

Aluminum Electrolytic Capacitors 12.50mmD×20.00mmH Through Hole 330 µF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 170 mΩ |
| Life (Hours) | 7000 Hours |
| Ripple Current | 1.285 A |
| Height - Seated (Max) | 20 mm |
| Length | 20 mm |
| Termination | Radial |
| Diameter | 12.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 623.7 µA |
| Dissipation Factor | 0.09 % |
| Height | 20 mm |
| Packaging | Bulk |
| Voltage Rating | 63 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 600 µm |
| Lead Pitch | 5 mm |
| Voltage | 63 V |
| Dielectric Material | Aluminium |
| Impedance | 85 mΩ |
| Ripple Current (AC) | 1.29 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 1.29 A @ 100 kHz |
| Ripple Current @ Low Frequency | 838.5 mA @ 120 Hz |
Stock: 1327
Distributors
pcbx
pcbxUnit Price$0.64462
Ext.Price$0.64462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64462 | $0.64462 |
| 10 | $0.33940 | $3.39400 |
| 25 | $0.30176 | $7.54400 |
| 50 | $0.26829 | $13.41450 |
| 100 | $0.23853 | $23.85300 |
| 300 | $0.22803 | $68.40900 |
| 500 | $0.21800 | $109.00000 |
| 1000 | $0.20518 | $205.18000 |
| 3000 | $0.20173 | $605.19000 |
| 5000 | $0.19834 | $991.70000 |
| 10000 | $0.18552 | $1855.20000 |
