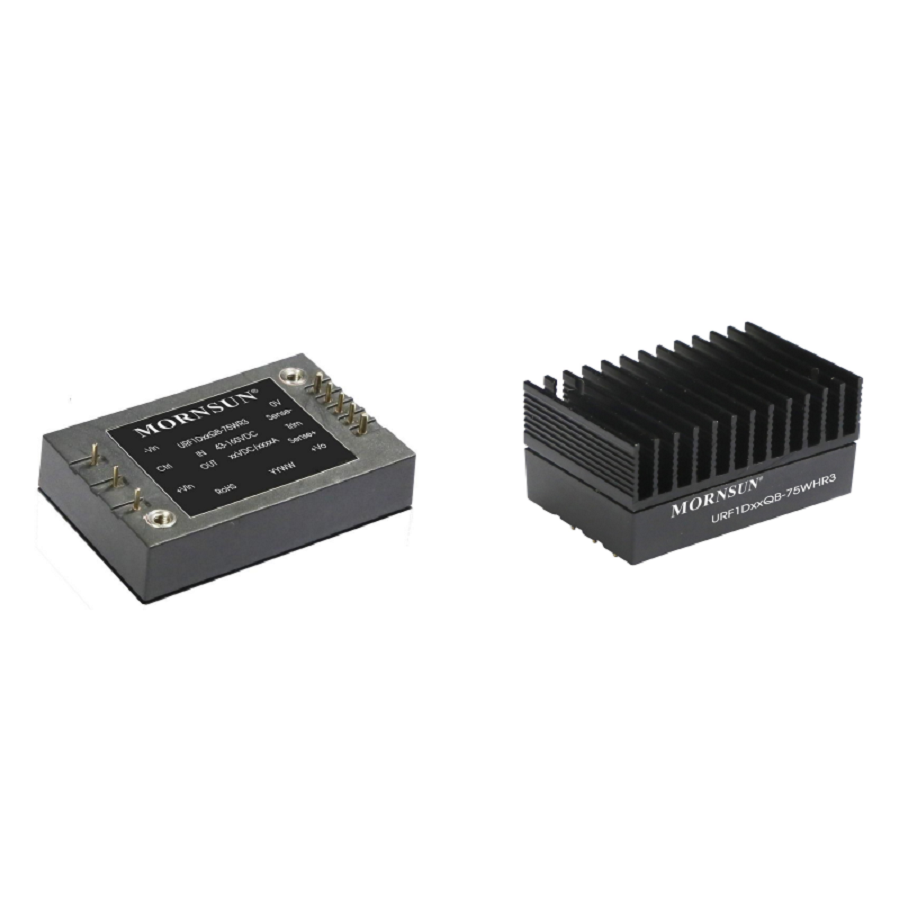

URF1D12QB-75WHR3
Manufacturer:
MORNSUN
Mfr.Part #:
URF1D12QB-75WHR3
Datasheet:
Description:
DC to DC Converters Module Through Hole Nominal Input Voltage:110 V Min Input Voltage:43 V Max Input Voltage:160 V 89 %
| Parameter | Value |
|---|---|
| Length | 60.8 mm |
| Width | 39.2 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 27.8 mm |
| Packaging | Box |
| RoHS | Compliant |
| Min Input Voltage | 43 V |
| Max Input Voltage | 160 V |
| Isolation Voltage | 2.1 kV |
| Output Power | 75 W |
| Efficiency | 89 % |
| Nominal Input Voltage | 110 V |
| Output Current-Channel 1 | 6.25 A |
| Output Voltage-Channel 1 | 12 V |
