USBR-A-D-S-O-TH
Manufacturer:
Samtec
Mfr.Part #:
USBR-A-D-S-O-TH
Datasheet:
Description:

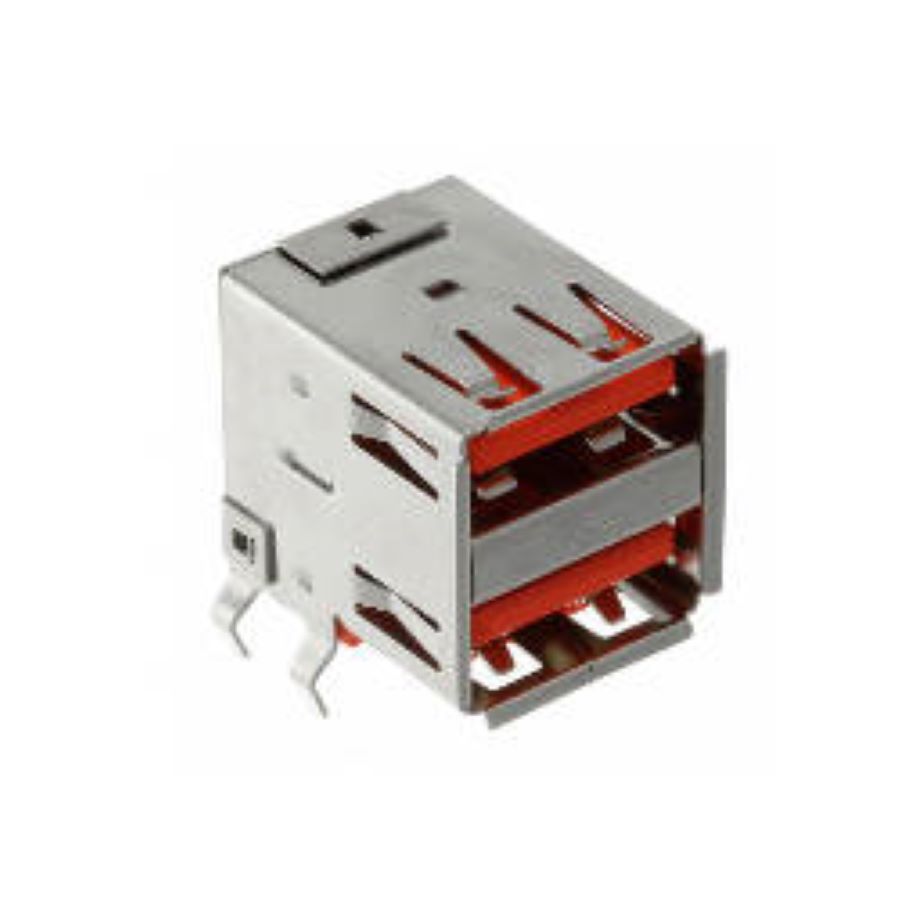

USB Connectors Through Hole USB-A (USB TYPE-A) Jack (Female) USB 2.0
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -50 °C |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Type | USB-A (USB TYPE-A) |
| Number of Terminals | 8 |
| Orientation | Right Angle |
| Gender | Jack (Female) |
| Number of Contacts | 8 |
| USB Standard | USB 2.0 |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Max Voltage Rating (AC) | 30 V |
| Mounting Angle | Right Angle |
Stock: 565
Distributors
pcbx
pcbxUnit Price$1.91504
Ext.Price$1.91504
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.91504 | $1.91504 |
| 10 | $1.80929 | $18.09290 |
| 25 | $1.70938 | $42.73450 |
| 50 | $1.61496 | $80.74800 |
| 100 | $1.31403 | $131.40300 |
| 300 | $1.06520 | $319.56000 |
| 500 | $0.86348 | $431.74000 |
| 1000 | $0.76345 | $763.45000 |
| 3000 | $0.71169 | $2135.07000 |
| 5000 | $0.66343 | $3317.15000 |
| 10000 | $0.59674 | $5967.40000 |
