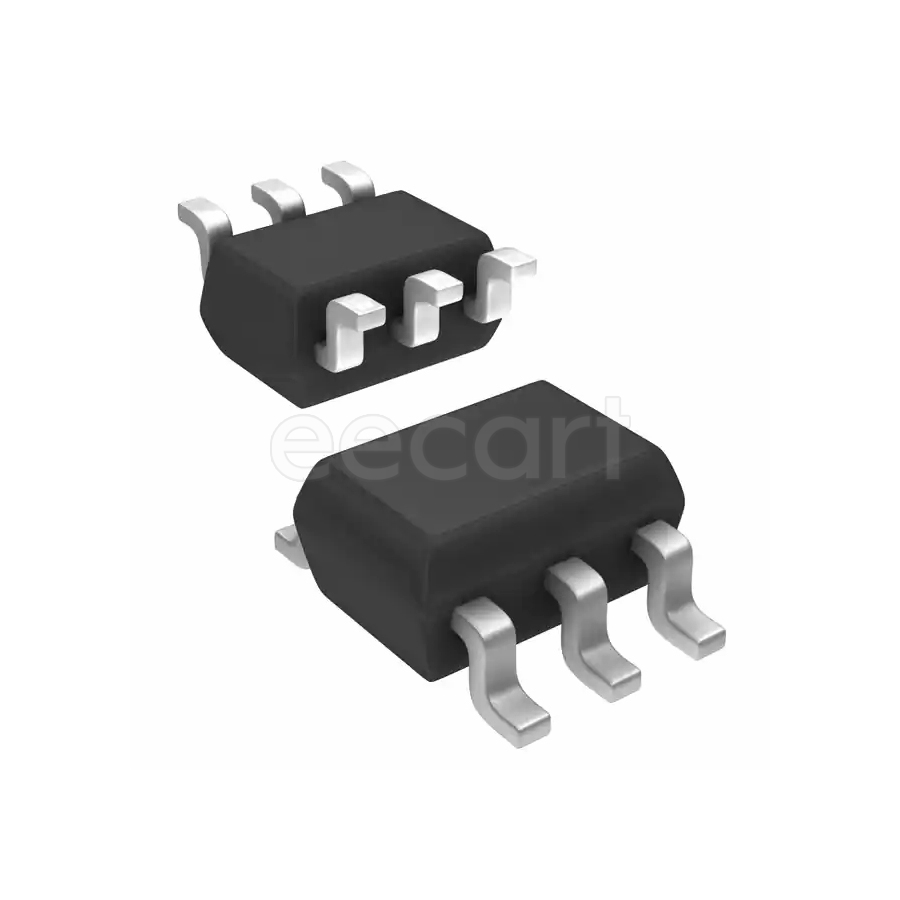

USBUF02W6
Manufacturer:
STMicroelectronics
Mfr.Part #:
USBUF02W6
Datasheet:
Description:
EMI / RFI Filters SOT-323 SMD/SMT RC (Pi) 2nd 47 pF -28 dB 22 Ω
| Parameter | Value |
|---|---|
| Capacitance | 47 pF |
| Tolerance | 10 % |
| Length | 2.2 mm |
| Width | 1.35 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1.0922 mm |
| Packaging | Reel |
| Depth | 2.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| DC Resistance (DCR) | 33 Ω |
| Test Frequency | 30 MHz |
| Bandwidth | 80 MHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Number of Channels | 2 |
| Number of Lines | 2 |
| Min Breakdown Voltage | 6.1 V |
| ESD Protection | Yes |
| Attenuation Value | -28 dB |
| Chemistry/Technology | RC (Pi) |
| Channel Resistance | 22 Ω |
| Filter Order | 2nd |
Stock: 2166
Distributors
pcbx
pcbxUnit Price$0.23011
Ext.Price$0.23011
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23011 | $0.23011 |
| 10 | $0.20308 | $2.03080 |
| 50 | $0.17923 | $8.96150 |
| 100 | $0.15366 | $15.36600 |
| 500 | $0.13173 | $65.86500 |
| 1000 | $0.12612 | $126.12000 |
| 3000 | $0.12074 | $362.22000 |
| 5000 | $0.11329 | $566.45000 |
