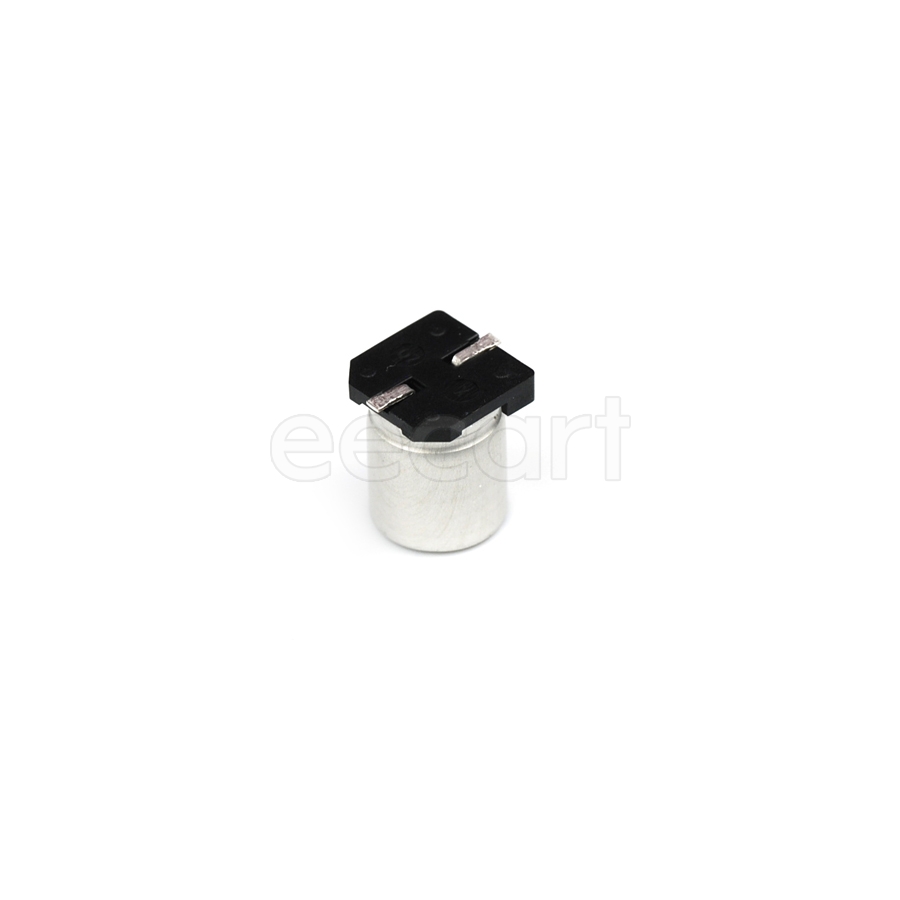

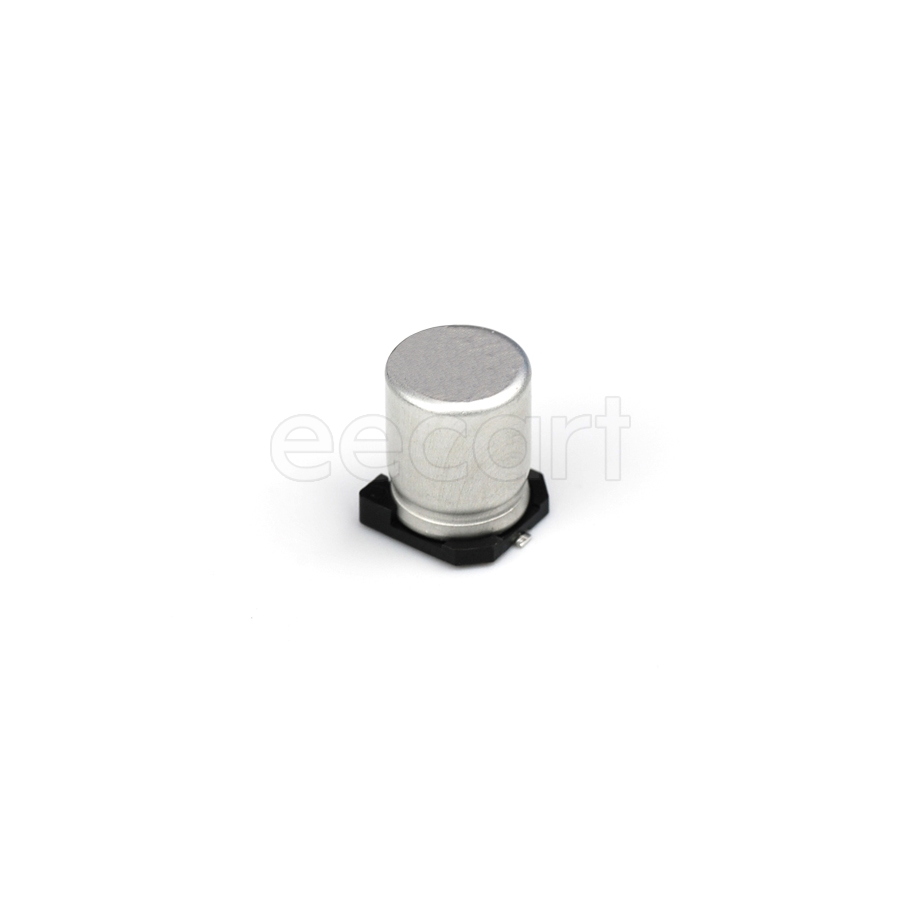

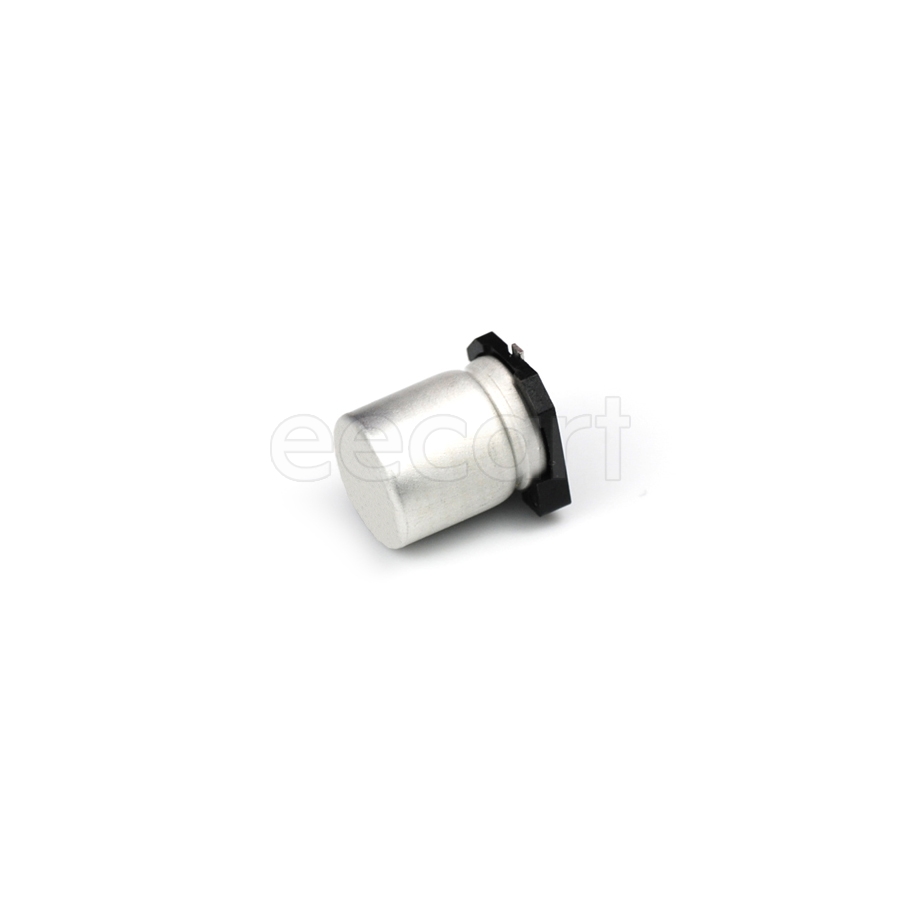

UUB2D4R7MNL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UUB2D4R7MNL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors 8.00mmD×10.00mmH SMD/SMT 4.7 µF 20 % 200 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 200 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 36 mA |
| Height - Seated (Max) | 8 mm |
| Length | 10 mm |
| Termination | SMD/SMT |
| Diameter | 8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 100 µA |
| Height | 10 mm |
| Packaging | Reel |
| Voltage Rating | 200 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | Polar |
| Features | General Purpose |
| Ripple Current (AC) | 36 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
Stock: 173
Distributors
pcbx
pcbxUnit Price$0.50099
Ext.Price$0.50099
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50099 | $0.50099 |
| 10 | $0.24023 | $2.40230 |
| 25 | $0.23167 | $5.79175 |
| 50 | $0.22341 | $11.17050 |
| 100 | $0.21544 | $21.54400 |
| 300 | $0.18707 | $56.12100 |
| 500 | $0.16244 | $81.22000 |
| 1000 | $0.14534 | $145.34000 |
| 3000 | $0.13743 | $412.29000 |
| 5000 | $0.12995 | $649.75000 |
| 10000 | $0.12311 | $1231.10000 |
