UUD0J221MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UUD0J221MCL1GS
Datasheet:
Description:

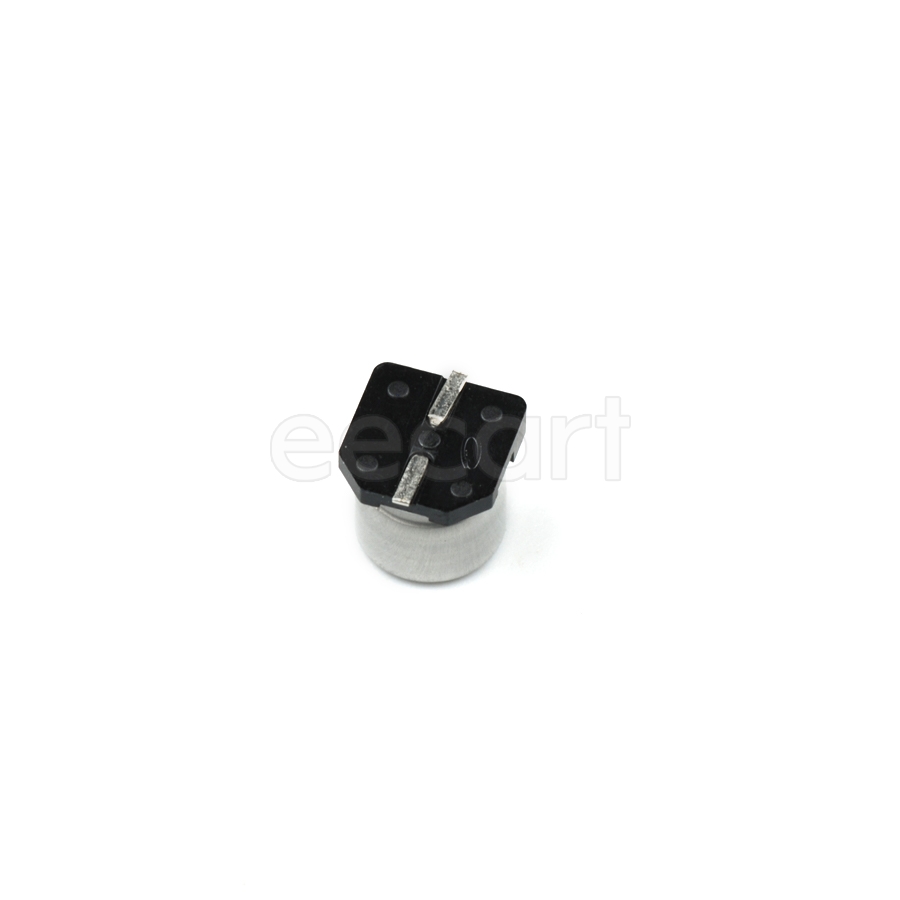

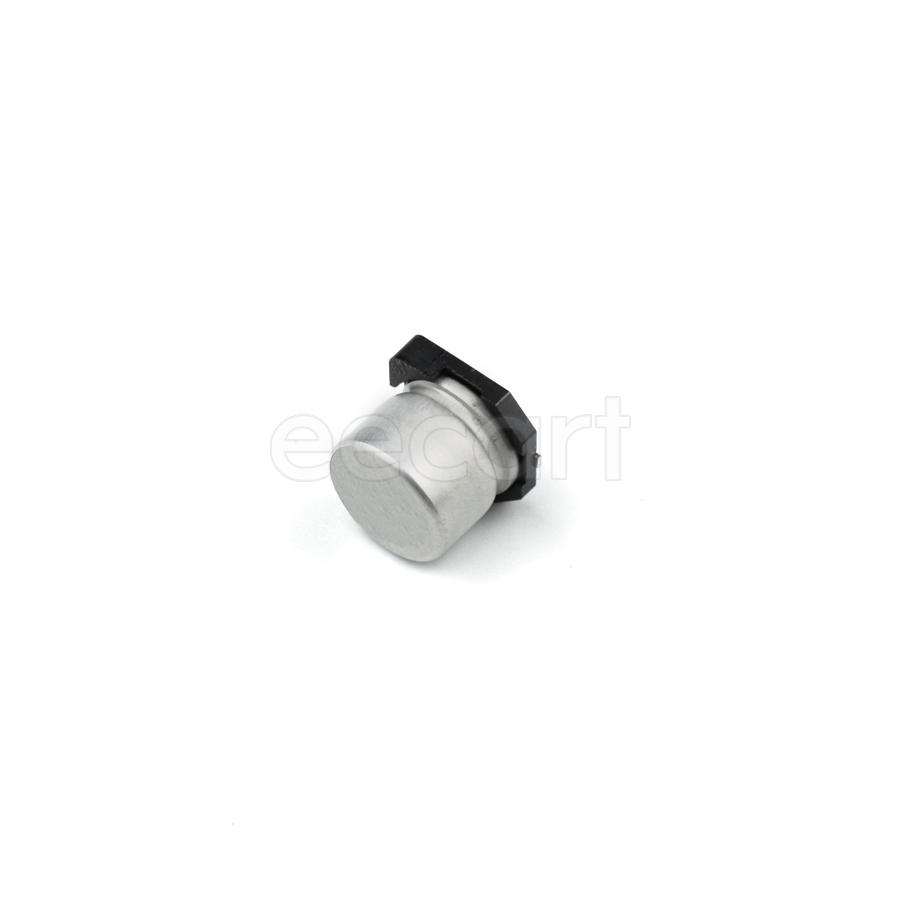

Aluminum Electrolytic Capacitors 6.30mmD×5.80mmH SMD/SMT 220 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 230 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.26 % |
| Height | 5.8 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 2.2 mm |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Impedance | 440 mΩ |
| Ripple Current (AC) | 230 mA |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
Stock: 735
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.15303 | $1.53030 |
| 50 | $0.14468 | $7.23400 |
| 100 | $0.13679 | $13.67900 |
| 500 | $0.10687 | $53.43500 |
| 1000 | $0.09660 | $96.60000 |
| 3000 | $0.08867 | $266.01000 |
| 5000 | $0.08139 | $406.95000 |
| 10000 | $0.07694 | $769.40000 |
