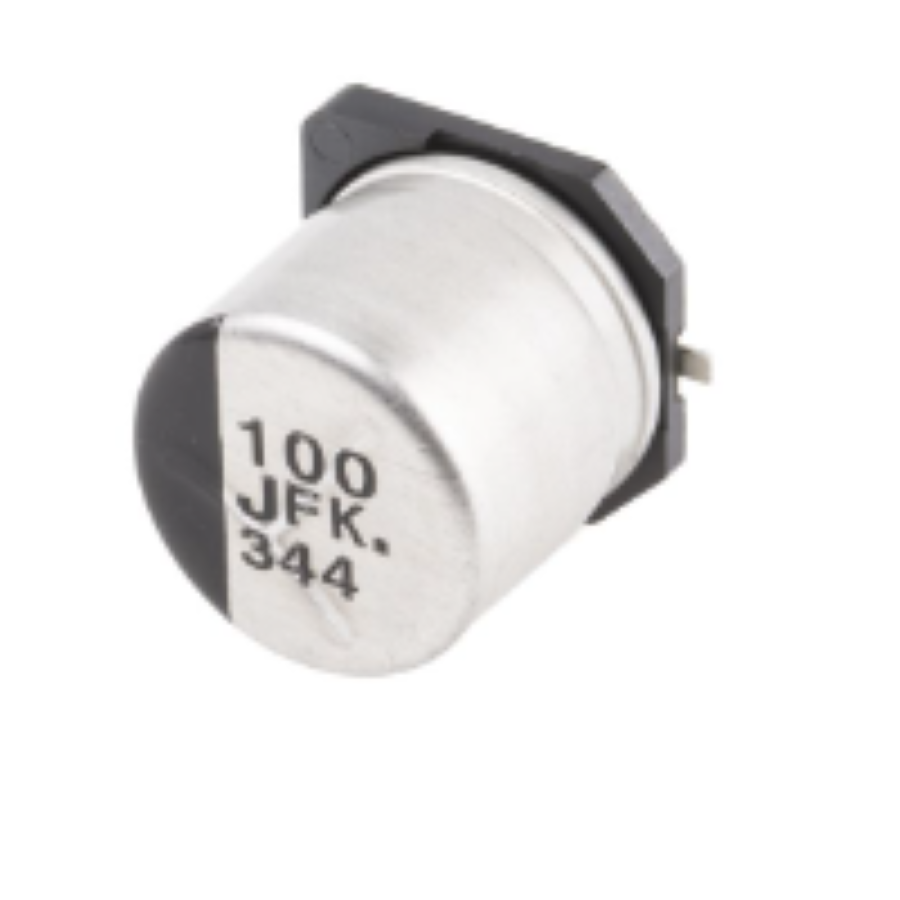

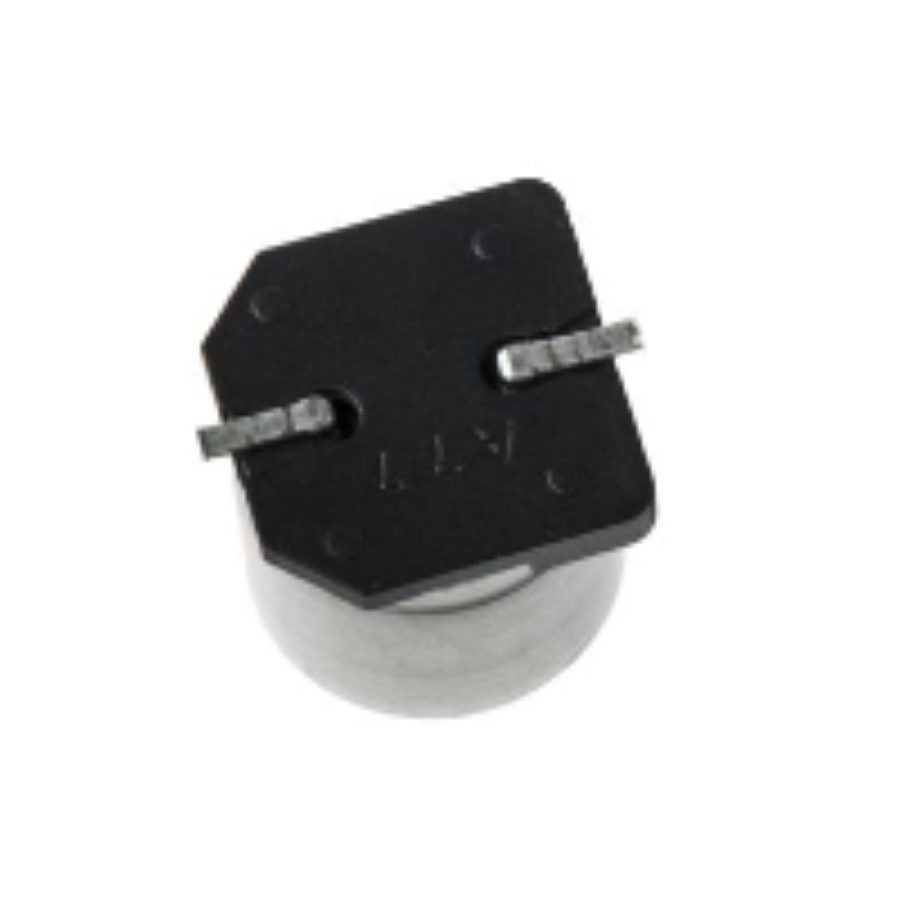

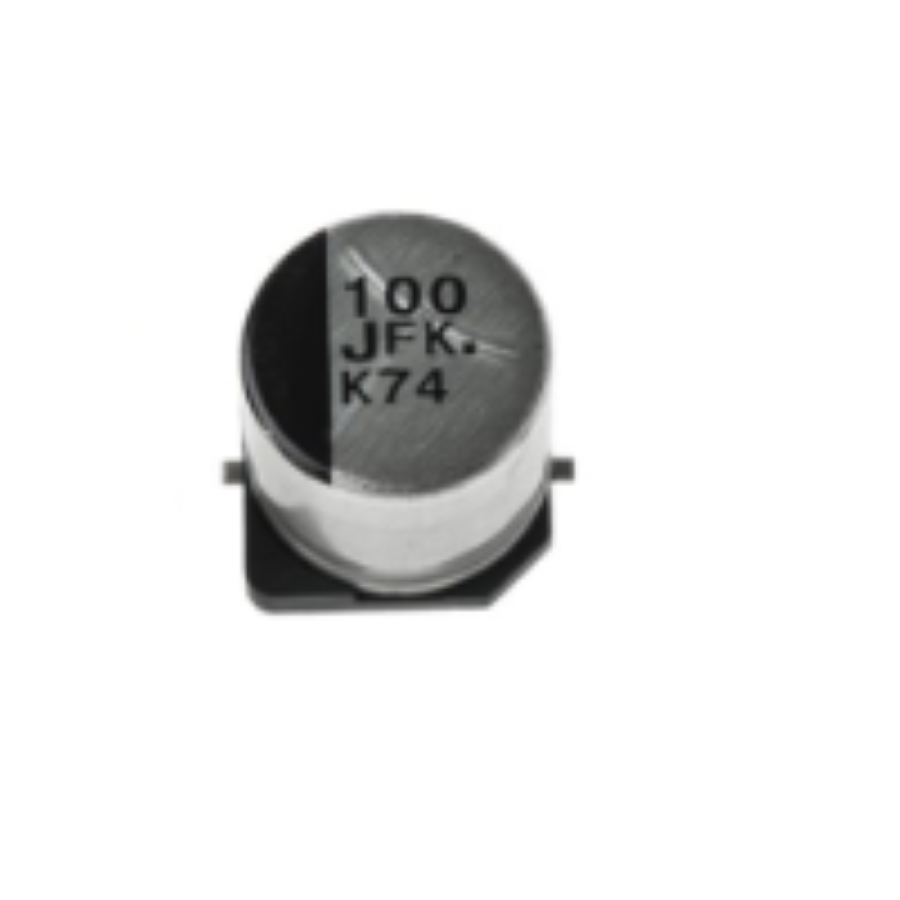

UUD1E331MNL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UUD1E331MNL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial, Can - SMD SMD/SMT 330 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Height - Seated (Max) | 10.5 mm |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| Dielectric Material | Aluminum Electrolytic |
| Impedance | 170 mΩ |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| operating temperature | 105 °C |
| pin count | 2 |
| rohs status | Compliant |
| size length | 10.0 mm |
| size height | 10.0 mm |
| voltage rating dc | 25 V |
| capacitance tolerance | 20 % |
| size diameter | 8 mm |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
Stock: 309
Distributors
pcbx
pcbxUnit Price$0.41914
Ext.Price$0.41914
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41914 | $0.41914 |
| 10 | $0.26094 | $2.60940 |
| 25 | $0.22549 | $5.63725 |
| 50 | $0.19485 | $9.74250 |
| 100 | $0.17394 | $17.39400 |
| 300 | $0.15487 | $46.46100 |
| 500 | $0.13790 | $68.95000 |
