UUG1C222MNQ6MS
Manufacturer:
Nichicon
Mfr.Part #:
UUG1C222MNQ6MS
Datasheet:
Description:

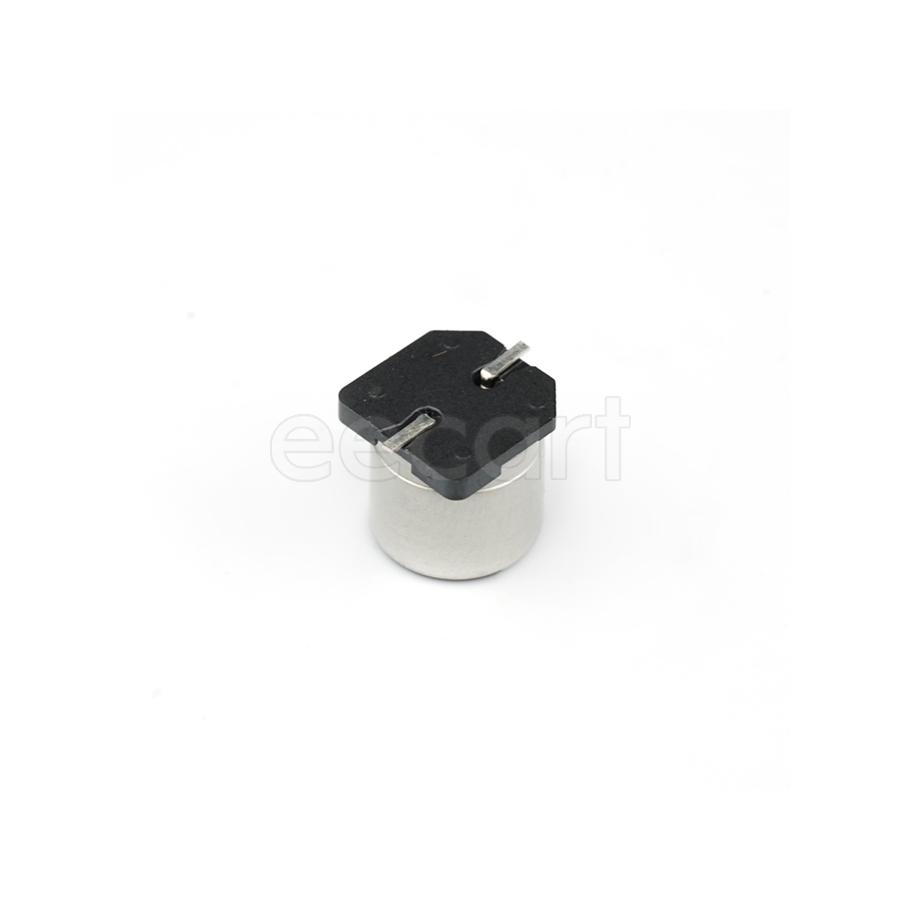

Aluminum Electrolytic Capacitors 12.50mmD×21.00mmH SMD/SMT 2.2 mF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 mF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.15 A |
| Height - Seated (Max) | 22.5 mm |
| Length | 21 mm |
| Termination | SMD/SMT |
| Diameter | 12.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 4 µA |
| Height | 21 mm |
| Voltage Rating | 16 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Ripple Current (AC) | 1.15 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Packaging | Reel |
| Ripple Current @ High Frequency | 1.3225 A @ 10 kHz |
| Ripple Current @ Low Frequency | 1.15 A @ 120 Hz |
