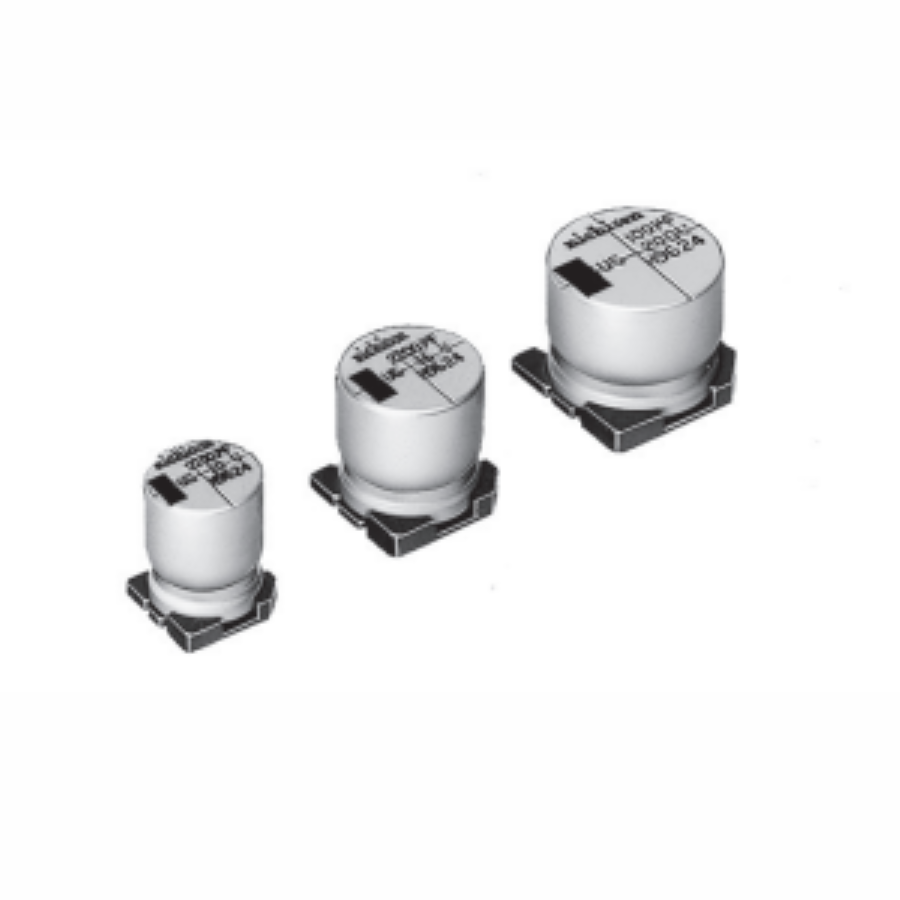

UUG2W100MNQ1MS
Manufacturer:
Nichicon
Mfr.Part #:
UUG2W100MNQ1MS
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,16.00mm×16.50mm SMD/SMT 10 µF 20 % 450 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 140 mA |
| Height - Seated (Max) | 17.5 mm |
| Length | 16.5 mm |
| Termination | SMD/SMT |
| Diameter | 16 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 100 µA |
| Packaging | Reel |
| Voltage Rating | 450 V |
| RoHS | Compliant |
| Polarity | Polar |
| Ripple Current (AC) | 140 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 224 mA @ 10 kHz |
