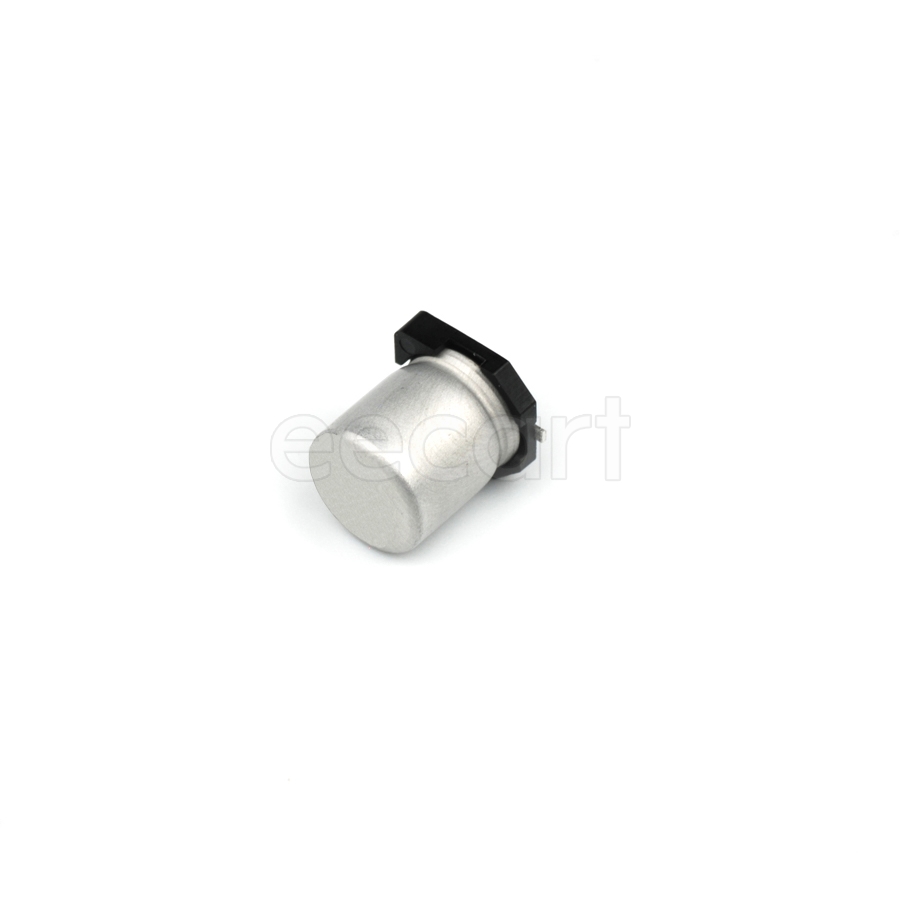

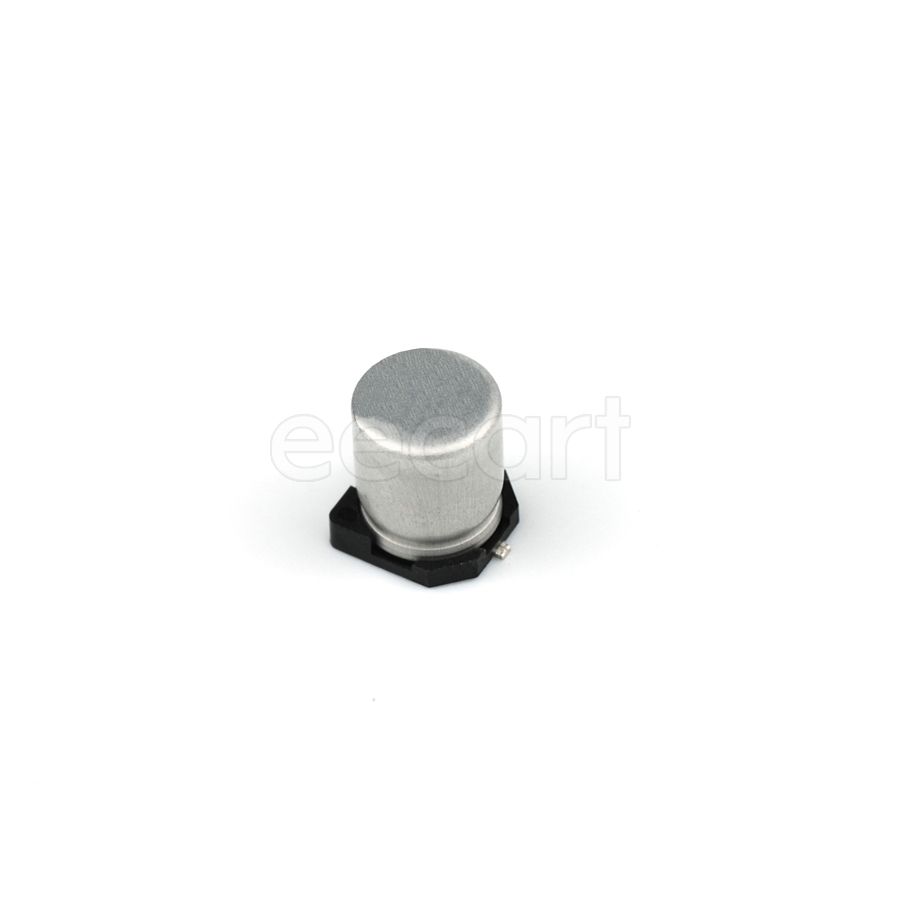

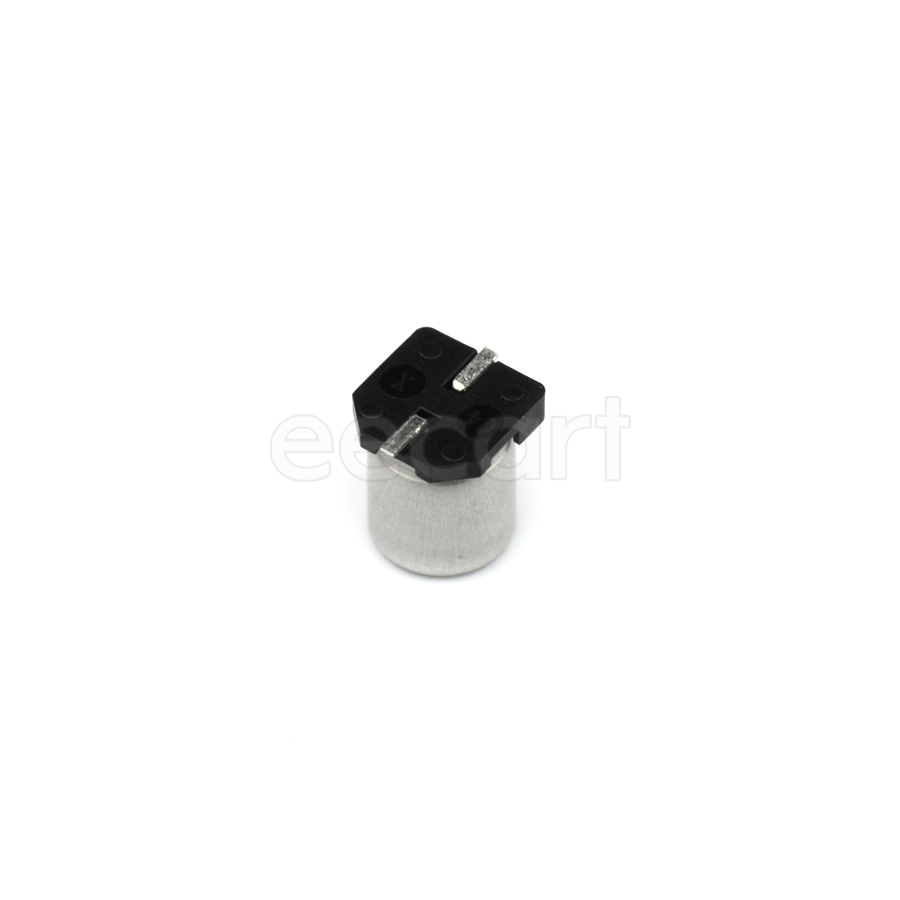

UUT1V100MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UUT1V100MCL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors 5.00mmD×5.80mmH SMD/SMT 10 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 25 mA |
| Height - Seated (Max) | 6.1 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.13 % |
| Height | 5.8 mm |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 1.3 mm |
| Voltage | 35 V |
| Dielectric Material | Aluminium |
| Features | General Purpose |
| Ripple Current (AC) | 25 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Packaging | Reel |
| Ripple Current @ High Frequency | 344.5 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 289 mA @ 120 Hz |
Stock: 187
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.11114 | $1.11140 |
| 50 | $0.10408 | $5.20400 |
| 100 | $0.09746 | $9.74600 |
| 500 | $0.07575 | $37.87500 |
| 1000 | $0.06446 | $64.46000 |
| 3000 | $0.06189 | $185.67000 |
| 5000 | $0.05942 | $297.10000 |
| 10000 | $0.05694 | $569.40000 |
