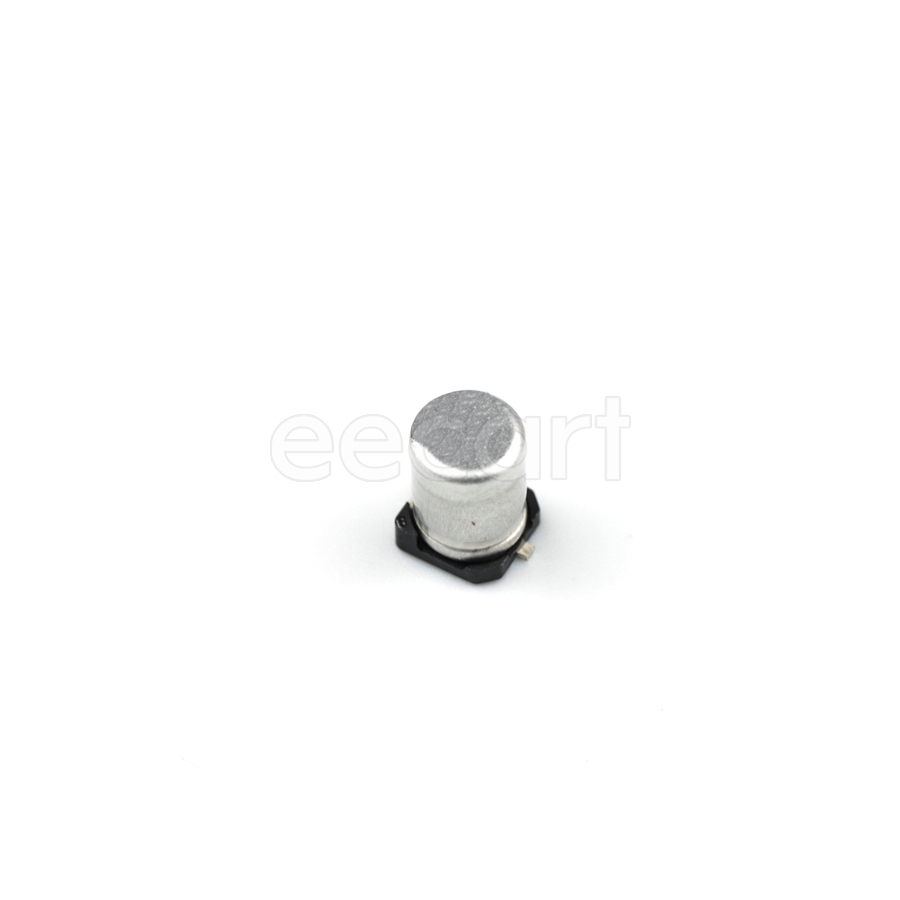

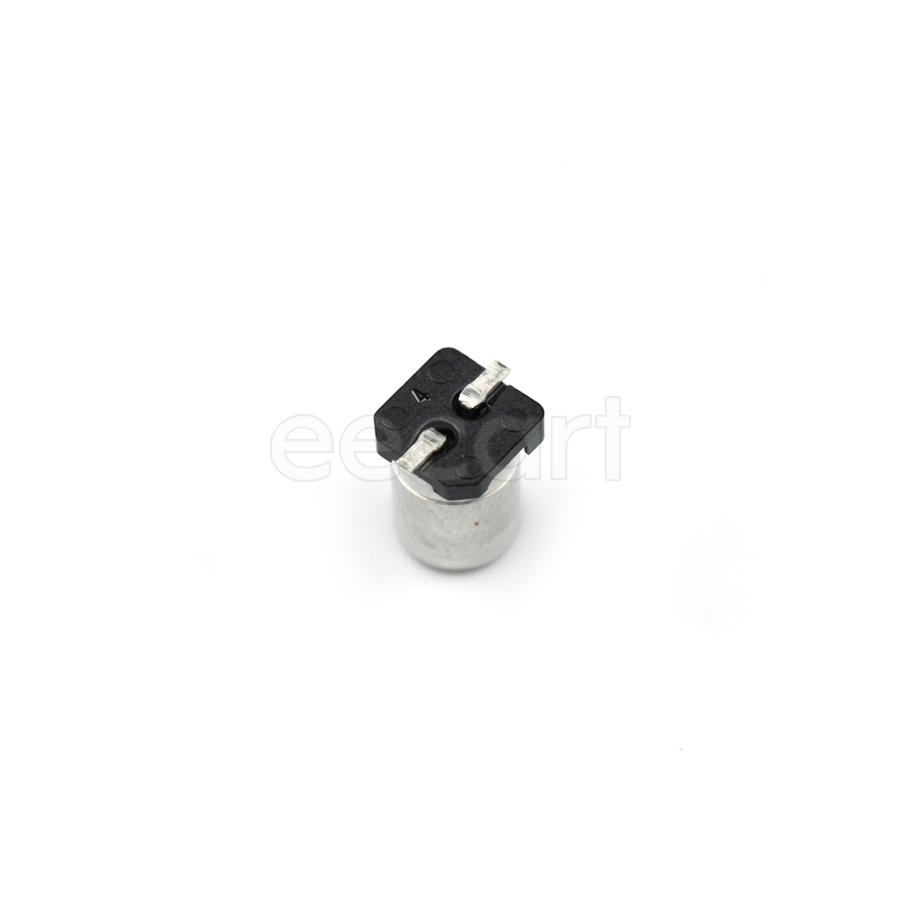

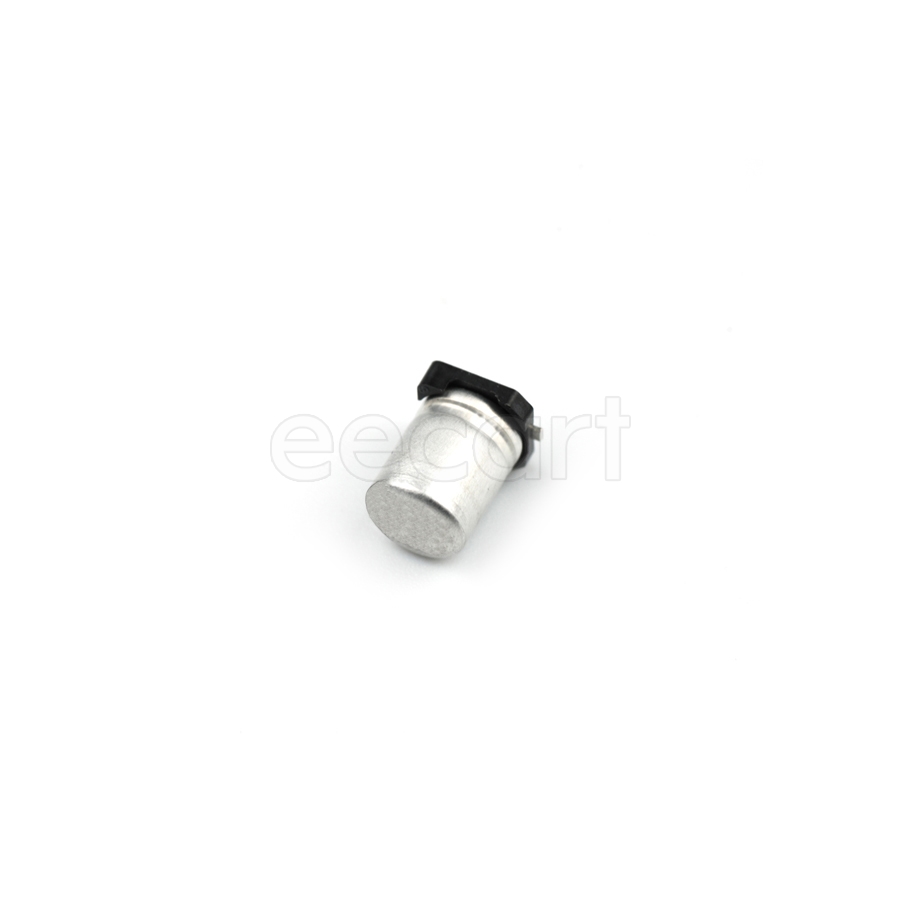

UUT1V4R7MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UUT1V4R7MCL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors 4.00mmD×5.80mmH SMD/SMT 4.7 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 15 mA |
| Height - Seated (Max) | 6.1 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Height | 5.8 mm |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Features | General Purpose |
| Ripple Current (AC) | 15 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Packaging | Reel |
| Ripple Current @ High Frequency | 22.5 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
Stock: 2495
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.09832 | $0.98320 |
| 50 | $0.09169 | $4.58450 |
| 100 | $0.08550 | $8.55000 |
| 500 | $0.06694 | $33.47000 |
| 1000 | $0.06070 | $60.70000 |
| 3000 | $0.05668 | $170.04000 |
| 5000 | $0.05293 | $264.65000 |
| 10000 | $0.04942 | $494.20000 |
