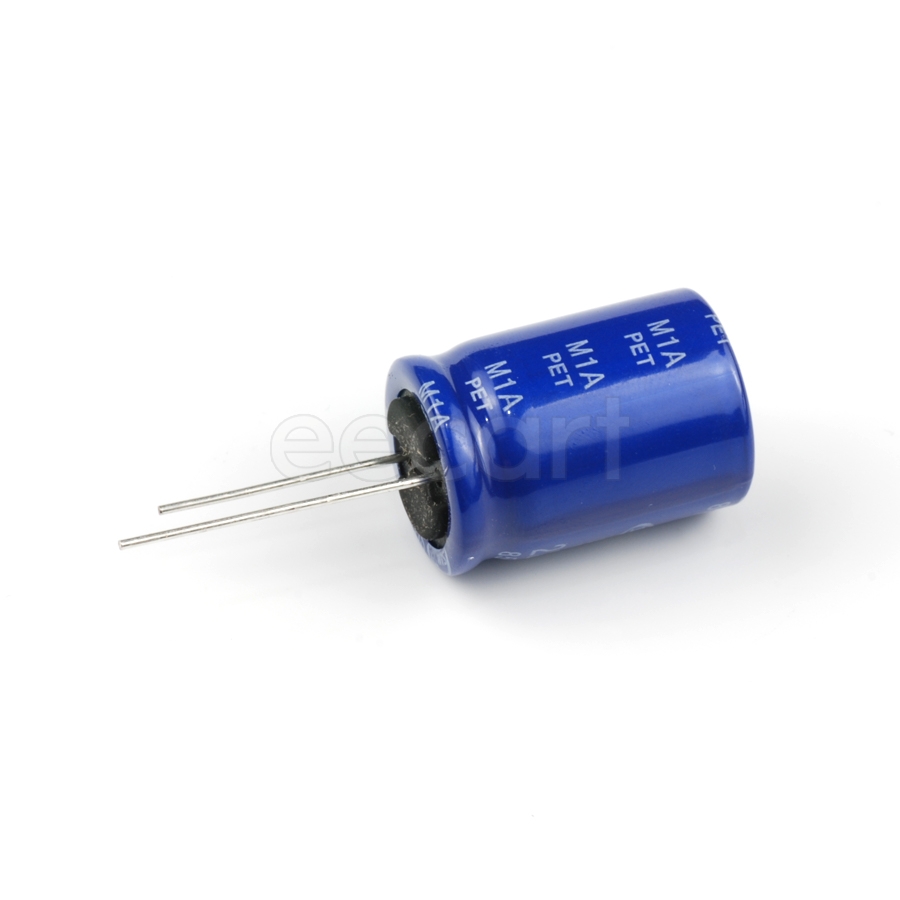

UVR1H332MHD
Manufacturer:
Nichicon
Mfr.Part #:
UVR1H332MHD
Datasheet:
Description:
Aluminum Electrolytic Capacitors 18.00mmD×35.50mmH Through Hole 3.3 mF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 3.3 mF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 2.5 A |
| Height - Seated (Max) | 37.5 mm |
| Length | 35.5 mm |
| Width | 25.4 mm |
| Termination | Radial |
| Diameter | 18 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 4.95 mA |
| Dissipation Factor | 0.12 % |
| Height | 35.5 mm |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 7.5 mm |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Weight | 17.191151 g |
| Dielectric Material | Aluminium |
| Ripple Current @ High Frequency | 2.875 A @ 10 kHz |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
