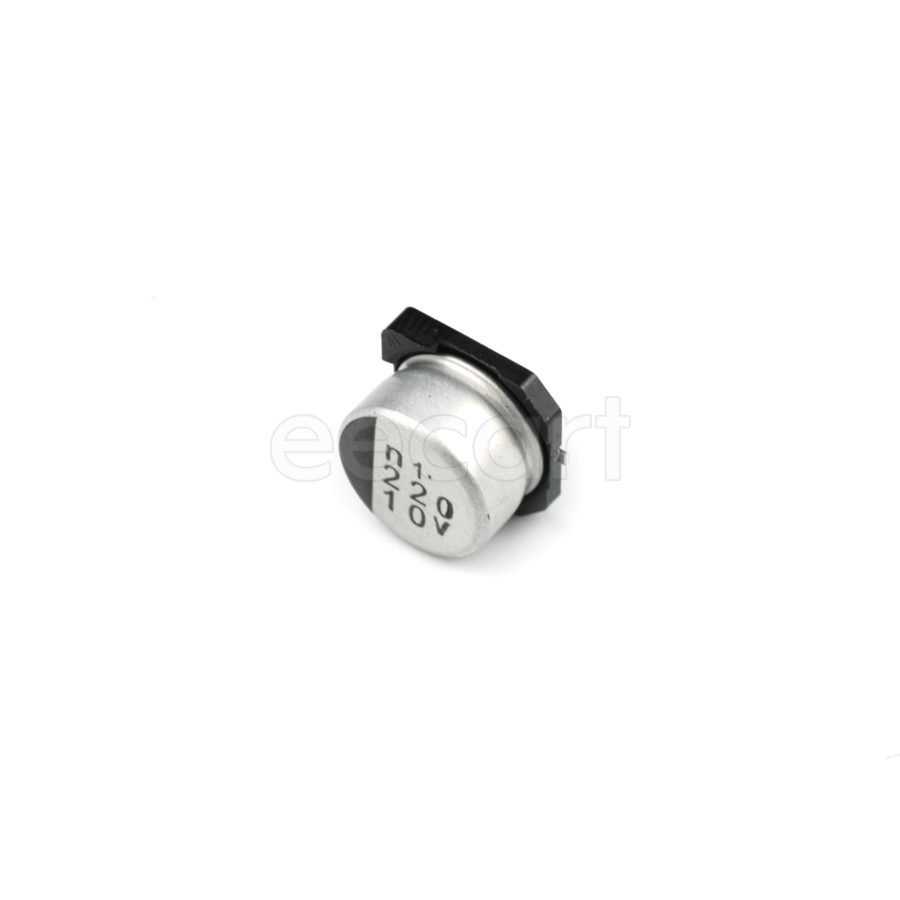

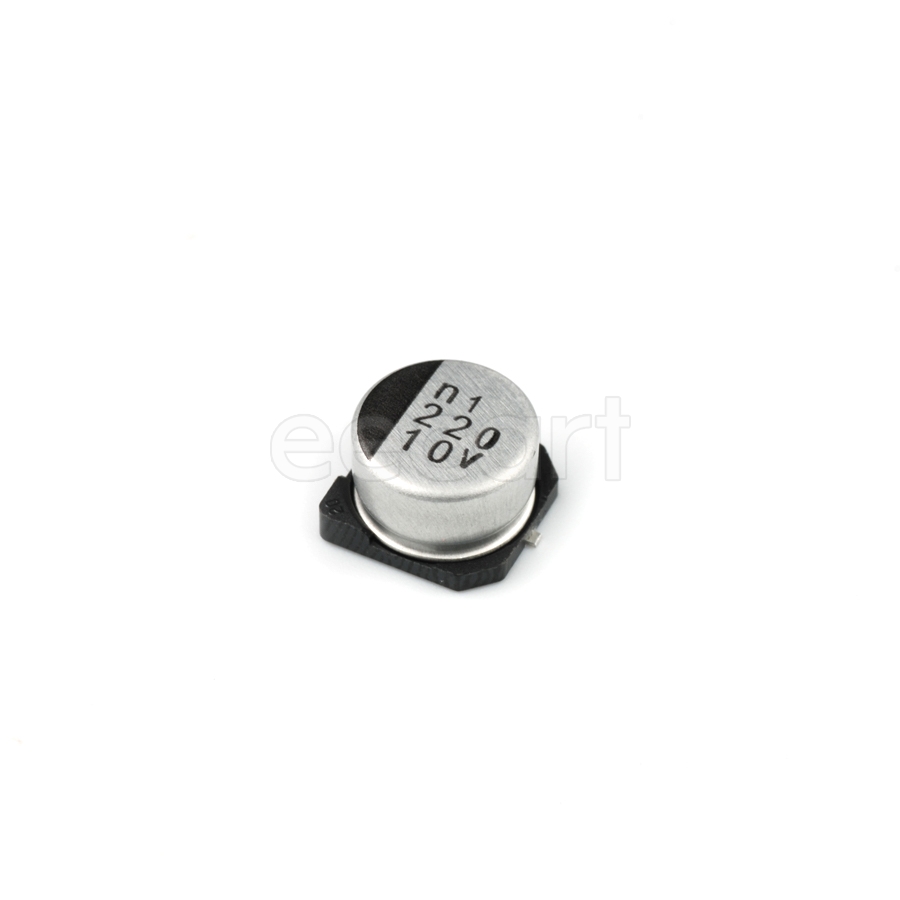

UWT0J221MCL1GB
Manufacturer:
Nichicon
Mfr.Part #:
UWT0J221MCL1GB
Datasheet:
Description:
Aluminum Electrolytic Capacitors 8.00mmD×5.40mmH SMD/SMT 220 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 102 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.4 mm |
| Width | 6.35 mm |
| Termination | SMD/SMT |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.3 % |
| Height | 5.4 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 2.3 mm |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Weight | 4.535924 g |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 102 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 153 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 102 mA @ 120 Hz |
