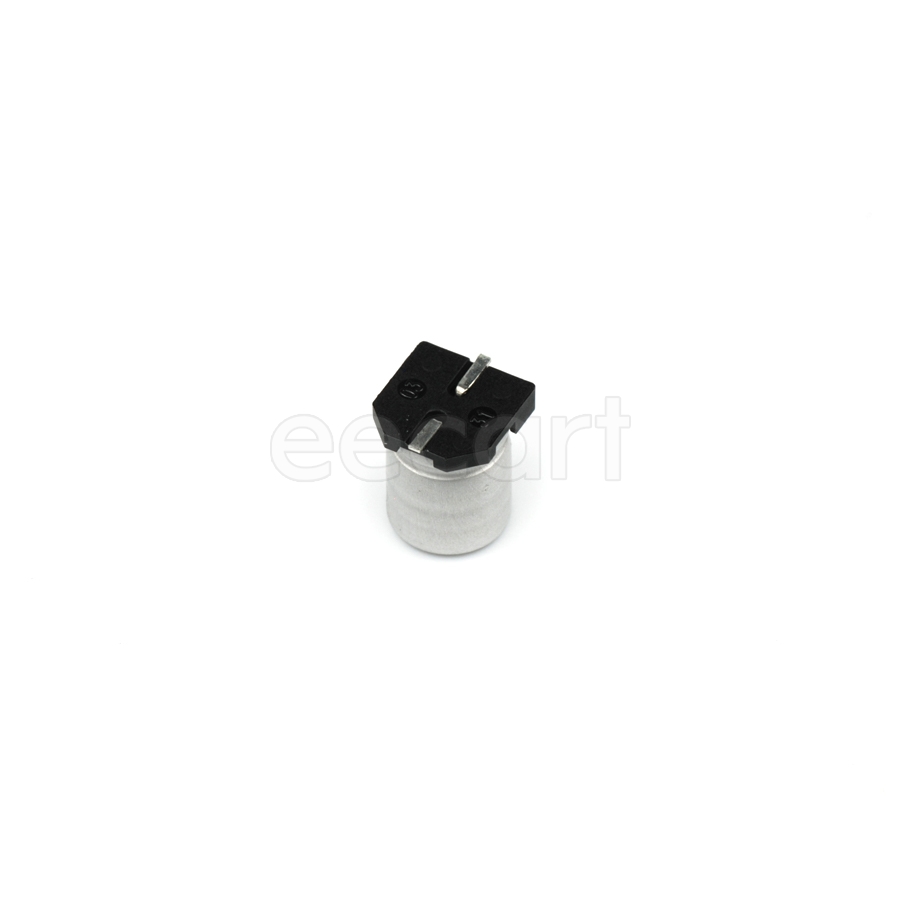

UWT0J331MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UWT0J331MCL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,6.30mm×7.70mm SMD/SMT 330 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 105 mA |
| Height - Seated (Max) | 7.7 mm |
| Length | 7.7 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.3 % |
| Height | 7.7 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Voltage | 6.3 V |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 105 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Ripple Current @ High Frequency | 157.5 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
Stock: 14
Distributors
pcbx
pcbxUnit Price$0.27529
Ext.Price$0.27529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27529 | $0.27529 |
| 10 | $0.13764 | $1.37640 |
| 50 | $0.11834 | $5.91700 |
| 100 | $0.10174 | $10.17400 |
| 500 | $0.07130 | $35.65000 |
| 1000 | $0.06567 | $65.67000 |
| 3000 | $0.06048 | $181.44000 |
| 5000 | $0.05570 | $278.50000 |
| 10000 | $0.05130 | $513.00000 |
