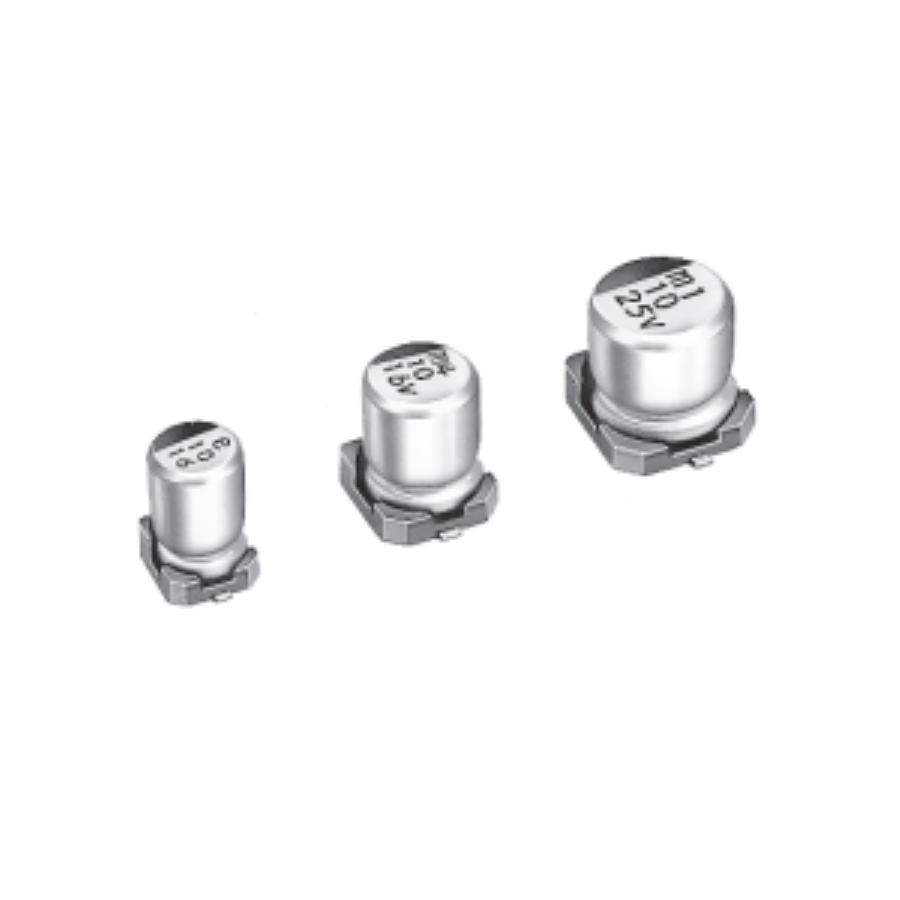

UWT1E331MNL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UWT1E331MNL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,8.00mm×10.00mm SMD/SMT 330 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 190 mA |
| Height - Seated (Max) | 10 mm |
| Length | 10 mm |
| Termination | SMD/SMT |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.16 % |
| Height | 10 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 190 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 285 mA @ 10 kHz |
Stock: 743
Distributors
pcbx
pcbxUnit Price$0.33770
Ext.Price$0.33770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33770 | $0.33770 |
| 10 | $0.20775 | $2.07750 |
| 50 | $0.17428 | $8.71400 |
| 100 | $0.14620 | $14.62000 |
| 500 | $0.11370 | $56.85000 |
| 1000 | $0.09917 | $99.17000 |
| 3000 | $0.09254 | $277.62000 |
| 5000 | $0.08635 | $431.75000 |
| 10000 | $0.08327 | $832.70000 |
