UWX1A221MCL1GB
Manufacturer:
Nichicon
Mfr.Part #:
UWX1A221MCL1GB
Datasheet:
Description:

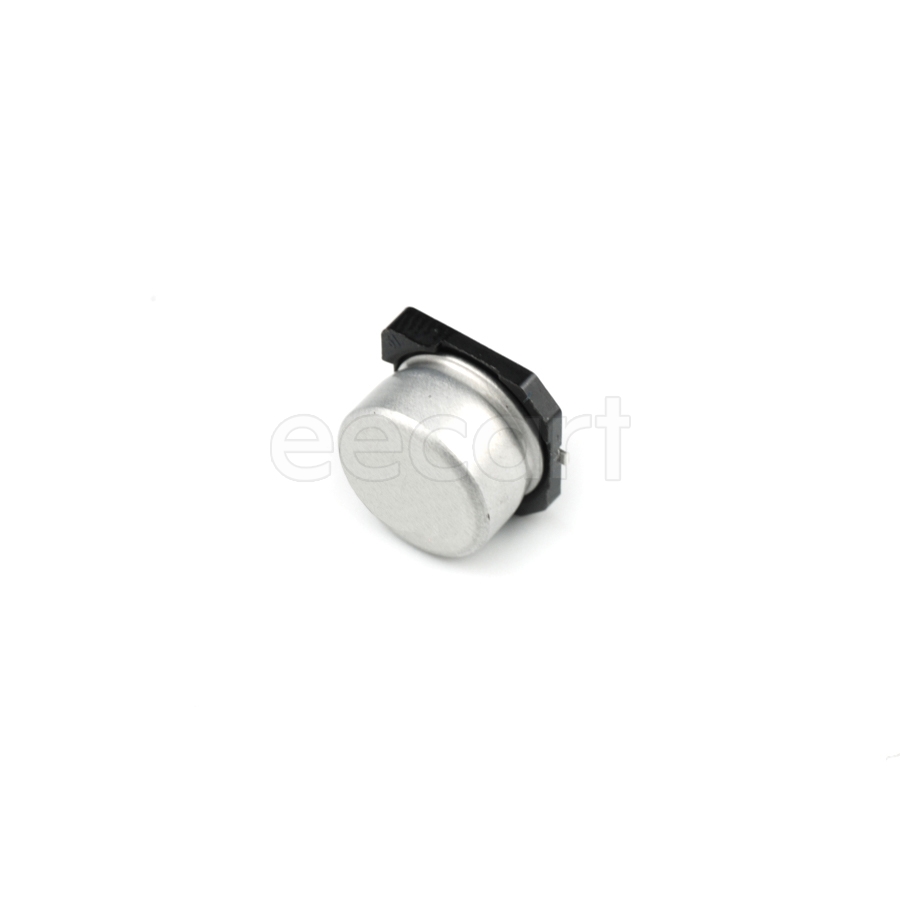

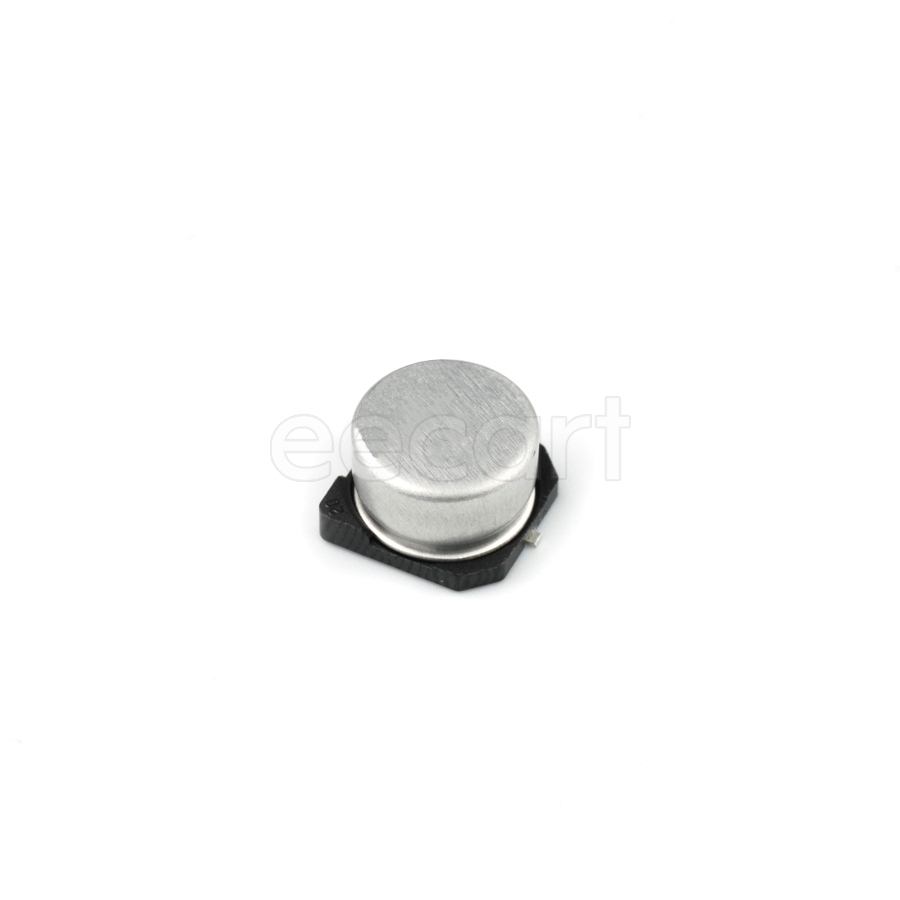

Aluminum Electrolytic Capacitors 8.00mmD×5.40mmH SMD/SMT 220 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 135 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.4 mm |
| Termination | SMD/SMT |
| Diameter | 8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.2 % |
| Height | 5.4 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 2.3 mm |
| Voltage | 10 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Ripple Current (AC) | 135 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 202.5 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
