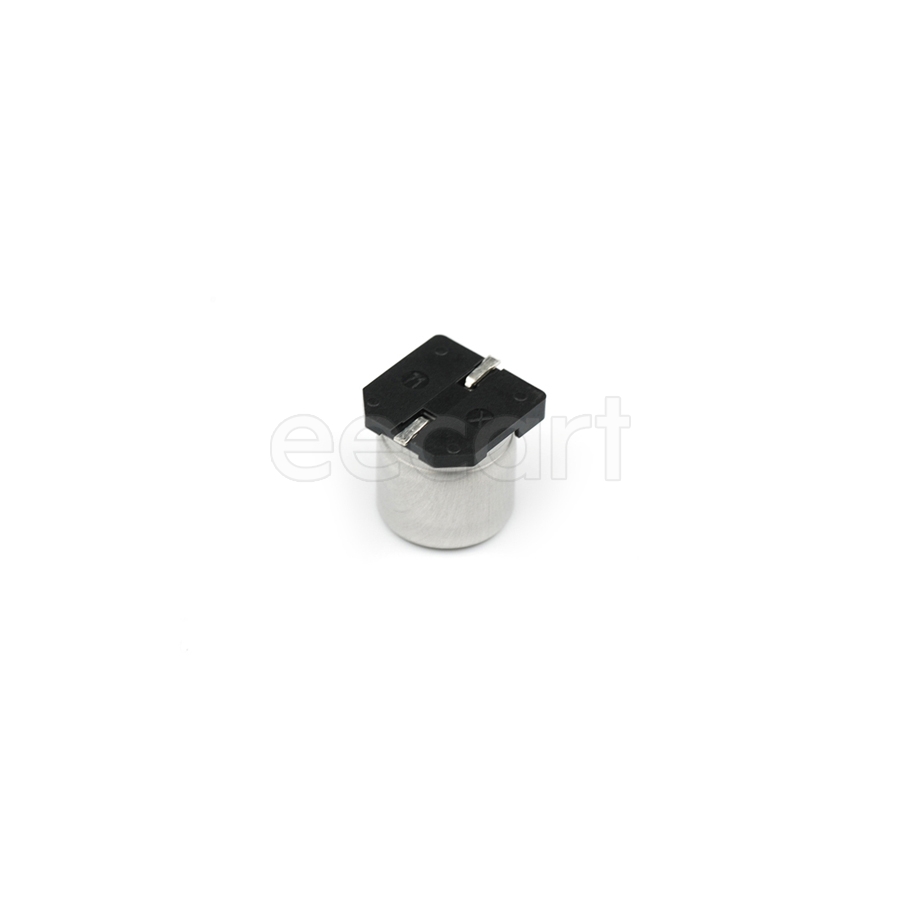

UWZ1V221MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
UWZ1V221MCL1GS
Datasheet:
Description:
Aluminum Electrolytic Capacitors 10.00mmD×10.00mmH SMD/SMT 220 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 190 mA |
| Height - Seated (Max) | 10 mm |
| Length | 10 mm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 77 µA |
| Dissipation Factor | 0.14 % |
| Height | 10 mm |
| Material | Aluminium |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 35 V |
| Features | General Purpose |
| Ripple Current (AC) | 190 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Packaging | Reel |
| Ripple Current @ High Frequency | 285 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
