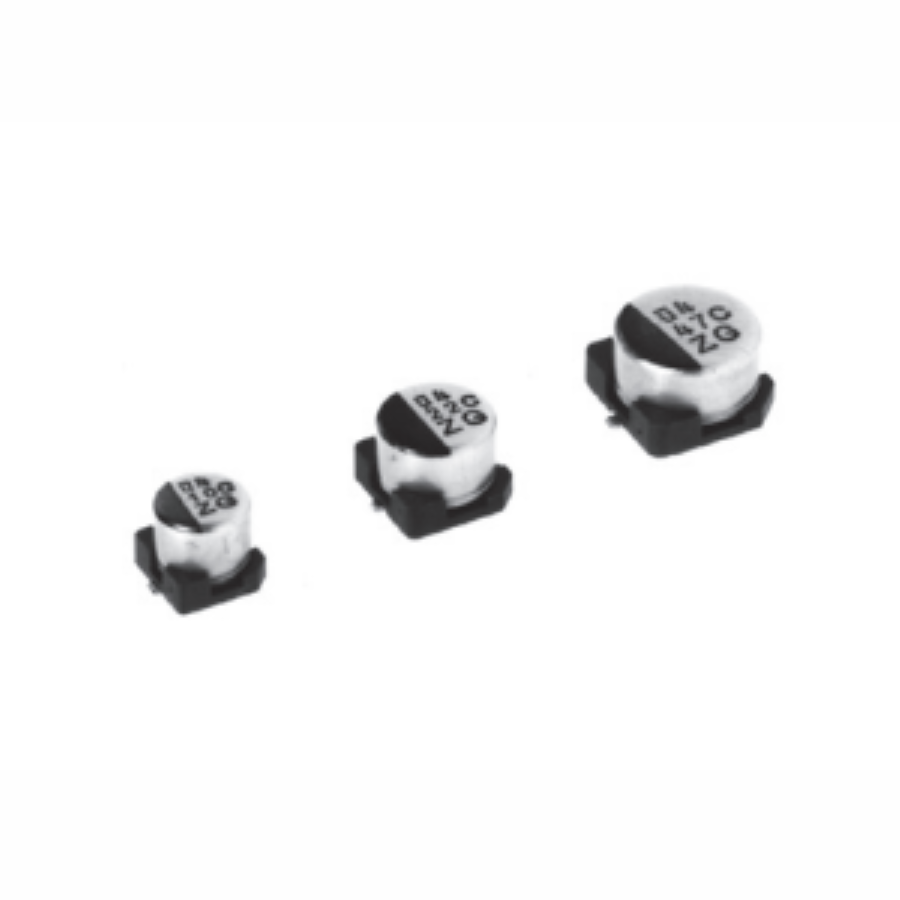

UZG0J101MCL1GB
Manufacturer:
Nichicon
Mfr.Part #:
UZG0J101MCL1GB
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,6.30mm×3.90mm SMD/SMT 100 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 52 mA |
| Height - Seated (Max) | 3.96 mm |
| Length | 3.9 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 6.3 µA |
| Height | 3.9 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 2.2 mm |
| Voltage | 6.3 V |
| Features | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78 mA @ 10 kHz |
Stock: 671
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.28982 | $2.89820 |
| 25 | $0.27979 | $6.99475 |
| 50 | $0.27011 | $13.50550 |
| 100 | $0.26076 | $26.07600 |
| 300 | $0.25073 | $75.21900 |
| 500 | $0.24109 | $120.54500 |
| 1000 | $0.20946 | $209.46000 |
| 3000 | $0.19346 | $580.38000 |
| 5000 | $0.17868 | $893.40000 |
