UZG1C220MCL1GB
Manufacturer:
Nichicon
Mfr.Part #:
UZG1C220MCL1GB
Datasheet:
Description:

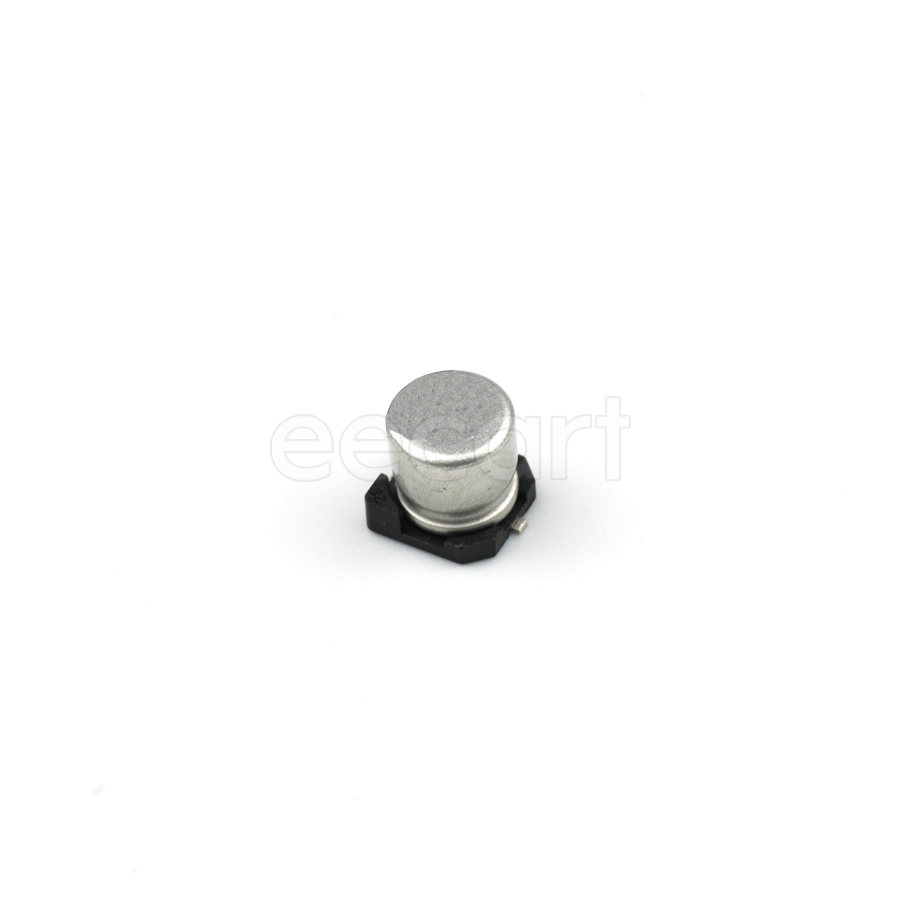

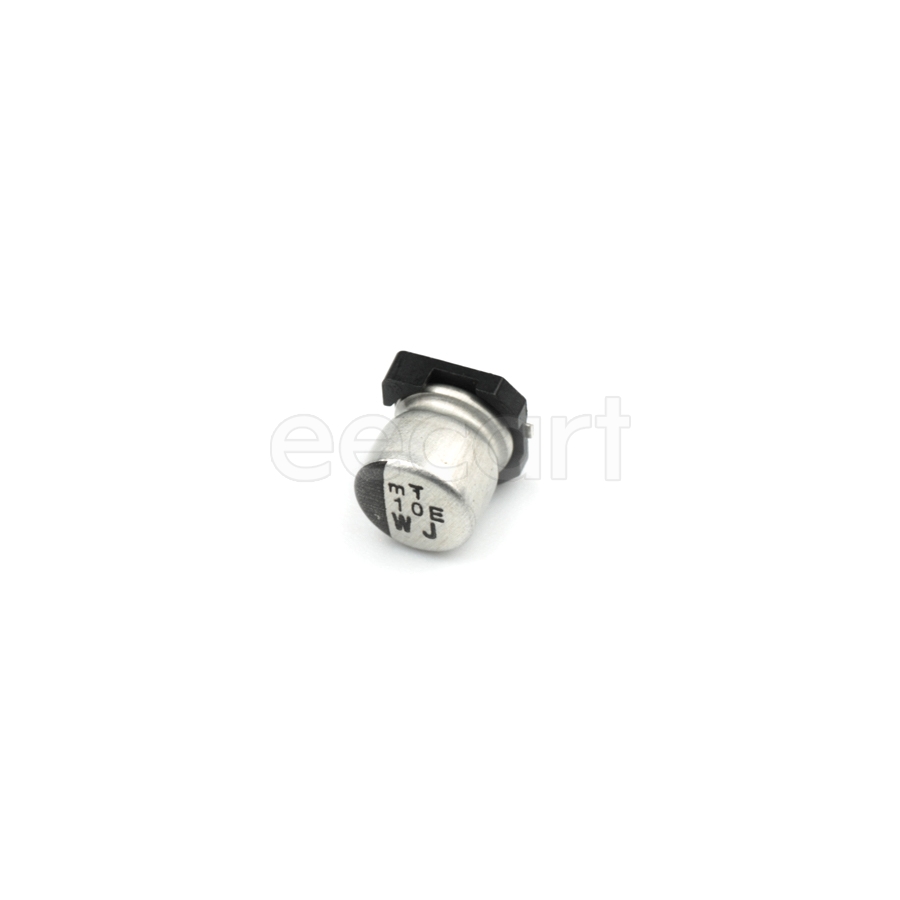

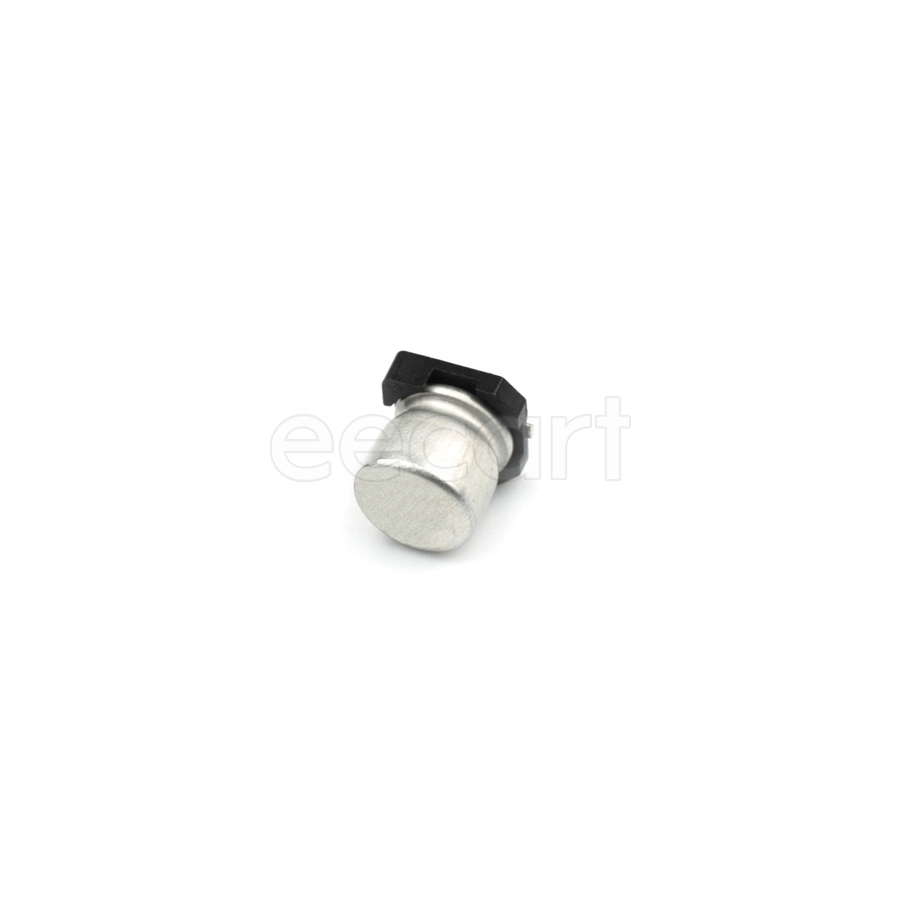

Aluminum Electrolytic Capacitors 5.00mmD×3.90mmH SMD/SMT 22 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 26 mA |
| Height - Seated (Max) | 3.95 mm |
| Length | 3.9 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3.52 µA |
| Height | 3.9 mm |
| Voltage Rating | 16 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Voltage | 16 V |
| Features | General Purpose |
| Ripple Current (AC) | 26 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Packaging | Reel |
| Ripple Current @ High Frequency | 39 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
Stock: 487
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.26332 | $2.63320 |
| 25 | $0.25386 | $6.34650 |
| 50 | $0.24474 | $12.23700 |
| 100 | $0.23596 | $23.59600 |
| 300 | $0.21163 | $63.48900 |
| 500 | $0.18980 | $94.90000 |
| 1000 | $0.16671 | $166.71000 |
| 3000 | $0.15428 | $462.84000 |
| 5000 | $0.14277 | $713.85000 |
| 10000 | $0.13337 | $1333.70000 |
