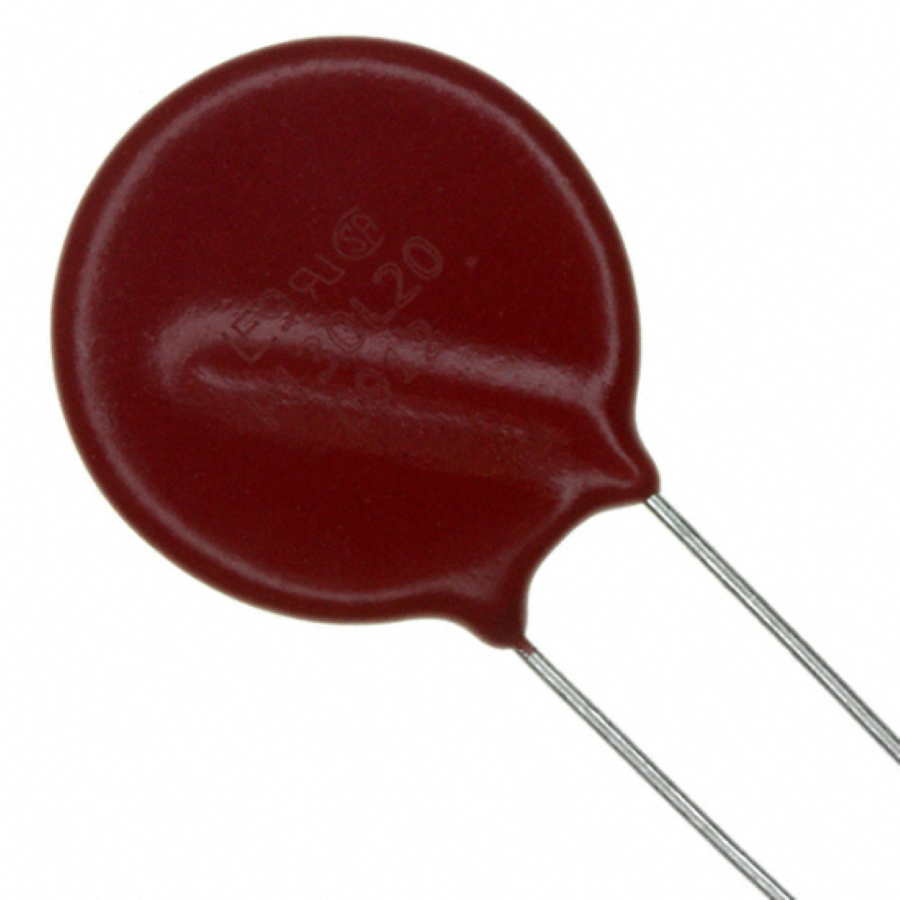

V130LA10AP
Manufacturer:
Littelfuse
Mfr.Part #:
V130LA10AP
Datasheet:
Description:
Varistors 17.00mmD×20.00mmH Through Hole 1 nF 38 J Voltage Rating (AC):130 V Voltage Rating (DC):175 V
| Parameter | Value |
|---|---|
| Capacitance | 1 nF |
| Voltage Rating (DC) | 175 V |
| Tolerance | 10 % |
| Width | 5.6 mm |
| Termination | Radial |
| Diameter | 14 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 130 V |
| Temperature Coefficient | 0.05 ppm/°C |
| Packaging | Bulk |
| Voltage Rating | 175 V |
| Depth | 5.6 mm |
| Thickness | 5.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 8.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Lead Length | 25.4 mm |
| Lead/Base Style | Radial |
| Number of Terminals | 2 |
| Current Rating | 50 A |
| Max Voltage Rating (DC) | 175 V |
| Number of Circuits | 1 |
| Max Output Current | 4.5 kA |
| Clamping Voltage | 340 V |
| Varistor Voltage | 228 V |
| Max Voltage Rating (AC) | 130 V |
| Max Surge Current | 4.5 kA |
| Energy | 38 J |
| Clamping Current | 50 A |
| Max Varistor Voltage | 225.5 V |
| Min Varistor Voltage | 184.5 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 38 J |
| Peak Surge Current | 4.5 kA |
Stock: 1505
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.21800 | $2.18000 |
| 25 | $0.19493 | $4.87325 |
| 50 | $0.18165 | $9.08250 |
| 100 | $0.16927 | $16.92700 |
| 300 | $0.16049 | $48.14700 |
| 500 | $0.15217 | $76.08500 |
