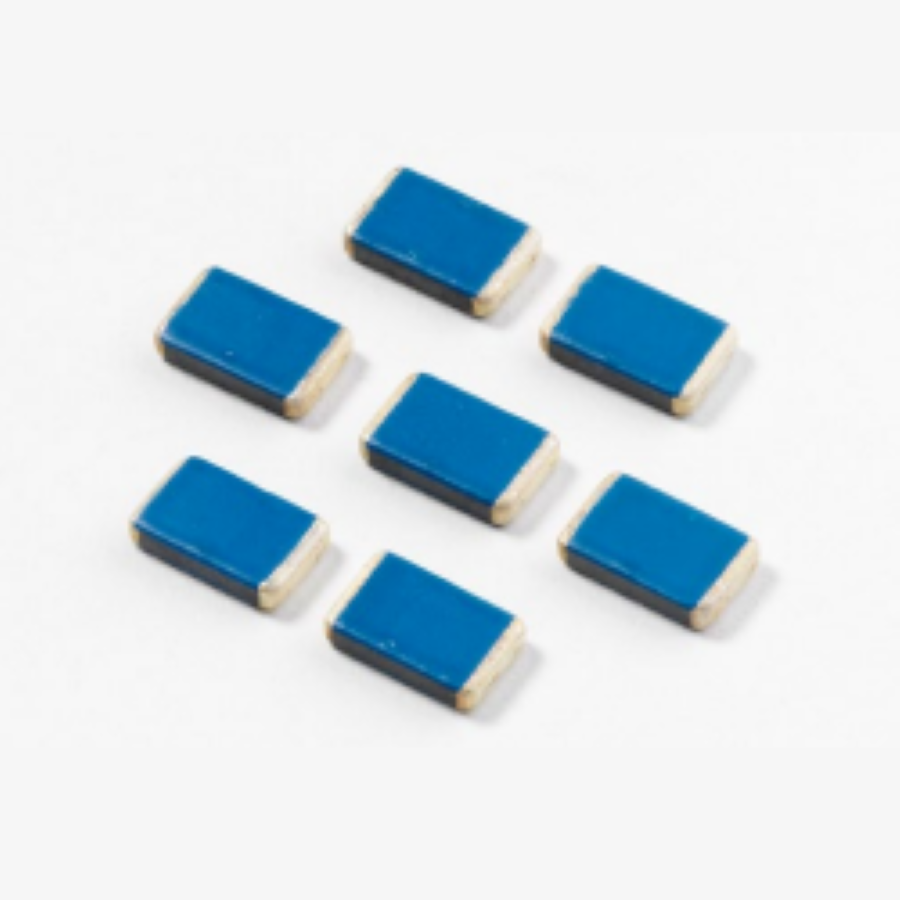

V430CH8
Manufacturer:
Littelfuse
Mfr.Part #:
V430CH8
Datasheet:
Description:
Varistors 3220(8250 Metric) SMD/SMT 80 pF 8 J Voltage Rating (AC):275 V Voltage Rating (DC):369 V
| Parameter | Value |
|---|---|
| Capacitance | 80 pF |
| Voltage Rating (DC) | 369 V |
| Length | 8.51 mm |
| Width | 5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 3220 |
| Case Code (Metric) | 8552 |
| Voltage Rating (AC) | 275 V |
| Packaging | Reel |
| Voltage Rating | 369 V |
| Depth | 5.26 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Current Rating | 10 A |
| Max Voltage Rating (DC) | 369 V |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Max Output Current | 250 A |
| Peak Pulse Current | 250 A |
| Clamping Voltage | 710 V |
| Varistor Voltage | 430 V |
| Max Voltage Rating (AC) | 275 V |
| Max Surge Current | 250 A |
| Energy | 8 J |
| Clamping Current | 10 A |
| Max Varistor Voltage | 473 V |
| Min Varistor Voltage | 389 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 8 J |
| Peak Surge Current | 250 A |
Stock: 24187
Distributors
pcbx
pcbxUnit Price$0.78835
Ext.Price$0.78835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78835 | $0.78835 |
| 10 | $0.57129 | $5.71290 |
| 25 | $0.51732 | $12.93300 |
| 50 | $0.48669 | $24.33450 |
| 100 | $0.45788 | $45.78800 |
| 300 | $0.43717 | $131.15100 |
| 500 | $0.41739 | $208.69500 |
| 1000 | $0.37727 | $377.27000 |
| 3000 | $0.34100 | $1023.00000 |
