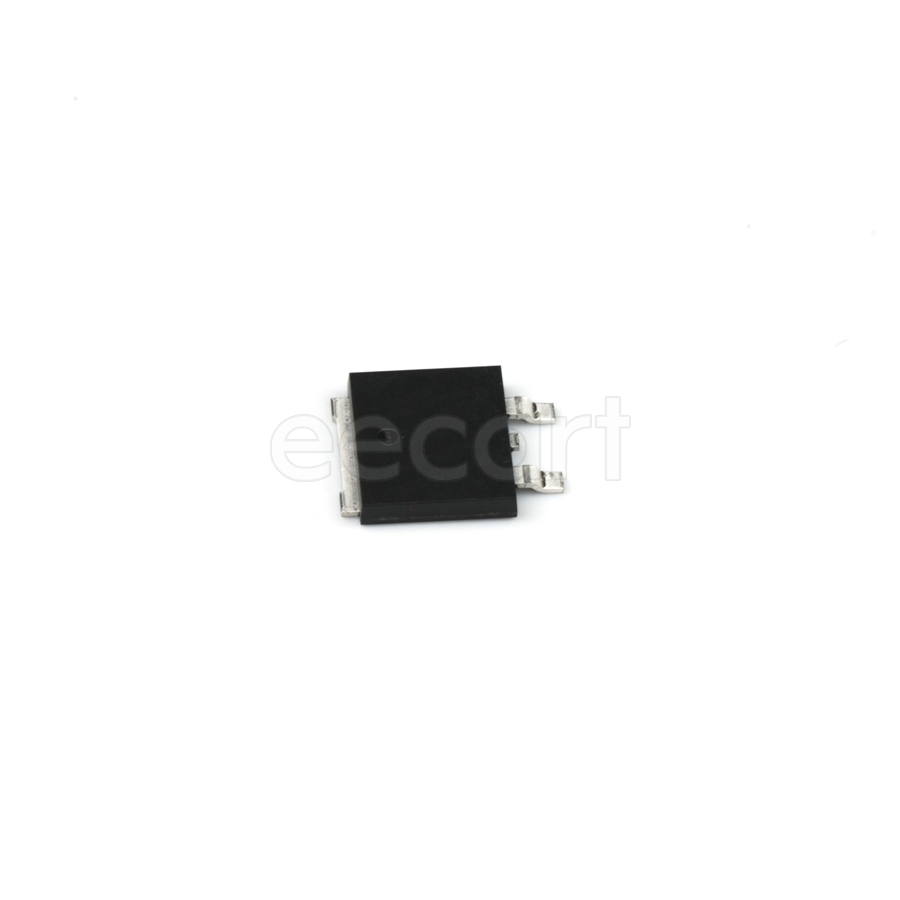

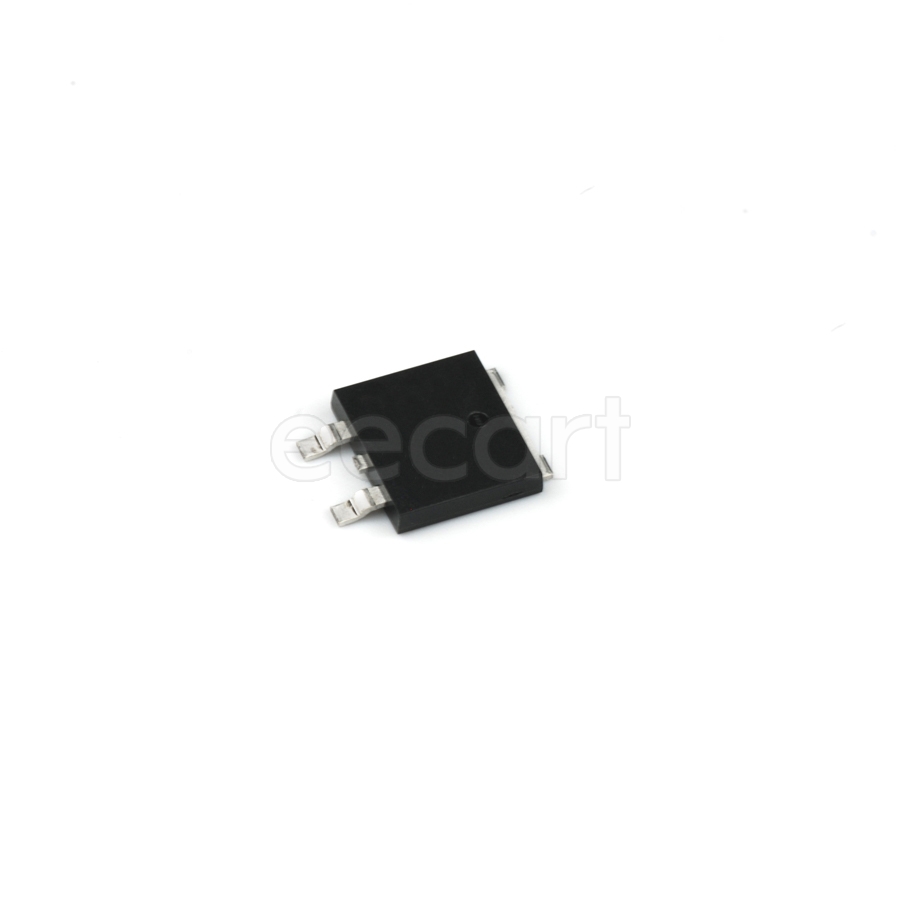

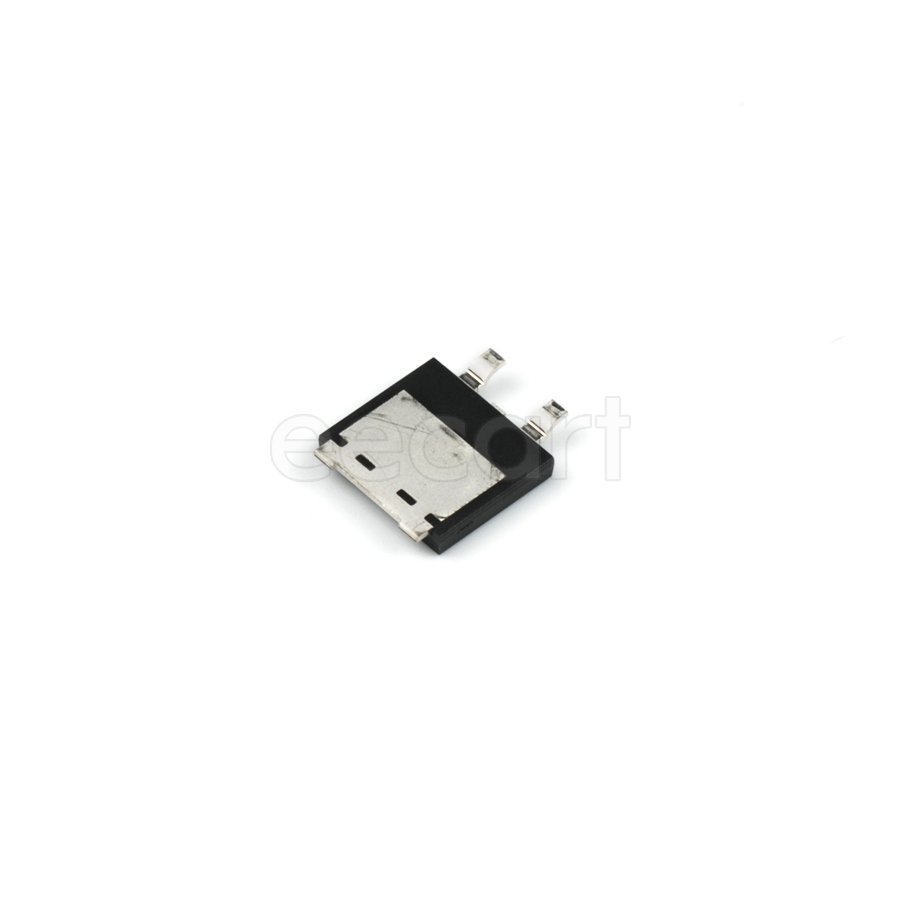

V60D120C-M3/I
Manufacturer:
Vishay
Mfr.Part #:
V60D120C-M3/I
Datasheet:
Description:
Schottky Diodes SMPD SMD/SMT Common Cathode Forward Current:60 A Forward Voltage:960 mV Max Repetitive Reverse Voltage (Vrrm):120 V Max Forward Surge Current (Ifsm):320 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 550.009098 mg |
| Type | Schottky Rectifier |
| Forward Current | 60 A |
| Forward Voltage | 960 mV |
| Average Rectified Current | 30 A |
| Max Repetitive Reverse Voltage (Vrrm) | 120 V |
| Element Configuration | Common Cathode |
| Forward Surge Current (Ifsm) | 320 A |
| Reverse Voltage | 120 V |
| Peak Non-Repetitive Surge Current | 320 A |
| Reverse Current | 800 µA |
| Recovery Time | 500 ns |
Stock: 1647
Distributors
pcbx
pcbxUnit Price$2.62806
Ext.Price$2.62806
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.62806 | $2.62806 |
| 10 | $1.97147 | $19.71470 |
| 25 | $1.83746 | $45.93650 |
| 50 | $1.71256 | $85.62800 |
| 100 | $1.59616 | $159.61600 |
| 300 | $1.45529 | $436.58700 |
| 500 | $1.32685 | $663.42500 |
| 1000 | $1.25162 | $1251.62000 |
| 3000 | $1.24962 | $3748.86000 |
| 5000 | $1.24762 | $6238.10000 |
| 10000 | $1.24563 | $12456.30000 |
