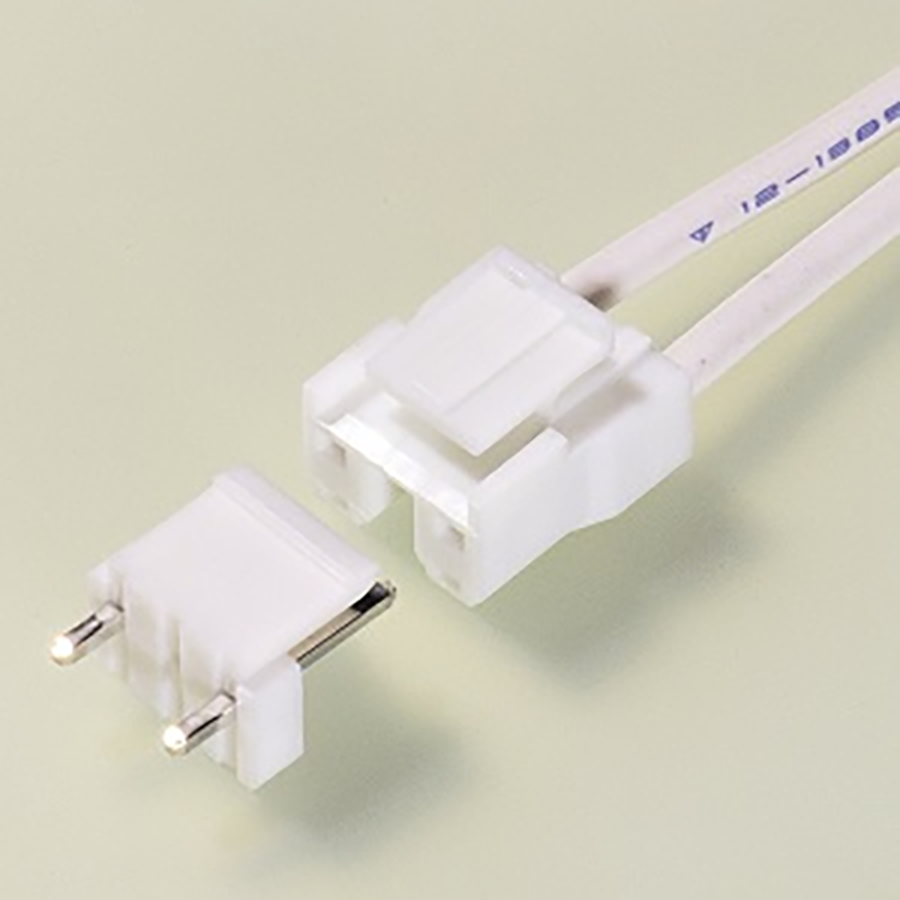

VAR-2
Manufacturer:
JST
Mfr.Part #:
VAR-2
Datasheet:
Description:
Headers and Wire Housings Free Hanging Receptacle, Socket Number of Positions:2 Pitch:7.92 mm
| Parameter | Value |
|---|---|
| Length | 12.92 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 14.3 mm |
| RoHS | Compliant |
| Pitch | 7.92 mm |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Female |
| Connector Type | Receptacle, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 18 AWG |
| Housing Color | White |
Stock: 501
Distributors
pcbx
pcbxUnit Price$0.10944
Ext.Price$0.10944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10944 | $0.10944 |
| 10 | $0.05472 | $0.54720 |
| 50 | $0.04915 | $2.45750 |
| 100 | $0.04414 | $4.41400 |
| 500 | $0.03899 | $19.49500 |
| 1000 | $0.03444 | $34.44000 |
| 3000 | $0.03292 | $98.76000 |
| 5000 | $0.03146 | $157.30000 |
| 10000 | $0.02979 | $297.90000 |
