VE-101M1ETR-0607
Manufacturer:
Lelon
Mfr.Part #:
VE-101M1ETR-0607
Datasheet:
Description:

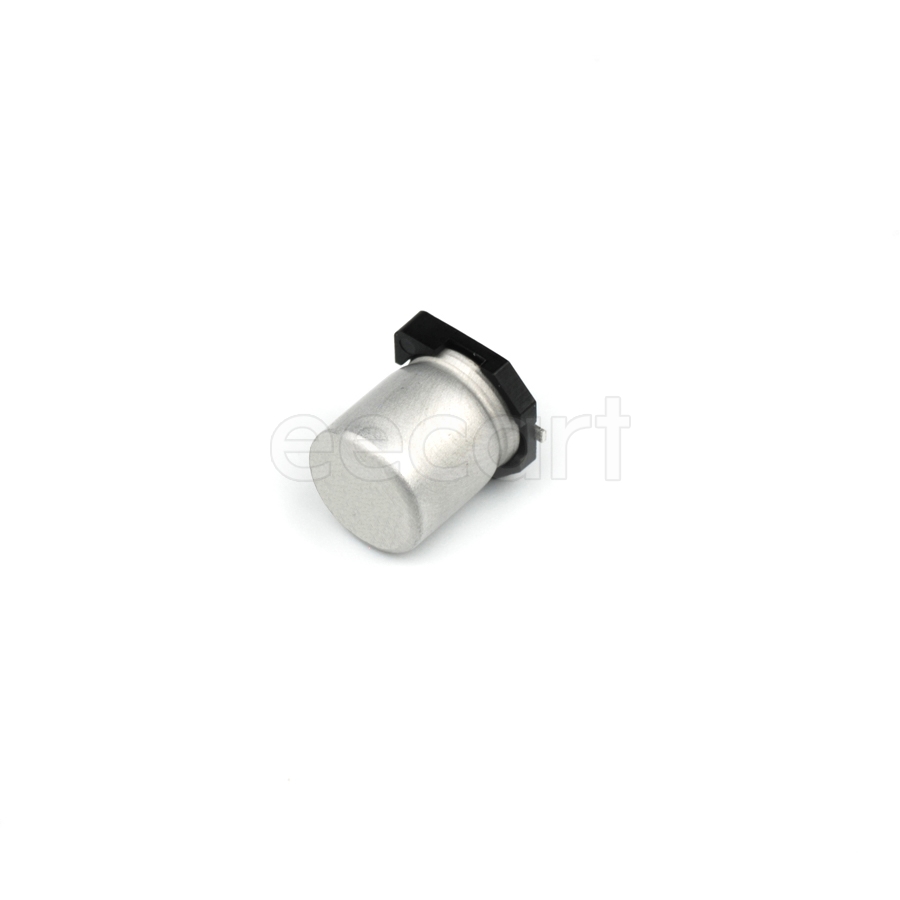

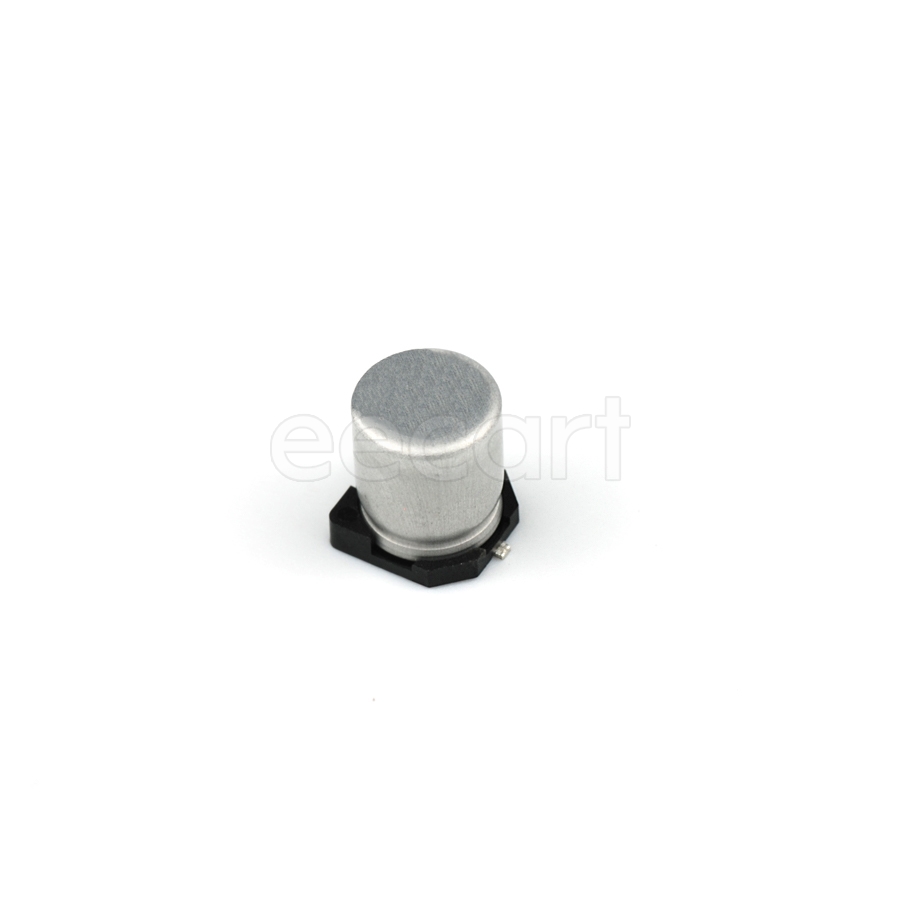

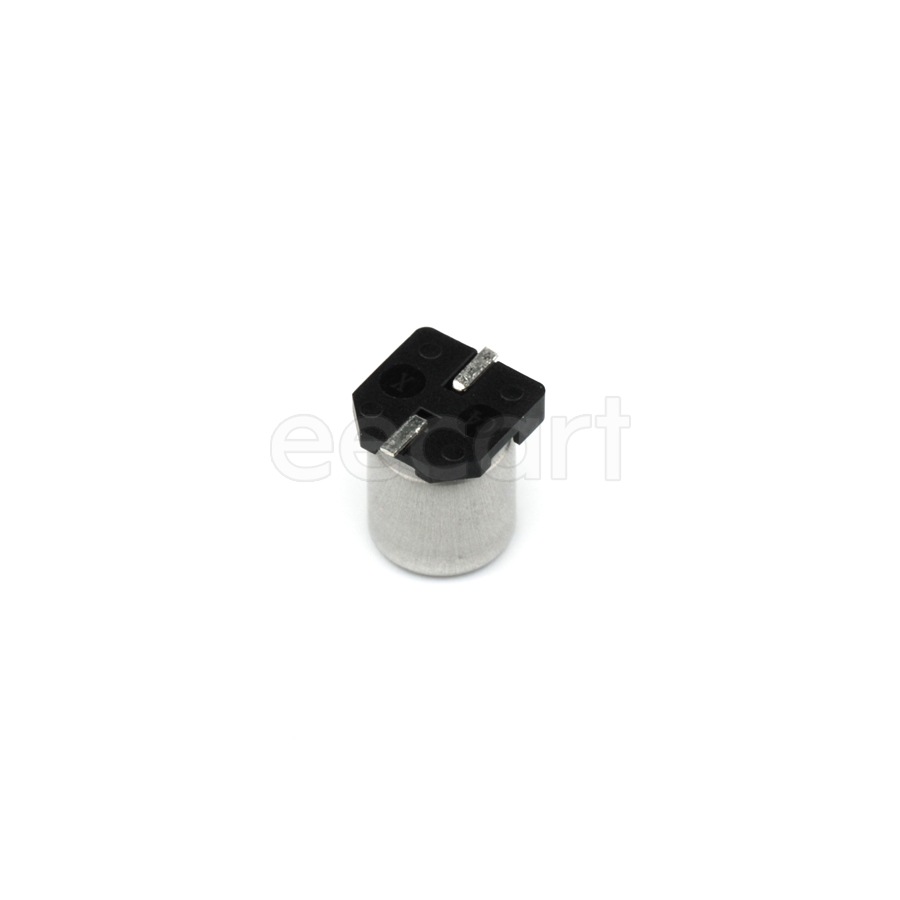

Aluminum Electrolytic Capacitors SMD,6.30mm×7.70mm SMD/SMT 100 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 109 mA |
| Height - Seated (Max) | 8 mm |
| Length | 7.7 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.14 % |
| Height | 6.6 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Ripple Current @ Low Frequency | 109 mA @ 120 Hz |
