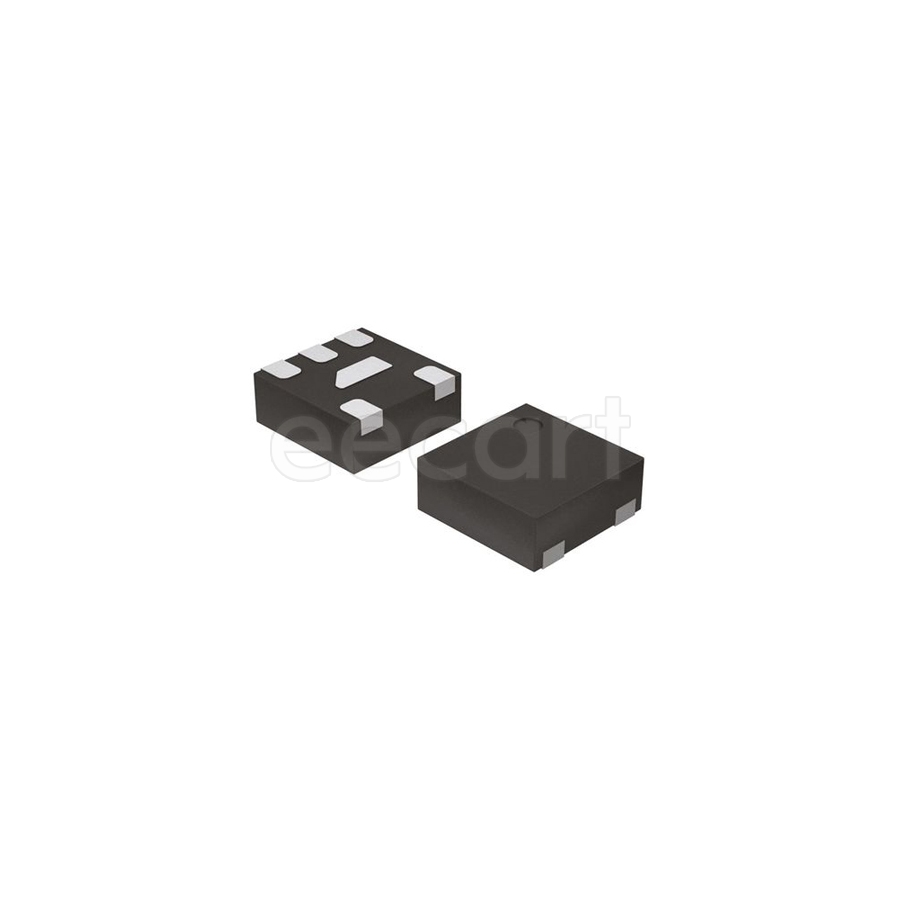

VESD05A4A-HS4-GS08
Manufacturer:
Vishay
Mfr.Part #:
VESD05A4A-HS4-GS08
Datasheet:
Description:
TVS Diodes LLP1010-6 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V Clamping Voltage:12 V Peak Pulse Power:30 W Polarity:Bidirectional, Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 15 pF |
| Length | 1.05 mm |
| Width | 1.05 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Height | 400 µm |
| Packaging | Reel |
| Depth | 1.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional, Unidirectional |
| REACH SVHC | Unknown |
| Current Rating | 2.5 A |
| Working Voltage | 5 V |
| Operating Supply Voltage | 5 V |
| Max Power Dissipation | 30 W |
| Peak Pulse Current | 2.5 A |
| Number of Channels | 4 |
| Breakdown Voltage | 6 V |
| Max Reverse Leakage Current | 100 nA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 12 V |
| Peak Pulse Power | 30 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 4 |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Breakdown Voltage | 8 V |
| Voltage ESD Contact | 15 kV |
| Voltage ESD Air Gap | 17 kV |
| Diode Capacitance | 12 pF |
