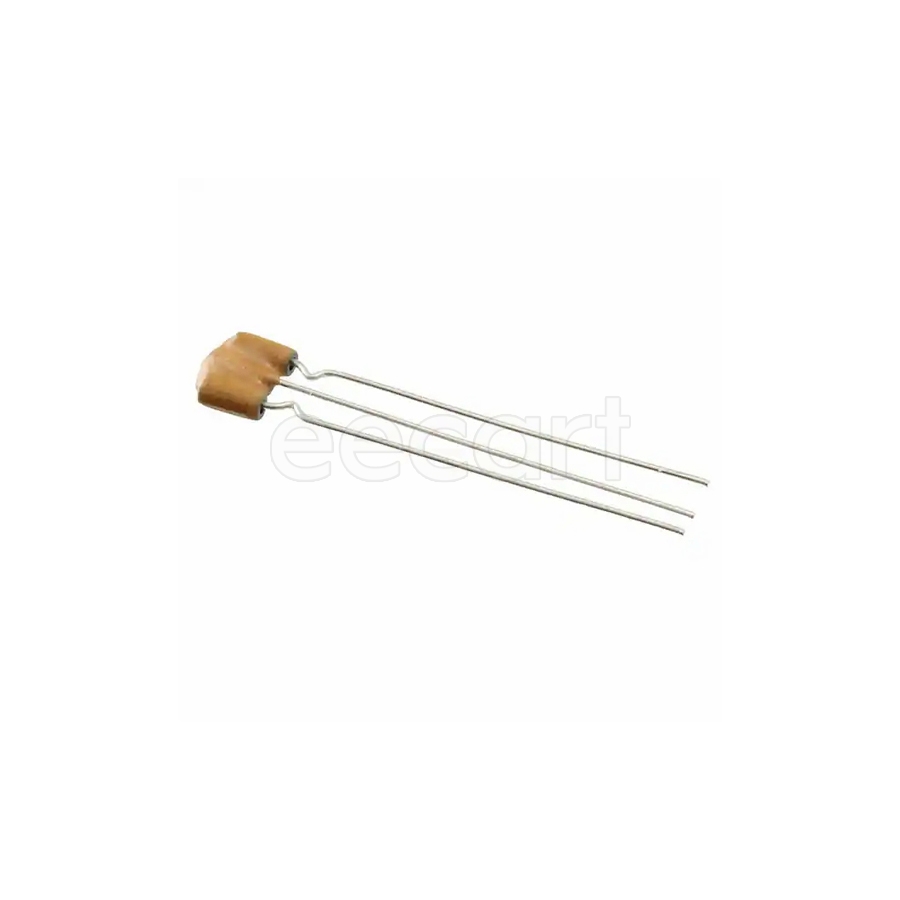

VFS9VD31B223Q55B
Manufacturer:
Murata
Mfr.Part #:
VFS9VD31B223Q55B
Datasheet:
Description:
EMI / RFI Filters SIP-3 Through Hole LC (T-Type) 3rd 22 nF
| Parameter | Value |
|---|---|
| Capacitance | 22 nF |
| Voltage Rating (DC) | 12 V |
| Tolerance | 20 % |
| Length | 12 mm |
| Width | 7.5 mm |
| Termination | Radial |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 12 V |
| Height | 10.5 mm |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| REACH SVHC | No SVHC |
| Lead Length | 25 mm |
| Current | 7 A |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Max Voltage Rating (DC) | 12 V |
| Number of Channels | 1 |
| Inductance | 800 nH |
| Clamping Voltage | 22 V |
| Varistor Voltage | 22 V |
| ESD Protection | No |
| Voltage Tolerance | 20 % |
| Chemistry/Technology | LC (T-Type) |
| Filter Order | 3rd |
