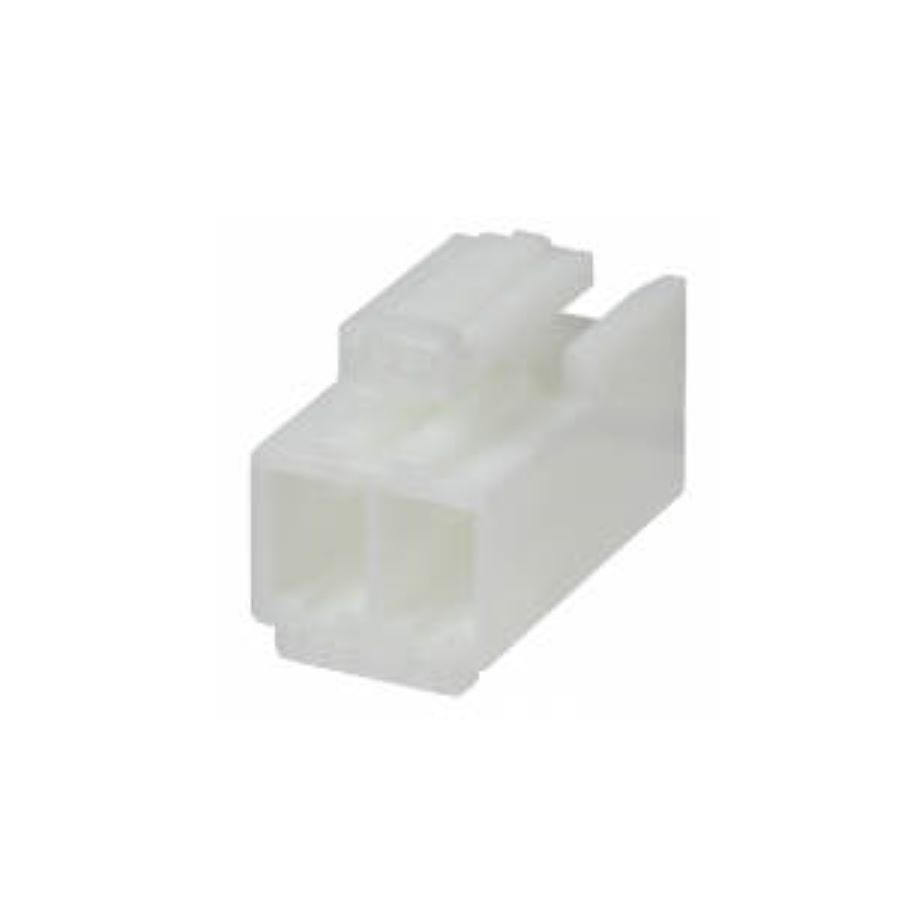

VHR-2N
Manufacturer:
JST
Mfr.Part #:
VHR-2N
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:2 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Color | White |
| Gender | Female |
| Number of Contacts | 2 |
| Mounting Style | PCB |
| lead free status | Lead Free |
| operating temperature | -25.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Receptacle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 10.5 mm |
| size length | 7.86 mm |
| size height | 13.3 mm |
| voltage rating ac | 250 V |
| Housing Color | Natural |
| pin pitch | 3.96 mm |
Stock: 9633
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.04129 | $0.41290 |
| 50 | $0.03804 | $1.90200 |
| 100 | $0.03505 | $3.50500 |
| 500 | $0.03211 | $16.05500 |
| 1000 | $0.02941 | $29.41000 |
| 3000 | $0.02693 | $80.79000 |
| 5000 | $0.02659 | $132.95000 |
| 10000 | $0.02625 | $262.50000 |
