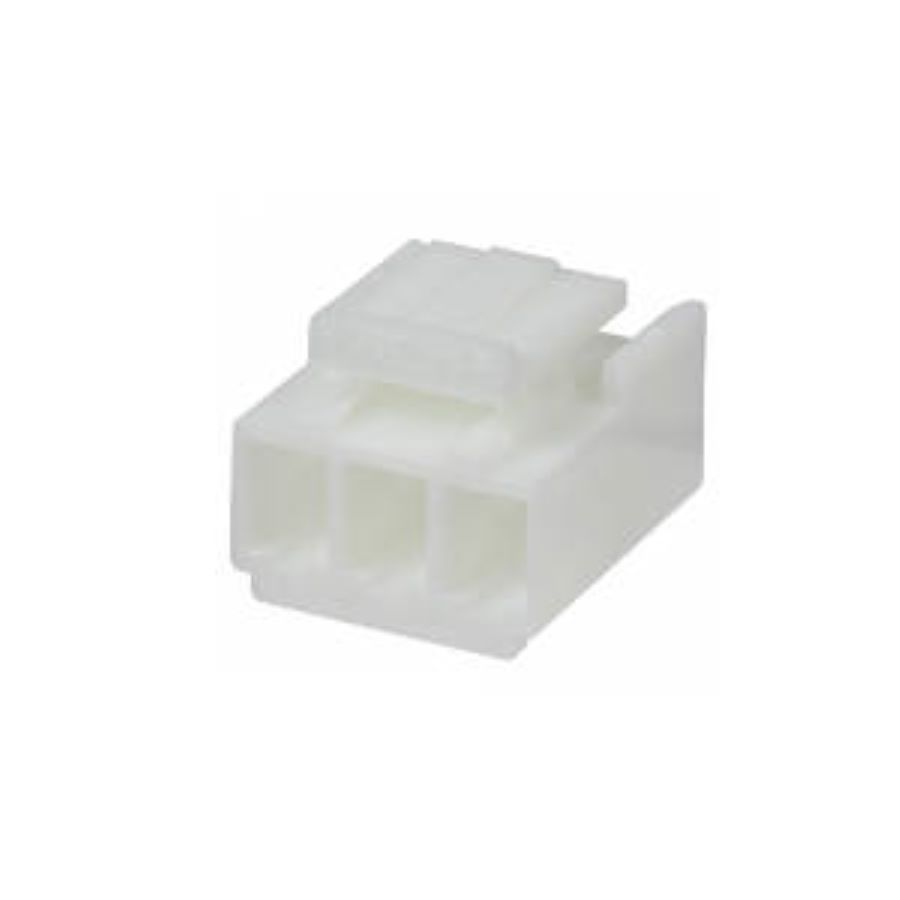

VHR-3N
Manufacturer:
JST
Mfr.Part #:
VHR-3N
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:3 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 11.82 mm |
| Width | 10.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 13.3 mm |
| Packaging | Bulk |
| Depth | 13.3 mm |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Max Current Rating | 10 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 3 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | White |
Stock: 35838
Distributors
pcbx
pcbxUnit Price$0.09830
Ext.Price$0.09830
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09830 | $0.09830 |
| 10 | $0.04915 | $0.49150 |
| 50 | $0.04543 | $2.27150 |
| 100 | $0.04200 | $4.20000 |
| 500 | $0.03716 | $18.58000 |
| 1000 | $0.03288 | $32.88000 |
| 3000 | $0.03186 | $95.58000 |
| 5000 | $0.03087 | $154.35000 |
| 10000 | $0.02969 | $296.90000 |
