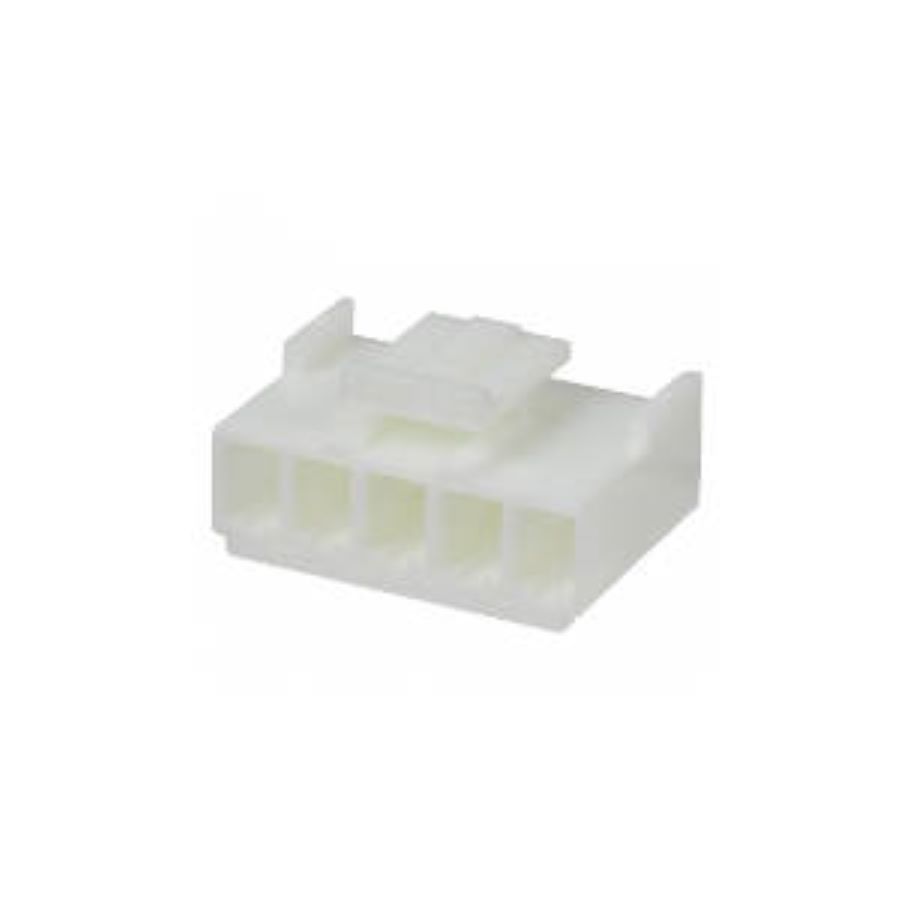

VHR-5N
Manufacturer:
JST
Mfr.Part #:
VHR-5N
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:5 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 19.74 mm |
| Width | 10.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 5 |
| Height | 13.3 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 13.3 mm |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Voltage | 250 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 3.96 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 5 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | White |
Stock: 11445
Distributors
pcbx
pcbxUnit Price$0.10156
Ext.Price$0.10156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10156 | $0.10156 |
| 10 | $0.05078 | $0.50780 |
| 50 | $0.04618 | $2.30900 |
| 100 | $0.04200 | $4.20000 |
| 500 | $0.03705 | $18.52500 |
| 1000 | $0.03269 | $32.69000 |
| 3000 | $0.03141 | $94.23000 |
| 5000 | $0.03018 | $150.90000 |
| 10000 | $0.02871 | $287.10000 |
