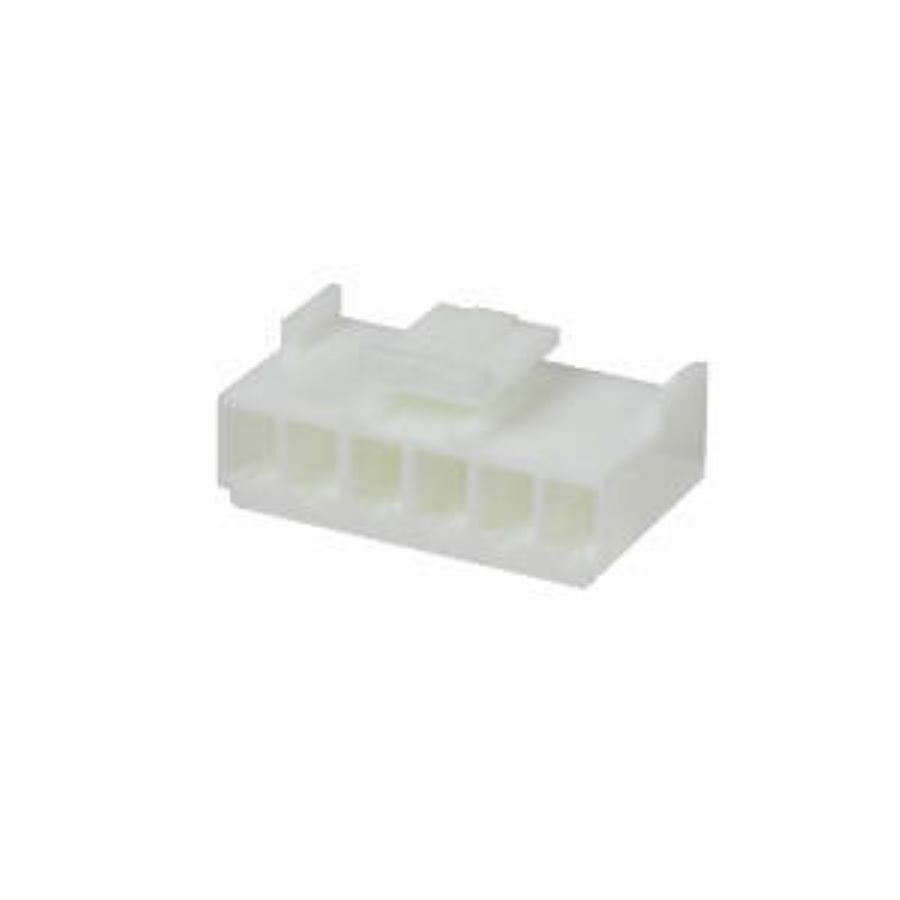

VHR-6N
Manufacturer:
JST
Mfr.Part #:
VHR-6N
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Housing Number of Positions:6 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 23.7 mm |
| Width | 10.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 6 |
| Height | 13.3 mm |
| Packaging | Bulk |
| Depth | 13.3 mm |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.96 mm |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Max Voltage Rating (DC) | 250 V |
| Orientation | Straight |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 6 |
| Connector Type | Housing |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | White |
| Mating Post Length | |
| Termination Post Length |
Stock: 3257
Distributors
pcbx
pcbxUnit Price$0.09888
Ext.Price$0.09888
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09888 | $0.09888 |
| 10 | $0.04944 | $0.49440 |
| 50 | $0.04418 | $2.20900 |
| 100 | $0.03948 | $3.94800 |
| 500 | $0.03279 | $16.39500 |
| 1000 | $0.02881 | $28.81000 |
| 3000 | $0.02735 | $82.05000 |
| 5000 | $0.02597 | $129.85000 |
| 10000 | $0.02430 | $243.00000 |
