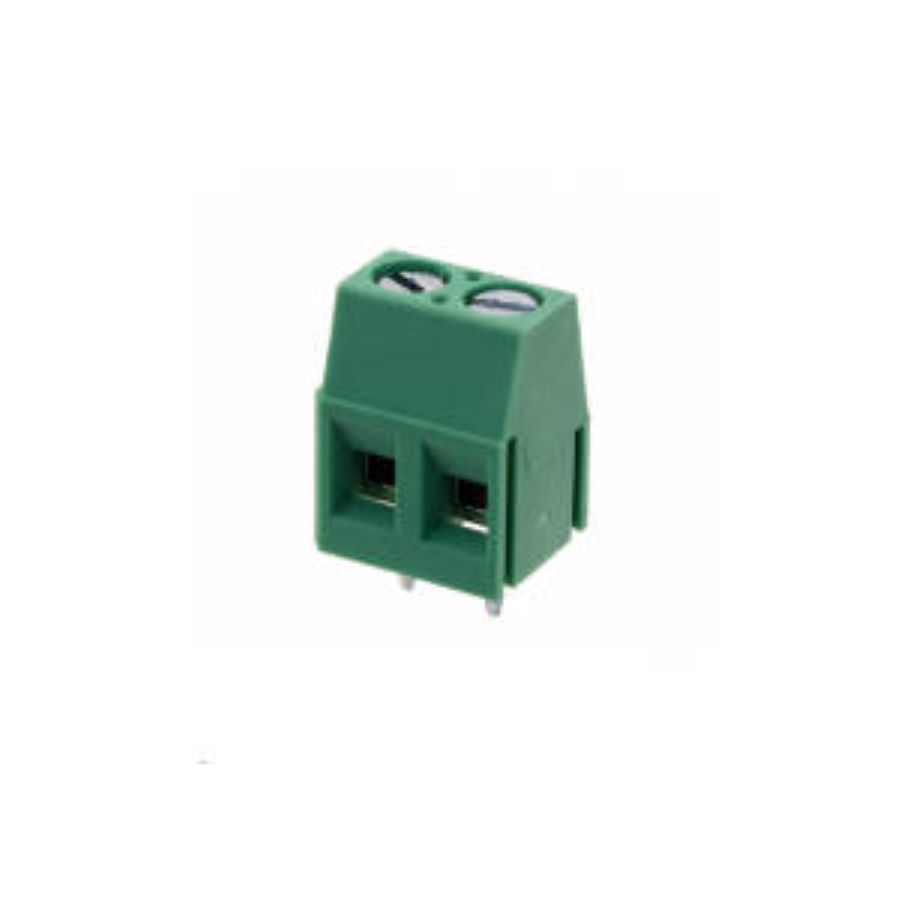

VI0221520000G
Manufacturer:
Amphenol
Mfr.Part #:
VI0221520000G
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 16 A 300 V 28 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Screw - Rising Cage Clamp |
| Max Operating Temperature | 115 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Pitch | 5.08 mm |
| Current Rating | 16 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 28 AWG to 12 AWG |
Stock: 1112
Distributors
pcbx
pcbxUnit Price$0.53792
Ext.Price$0.53792
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53792 | $0.53792 |
| 10 | $0.39417 | $3.94170 |
| 25 | $0.34312 | $8.57800 |
| 50 | $0.30935 | $15.46750 |
| 100 | $0.27987 | $27.98700 |
| 300 | $0.25296 | $75.88800 |
| 500 | $0.22863 | $114.31500 |
| 1000 | $0.21400 | $214.00000 |
| 3000 | $0.20031 | $600.93000 |
| 5000 | $0.18750 | $937.50000 |
