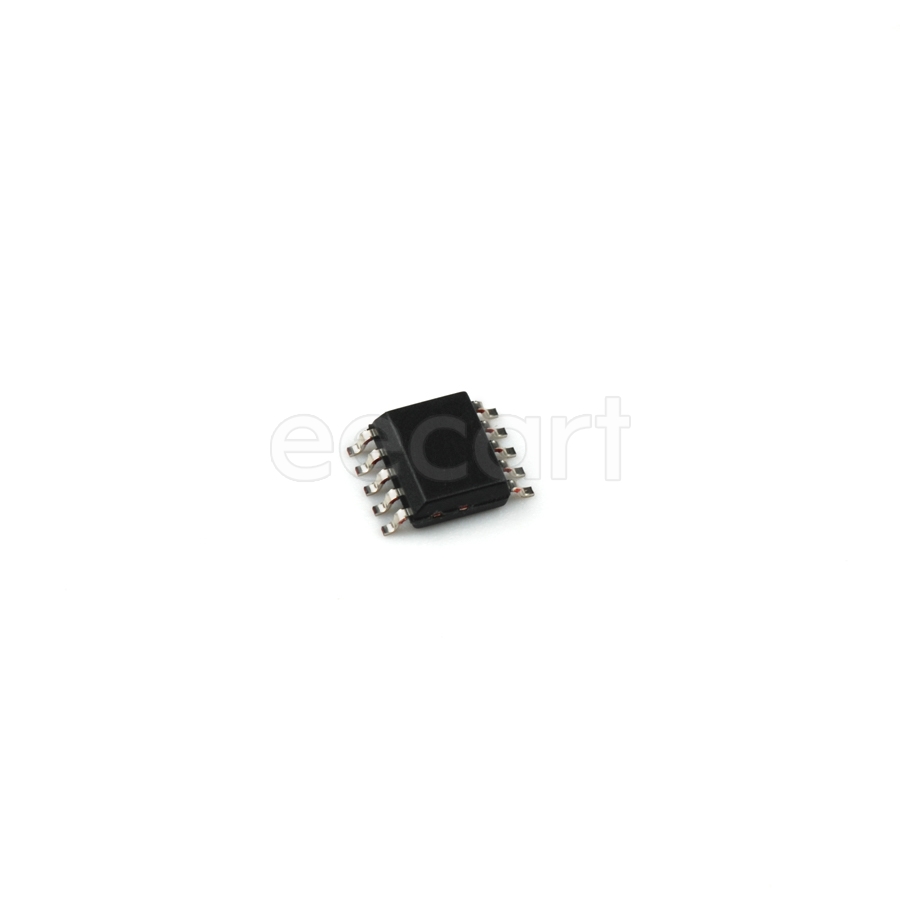

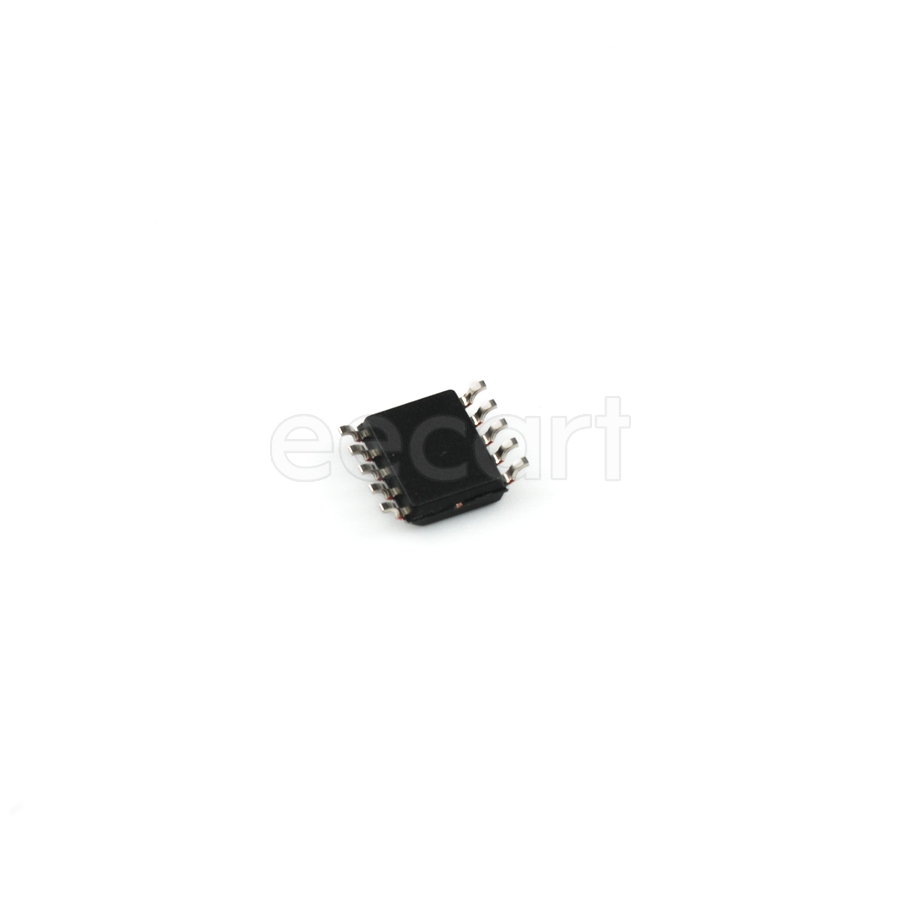

VIPER06LSTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
VIPER06LSTR
Datasheet:
Description:
AC to DC Converters SSOP-10 SMD/SMT 800 V 30 mW Flyback 80 %
| Parameter | Value |
|---|---|
| Length | 4.9 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Power Rating | 8 W |
| Height | 1.75 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 85 V |
| Output Voltage | 800 V |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 23.5 V |
| Min Supply Voltage | 11.5 V |
| Number of Channels | 1 |
| Breakdown Voltage | 800 V |
| Operating Supply Current | 1.45 mA |
| Topology | Flyback |
| Switching Frequency | 60 kHz |
| Max Input Voltage | 265 V |
| Number of Outputs | 1 |
| Output Power | 30 mW |
| Max Junction Temperature (Tj) | 150 °C |
| Duty Cycle | 80 % |
| Max Duty Cycle | 80 % |
| Isolation | Either |
| Max Input Voltage (AC) | 265 V |
| Min Input Voltage (AC) | 85 V |
Stock: 4104
Distributors
pcbx
pcbxUnit Price$0.57350
Ext.Price$0.57350
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57350 | $0.57350 |
| 10 | $0.46118 | $4.61180 |
| 25 | $0.42167 | $10.54175 |
| 50 | $0.38554 | $19.27700 |
| 100 | $0.35250 | $35.25000 |
| 300 | $0.32824 | $98.47200 |
| 500 | $0.30565 | $152.82500 |
| 1000 | $0.28751 | $287.51000 |
