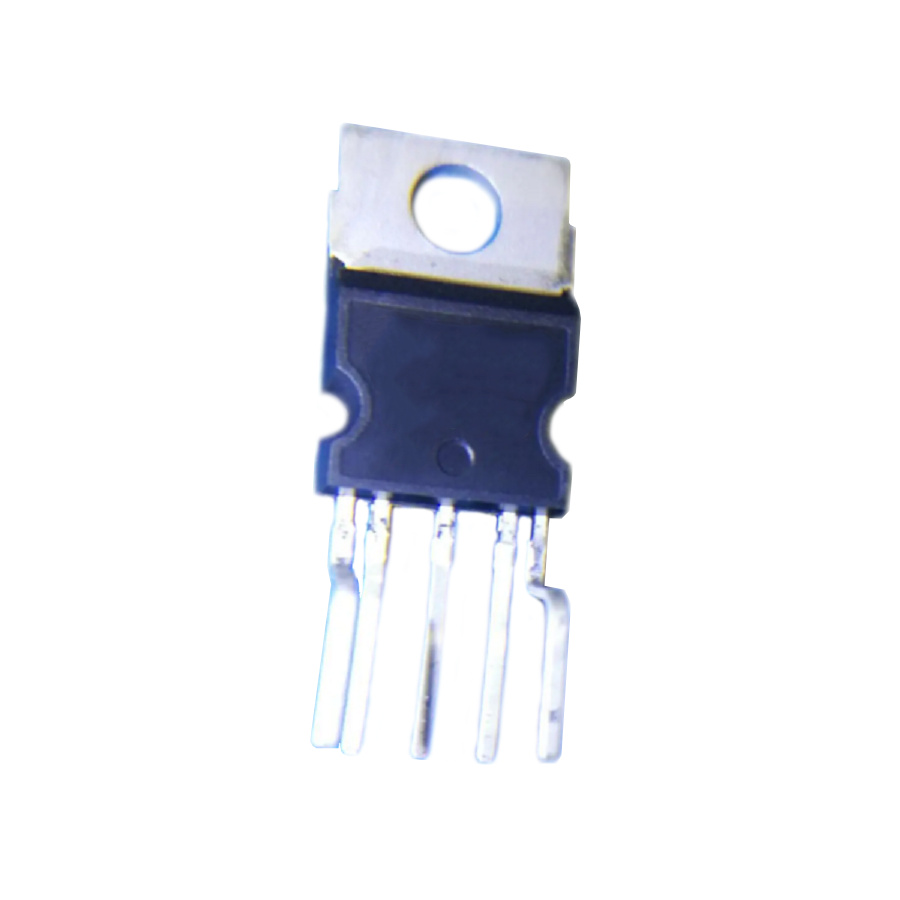

VIPER100A-E
Manufacturer:
STMicroelectronics
Mfr.Part #:
VIPER100A-E
Datasheet:
Description:
AC to DC Converters Pentawatt-5 HV Through Hole 4.5 V 50 W, 100 W Flyback 50 %
| Parameter | Value |
|---|---|
| Length | 10.4 mm |
| Width | 4.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 5 |
| Height | 9.2 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | Pentawatt HV-P023H3 |
| REACH SVHC | No SVHC |
| Weight | 4.535924 g |
| Features | EN, Frequency Control, Soft Start |
| Frequency | 200 kHz |
| Output Current | 3 A |
| Output Voltage | 4.5 V |
| Max Power Dissipation | 82 W |
| Max Supply Voltage | 15 V |
| Min Supply Voltage | 0 V |
| Power Dissipation | 82 W |
| Breakdown Voltage | 700 V |
| Operating Supply Current | 12 mA |
| Quiescent Current | 12 mA |
| Max Supply Current | 16 mA |
| Topology | Flyback |
| Switching Frequency | 200 kHz |
| Max Input Voltage | 230 V |
| Number of Outputs | 1 |
| Rise Time | 50 ns |
| Output Power | 50 W, 100 W |
| Nominal Input Voltage | 13 V |
| Duty Cycle | 50 % |
| Max Duty Cycle | 12 % |
| Isolation | Isolated |
| Max Input Voltage (AC) | 230 V |
