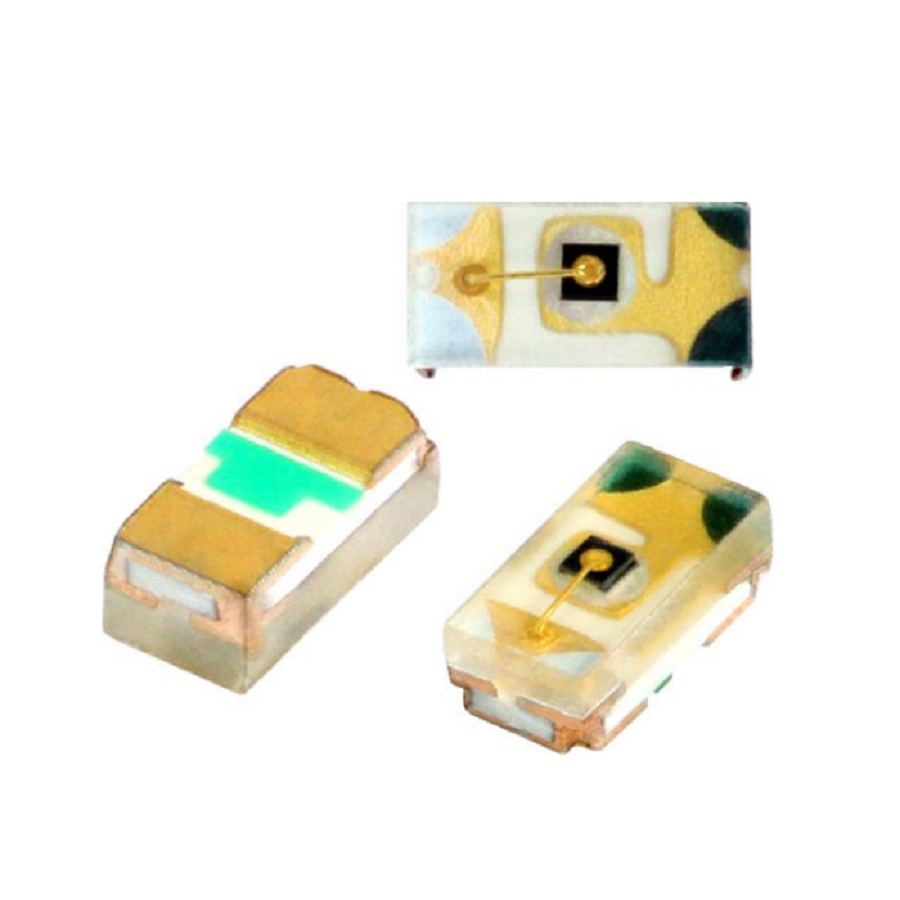

VLMB1500-GS08
Manufacturer:
Vishay
Mfr.Part #:
VLMB1500-GS08
Datasheet:
Description:
LEDs 0402(1005 Metric) SMD/SMT Blue 470 nm 5 mA 3.15 V
| Parameter | Value |
|---|---|
| Length | 1 mm |
| Width | 500 µm |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -30 °C |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Number of Pins | 2 |
| Power Rating | 75 mW |
| Height | 350 µm |
| Packaging | Reel |
| Depth | 500 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Forward Current | 5 mA |
| Forward Voltage | 3.15 V |
| Max Power Dissipation | 76 mW |
| Color | Blue |
| Illumination Color | Blue |
| Lens Style | Rectangular |
| Luminous Intensity | 45 mcd |
| Power Dissipation | 76 mW |
| Ambient Temperature Range High | 80 °C |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 472 nm |
| Lens Transparency | Non-Diffused |
| Lens Color | Clear |
| Dominant Wavelength/CCT (K) | 470 nm |
| Reverse Voltage | 5 V |
| Test Current | 5 mA |
| Schedule B | 8541402000 |
Stock: 1242
Distributors
pcbx
pcbxUnit Price$0.18758
Ext.Price$0.18758
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18758 | $0.18758 |
| 10 | $0.16723 | $1.67230 |
| 50 | $0.14909 | $7.45450 |
| 100 | $0.12985 | $12.98500 |
| 500 | $0.11310 | $56.55000 |
| 1000 | $0.10396 | $103.96000 |
| 3000 | $0.09555 | $286.65000 |
| 5000 | $0.08996 | $449.80000 |
