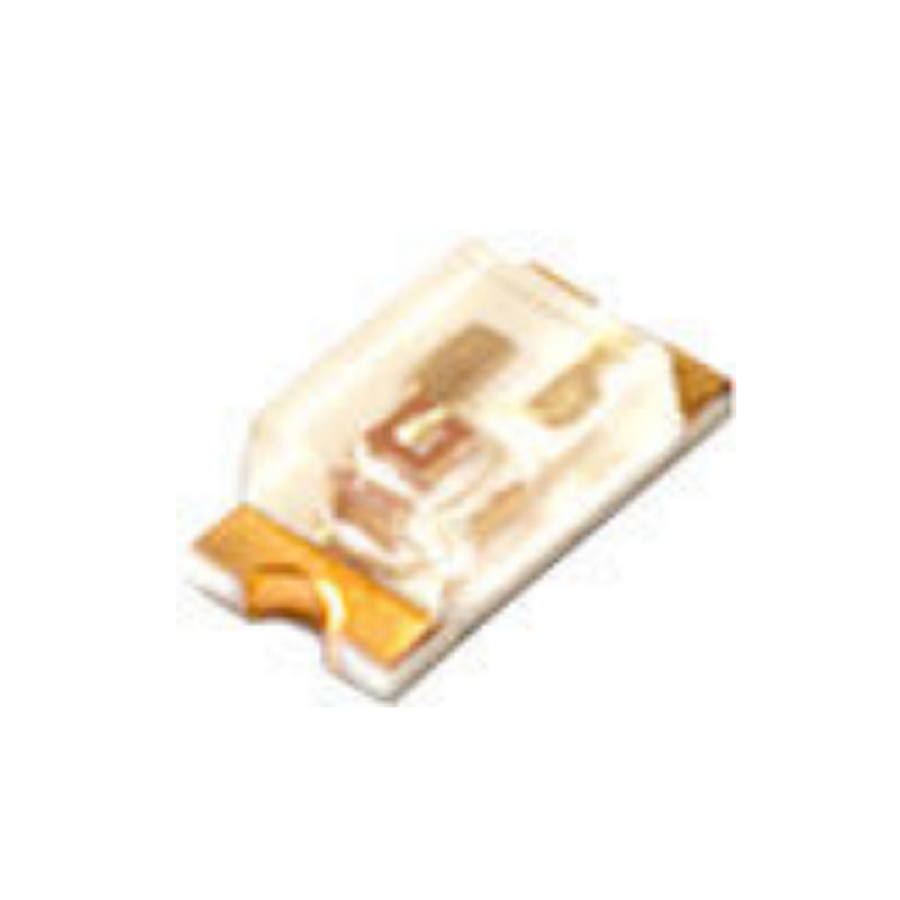

VLMS1300-GS08
Manufacturer:
Vishay
Mfr.Part #:
VLMS1300-GS08
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Red 631 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Power Rating | 75 mW |
| Height | 800 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Max Power Dissipation | 75 mW |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Clear, Rectangular |
| Luminous Intensity | 54 mcd |
| Power Dissipation | 75 mW |
| Ambient Temperature Range High | 85 °C |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 631 nm |
| Lens Transparency | Non-Diffused |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 631 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 9332
Distributors
pcbx
pcbxUnit Price$0.07219
Ext.Price$0.07219
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07219 | $0.07219 |
| 10 | $0.06378 | $0.63780 |
| 50 | $0.05635 | $2.81750 |
| 100 | $0.04915 | $4.91500 |
| 500 | $0.04287 | $21.43500 |
| 1000 | $0.04063 | $40.63000 |
| 3000 | $0.03851 | $115.53000 |
| 5000 | $0.03606 | $180.30000 |
