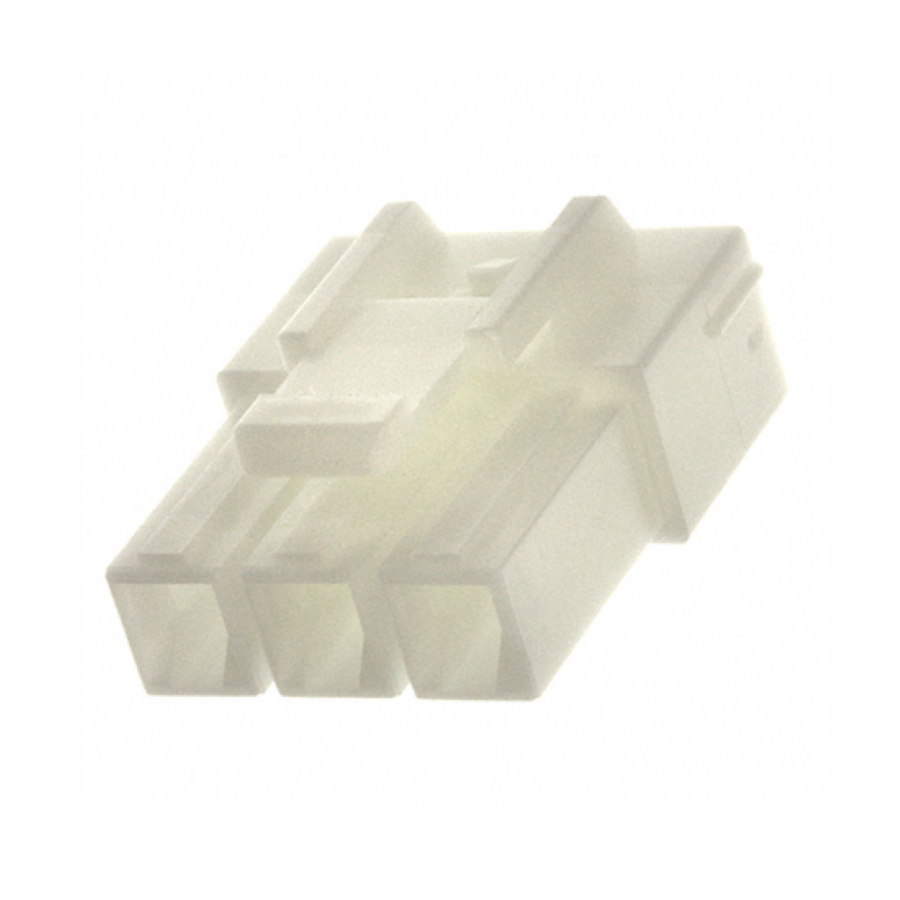

VLP-06V
Manufacturer:
JST
Mfr.Part #:
VLP-06V
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Plug, Socket Number of Positions:6 Pitch:6.1976 mm
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Width | 19.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 6 |
| Height | 18.2 mm |
| Packaging | Bulk |
| Depth | 24 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Tin |
| Pitch | 6.1976 mm |
| Current Rating | 20 A |
| Max Current Rating | 20 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Plug, Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 8.2804 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | White |
