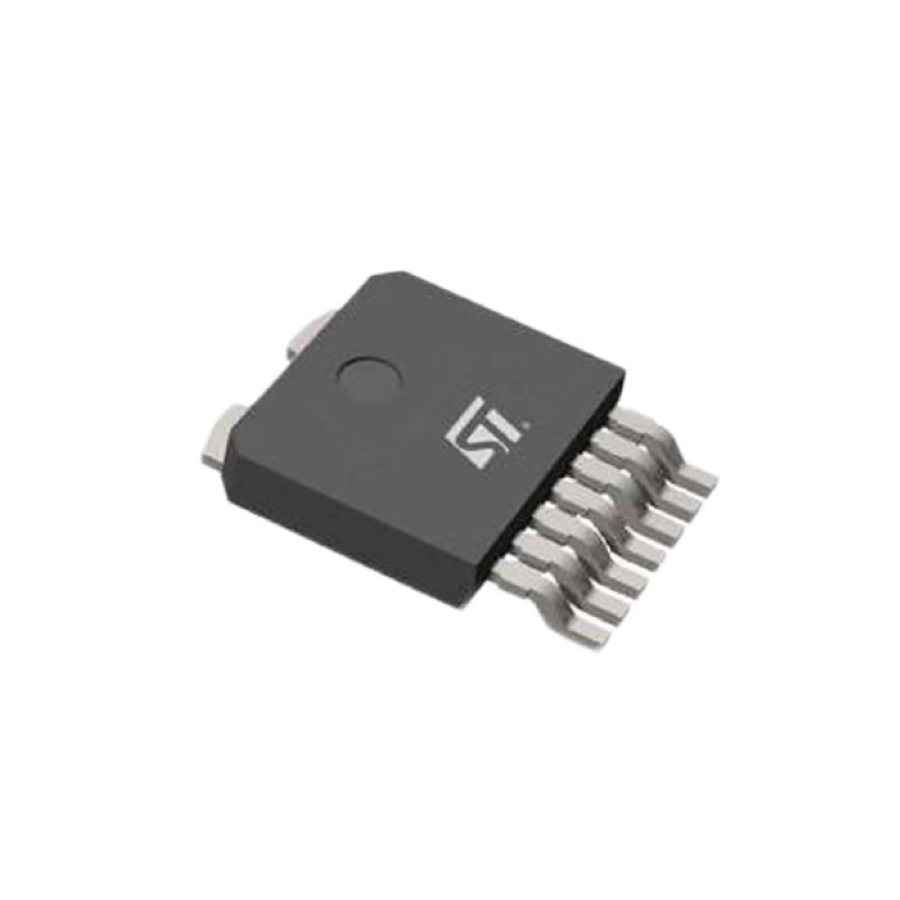

VN7003AHTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
VN7003AHTR
Datasheet:
Description:
Gate Drivers Octapak-7 SMD/SMT High Side
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.55 mm |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Manufacturer Package Identifier | Octapak-GAPGCFT00665 |
| Type | High Side |
| Output Current | 80 A |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 4 V |
| Turn-On Delay Time | 50 µs |
| Turn-Off Delay Time | 60 µs |
| Number of Outputs | 1 |
| Nominal Supply Current | 4 mA |
| Nominal Input Voltage | 13 V |
| Number of Drivers | 1 |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8542390000 |
| Configuration | High Side |
Stock: 3327
Distributors
pcbx
pcbxUnit Price$2.62207
Ext.Price$2.62207
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.62207 | $2.62207 |
| 10 | $1.99027 | $19.90270 |
| 25 | $1.82699 | $45.67475 |
| 50 | $1.73714 | $86.85700 |
| 100 | $1.65173 | $165.17300 |
| 300 | $1.58497 | $475.49100 |
| 500 | $1.52092 | $760.46000 |
| 1000 | $1.47732 | $1477.32000 |
