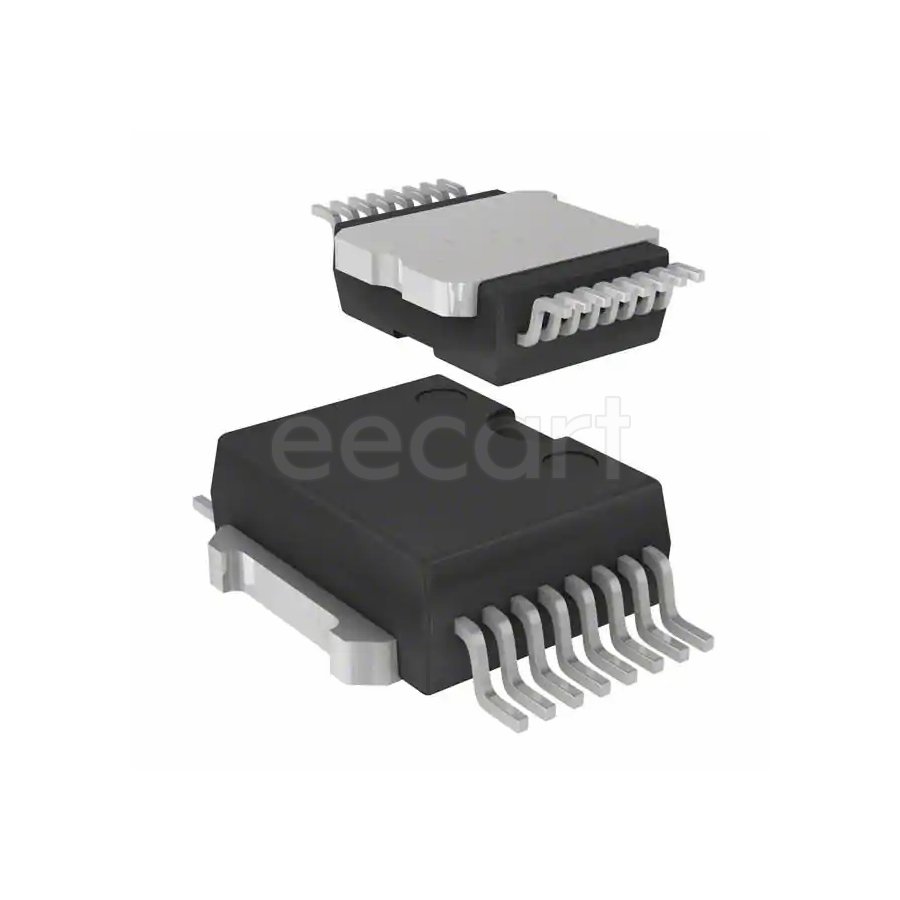

VND5T016ASPTR-E
Manufacturer:
STMicroelectronics
Mfr.Part #:
VND5T016ASPTR-E
Datasheet:
Description:
Hot Swap Controllers PowerSO-16 SMD/SMT number of channels:2 High Side
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 3.6 mm |
| Manufacturer Package Identifier | PowerSO16-P013Q |
| Interface | On/Off |
| Output Current | 45 A |
| Operating Supply Voltage | 24 V |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 8 V |
| Max Output Current | 45 A |
| Number of Channels | 2 |
| Turn-On Delay Time | 50 µs |
| Turn-Off Delay Time | 45 µs |
| Operating Supply Current | 4.5 mA |
| Max Supply Current | 6.5 mA |
| Output Configuration | High Side |
| Number of Outputs | 2 |
| Nominal Supply Current | 4.5 mA |
| Nominal Input Voltage | 24 V |
| Number of Drivers | 2 |
| Max Junction Temperature (Tj) | 150 °C |
| Fault Protection | Over Temperature, Over Voltage |
| On-State Resistance | 16 mΩ |
| RoHS | Compliant |
| Packaging | Reel |
| Type | High Side |
Stock: 547
Distributors
pcbx
pcbxUnit Price$4.76918
Ext.Price$4.76918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.76918 | $4.76918 |
| 10 | $4.05744 | $40.57440 |
| 25 | $3.76466 | $94.11650 |
| 50 | $3.49301 | $174.65050 |
| 100 | $3.24096 | $324.09600 |
| 300 | $3.14132 | $942.39600 |
| 500 | $3.04474 | $1522.37000 |
| 1000 | $2.95113 | $2951.13000 |
