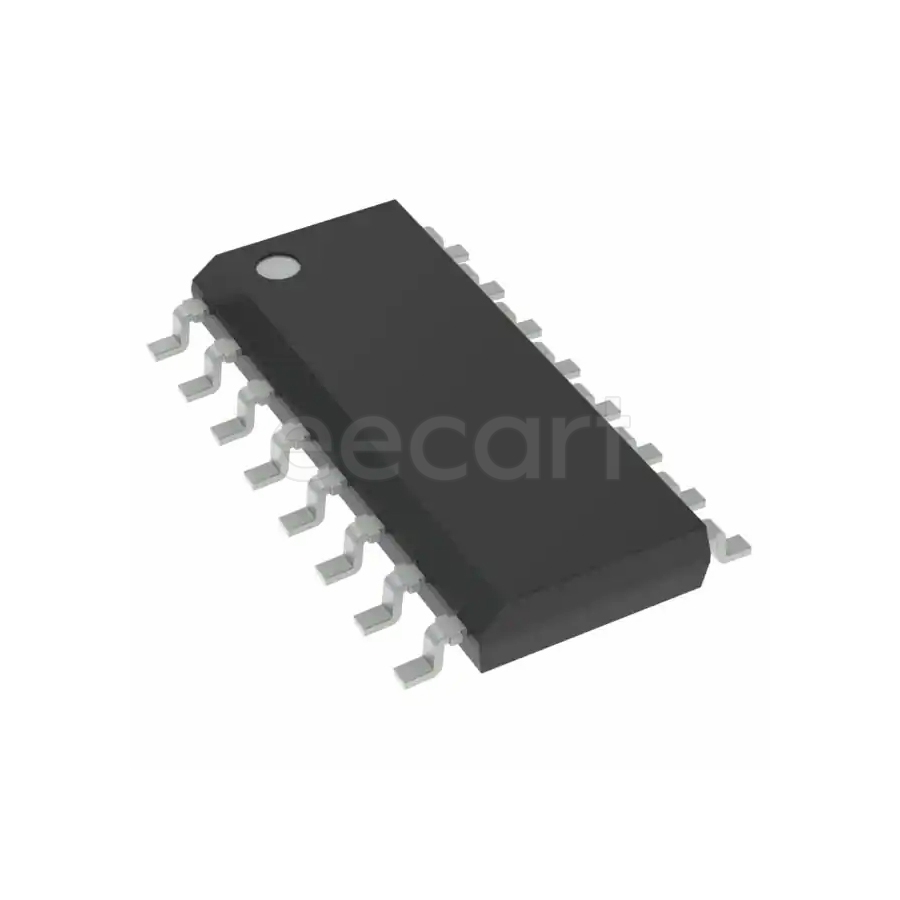

VNH7100BASTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
VNH7100BASTR
Datasheet:
Description:
Motor Drivers SOIC-16 SMD/SMT PWM Load voltage:4 V to 28 V Half Bridge
| Parameter | Value |
|---|---|
| Output Current | 12 A |
| Schedule B | 8542390000 |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Operating Supply Current | 3.5 mA |
| Operating Supply Voltage | 4 V to 28 V |
| Output Configuration | Half Bridge |
| RoHS | Compliant |
| Packaging | Reel |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 4 V |
| Interface | PWM |
| Load Voltage | 4 V to 28 V |
| Motor Type - AC, DC | Brushed DC |
| Applications | Automotive |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Chemistry/Technology | Power MOSFET |
Stock: 360
Distributors
pcbx
pcbxUnit Price$2.66141
Ext.Price$2.66141
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.66141 | $2.66141 |
| 10 | $2.25197 | $22.51970 |
| 25 | $2.01639 | $50.40975 |
| 50 | $1.80546 | $90.27300 |
| 100 | $1.61660 | $161.66000 |
| 300 | $1.55571 | $466.71300 |
| 500 | $1.49710 | $748.55000 |
| 1000 | $1.44501 | $1445.01000 |
