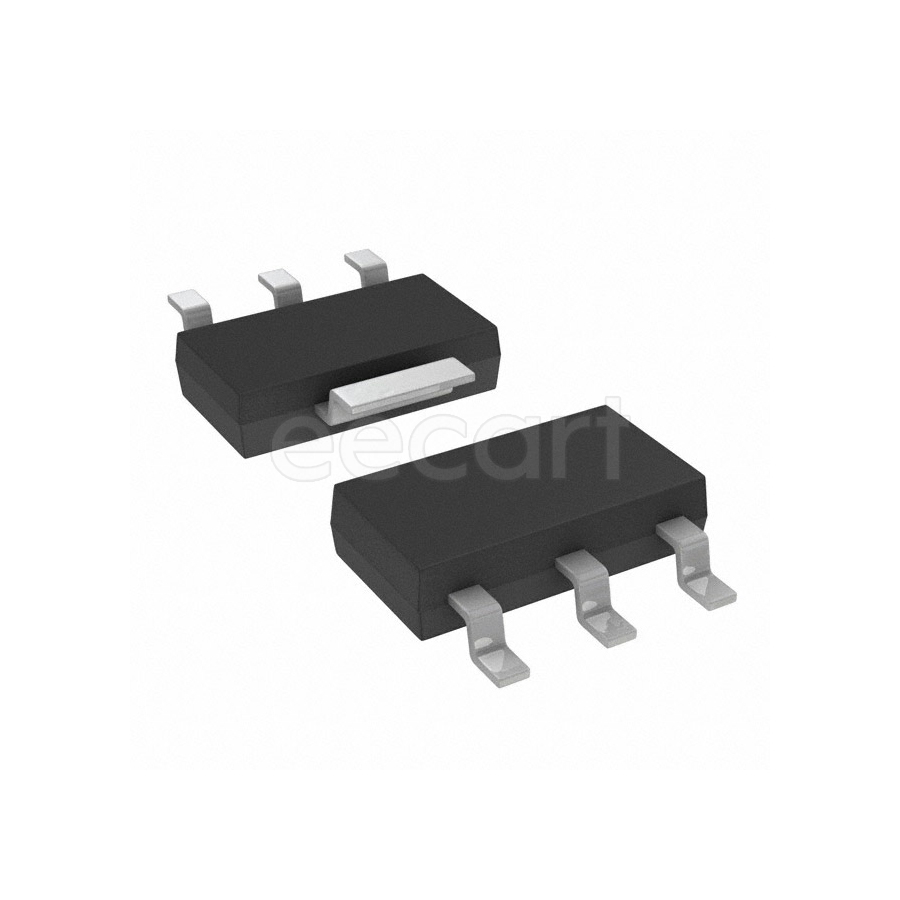

VNN7NV04PTR-E
Manufacturer:
STMicroelectronics
Mfr.Part #:
VNN7NV04PTR-E
Datasheet:
Description:
Gate Drivers SOT-223-3 SMD/SMT Low Side N-Channel
| Parameter | Value |
|---|---|
| Length | 6.7 mm |
| Width | 3.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 1.8 mm |
| Radiation Hardening | No |
| Interface | On/Off |
| Output Current | 6 A |
| Output Voltage | 36 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 7 W |
| Power Dissipation | 7 W |
| Max Output Current | 6 A |
| Number of Channels | 1 |
| Continuous Drain Current (ID) | 30 µA |
| Output Configuration | Low Side |
| Number of Outputs | 1 |
| Fall Time | 350 ns |
| Rise Time | 470 ns |
| Nominal Supply Current | 100 µA |
| Drain to Source Resistance | 60 mΩ |
| Fault Protection | Over Temperature, Over Voltage |
| Drain to Source Breakdown Voltage (Vds) | 45 V |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Drivers | 1 |
| Channel Type | N-Channel |
| Configuration | Low Side |
Stock: 233
Distributors
pcbx
pcbxUnit Price$1.14384
Ext.Price$1.14384
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.14384 | $1.14384 |
| 10 | $0.96787 | $9.67870 |
| 25 | $0.89723 | $22.43075 |
| 50 | $0.83175 | $41.58750 |
| 100 | $0.77105 | $77.10500 |
| 300 | $0.74611 | $223.83300 |
| 500 | $0.72197 | $360.98500 |
| 1000 | $0.69898 | $698.98000 |
