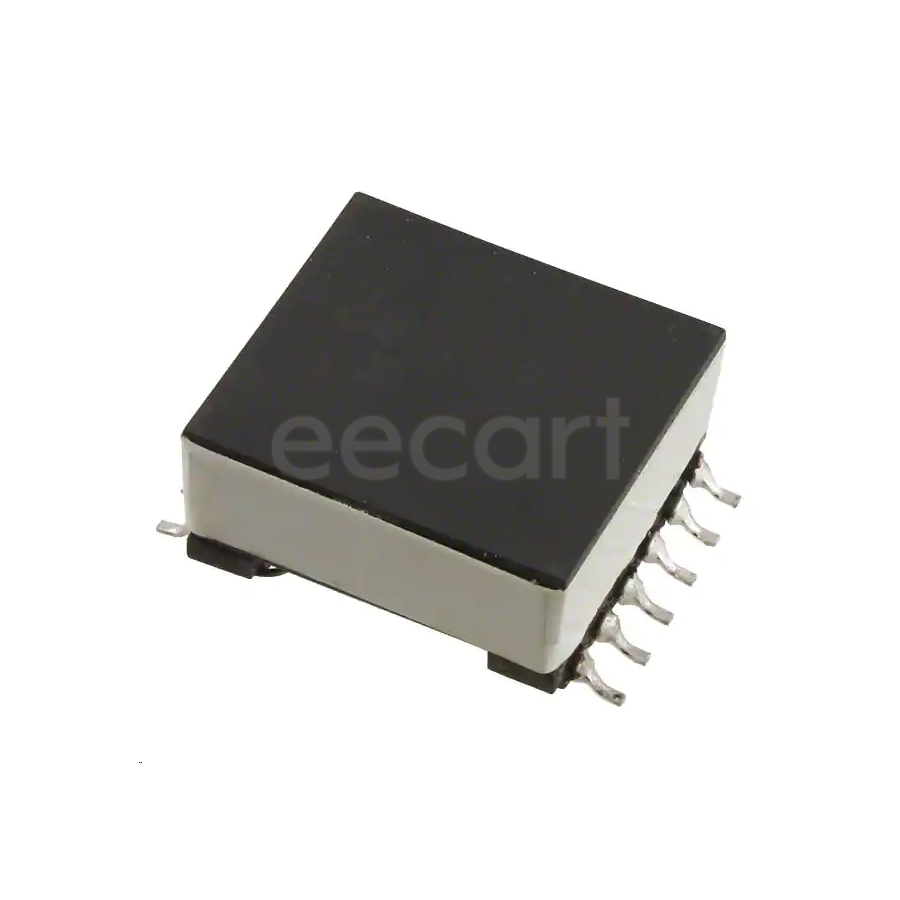

VP5-0067-R
Manufacturer:
Eaton
Mfr.Part #:
VP5-0067-R
Datasheet:
Description:
Fixed Inductors 28.50mmL×21.00mmW×10.80mmH SMD/SMT 4.3 µH 20 % 2.08 A 47 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 10.8 mm |
| Length | 21 mm |
| Width | 21 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.795 mm |
| Packaging | Bulk |
| Depth | 28.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 13.607771 g |
| Type | Wirewound |
| Current | 2.08 A |
| Current Rating | 2.08 A |
| DC Resistance (DCR) | 47 mΩ |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 4.3 µH |
| Core Material | Ferrite |
| Turns Ratio | 1:1 |
| Max DC Current | 3.63 A |
| Inductance - Series | 154.8 µH |
| Number of Coils | 6 |
| Inductance - Parallel | 4.3 µH |
Stock: 176
Distributors
pcbx
pcbxUnit Price$8.10367
Ext.Price$8.10367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.10367 | $8.10367 |
| 10 | $7.50653 | $75.06530 |
| 25 | $6.95339 | $173.83475 |
| 50 | $6.44101 | $322.05050 |
| 100 | $5.96638 | $596.63800 |
| 300 | $5.52673 | $1658.01900 |
| 500 | $5.11948 | $2559.74000 |
| 1000 | $4.74233 | $4742.33000 |
