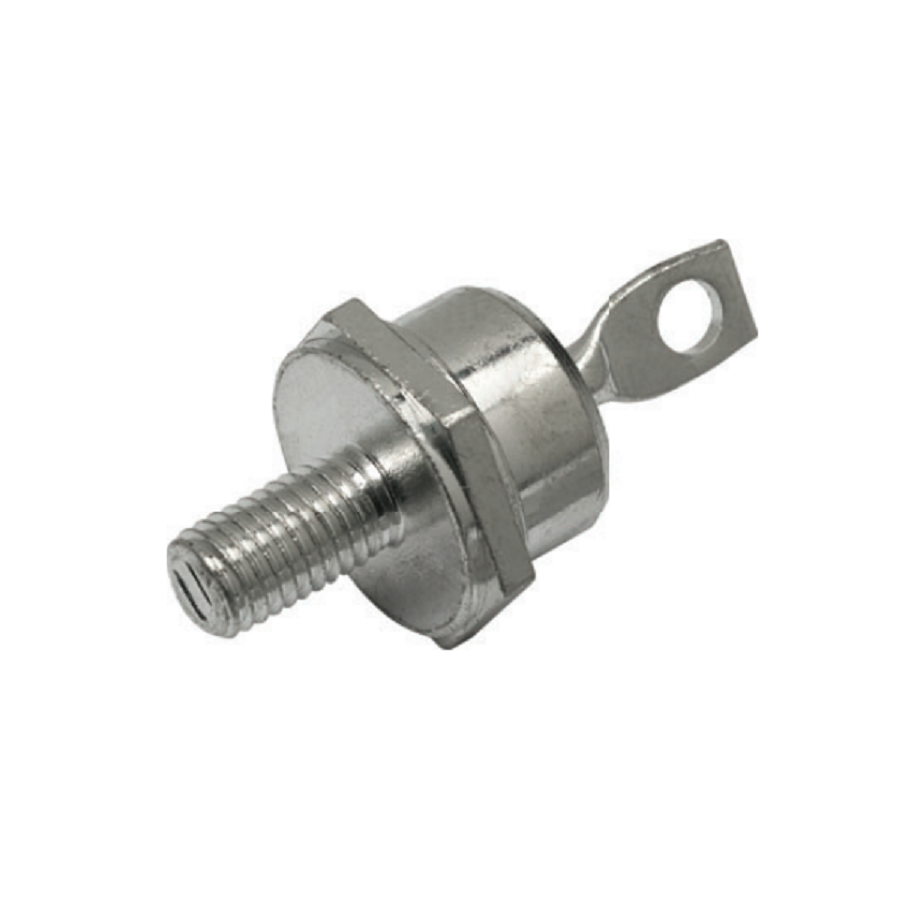

VS-1N1183A
Manufacturer:
Vishay
Mfr.Part #:
VS-1N1183A
Datasheet:
Description:
Rectifier Diodes DO-203AB Chassis, Stud Standard Recovery Rectifiers Single Forward Current:40 A Forward Voltage:1.3 V Reverse Voltage:50 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 190 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 36.9 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Standard Recovery Rectifiers |
| Output Current | 1.4 A |
| Forward Current | 40 A |
| Forward Voltage | 1.3 V |
| Average Rectified Current | 40 A |
| Max Reverse Voltage (DC) | 50 V |
| Max Repetitive Reverse Voltage (Vrrm) | 50 V |
| Element Configuration | Single |
| Max Surge Current | 800 A |
| Natural Thermal Resistance | 0.25 °C/W |
| Forward Surge Current (Ifsm) | 910 A |
| Reverse Voltage | 50 V |
| Peak Non-Repetitive Surge Current | 800 A |
| Reverse Current | 2.5 mA |
| Schedule B | 8541100080 |
Stock: 123
Distributors
pcbx
pcbxUnit Price$6.70863
Ext.Price$6.70863
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.70863 | $6.70863 |
| 10 | $5.70153 | $57.01530 |
| 25 | $5.39749 | $134.93725 |
| 50 | $5.10966 | $255.48300 |
| 100 | $4.83719 | $483.71900 |
| 300 | $4.70722 | $1412.16600 |
| 500 | $4.58071 | $2290.35500 |
| 1000 | $4.13700 | $4137.00000 |
